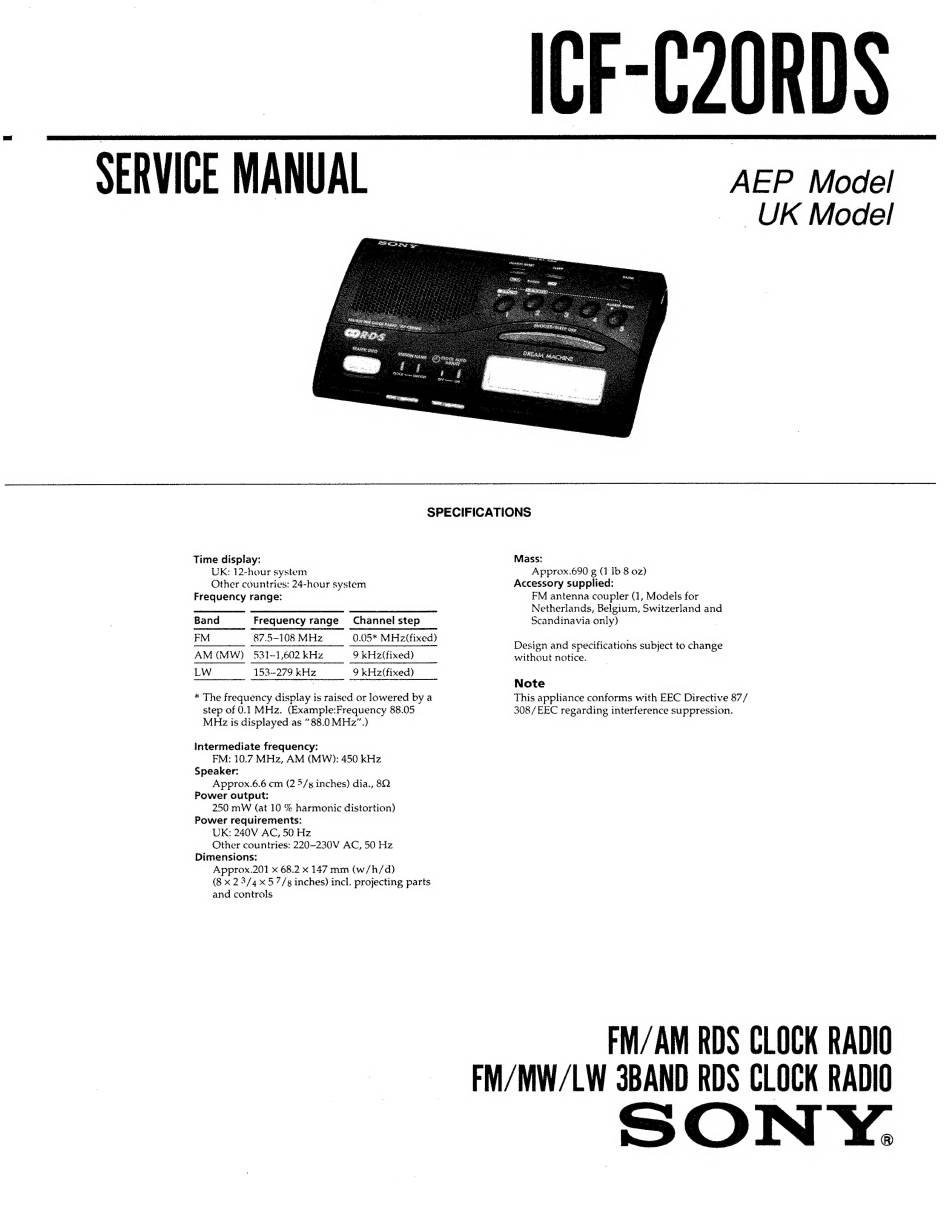

Sony ICF-C20RDS Service Manual

SERVICE MANUAL
ICF-C2ORDS
AEP Model
UK Model
SPECIFICATIONS
Time display:
UK: 12-hour system
Other countries: 24-hour system
Frequency range:
Band Frequency range Channel step
FM 87.5-108 MHz 0.05* MH z(fixed)
AM (MW) 531-1,602 kHz 9 kHz(fixed)
LW 153-279 kHz 9 kHz(fixed)
* The frequency display is raised or lowered by a
step of 0.1 MHz. (Example:Frequency 88.05
MHz is displayed as "88.0 MHz".)
intermediate frequency:
FM: 10.7 MHz, AM (MW): 450 kHz
Speaker:
Approx.6.6 cm (2 5/3 inches) dia., 8Q
Power output:
250 mW (at 10 % harmonic distortion)
Power requirements:
UK: 240V AC, 50 Hz
Other countries: 220-—230V AC, 50 Hz
Dimensions:
Approx.201 x 68.2 x 147 mm (w/h/d)
(8 x 23/4 x5 7/g inches) incl. projecting parts
and controls
Mass:
Approx.690 g (1 ib 8 oz)
Accessory supplied:
FM antenna coupler (1, Models for
Netherlands, Belgium, Switzerland and
Scandinavia only)
Design and specifications subject to change
without notice.
Note
This appliance conforms with EEC Directive 87/
308/EEC regarding interference suppression.
FM/AM RDS CLOCK RADIO
FM/MW/LW 3BAND RDS CLOCK RADIO
SONY.
