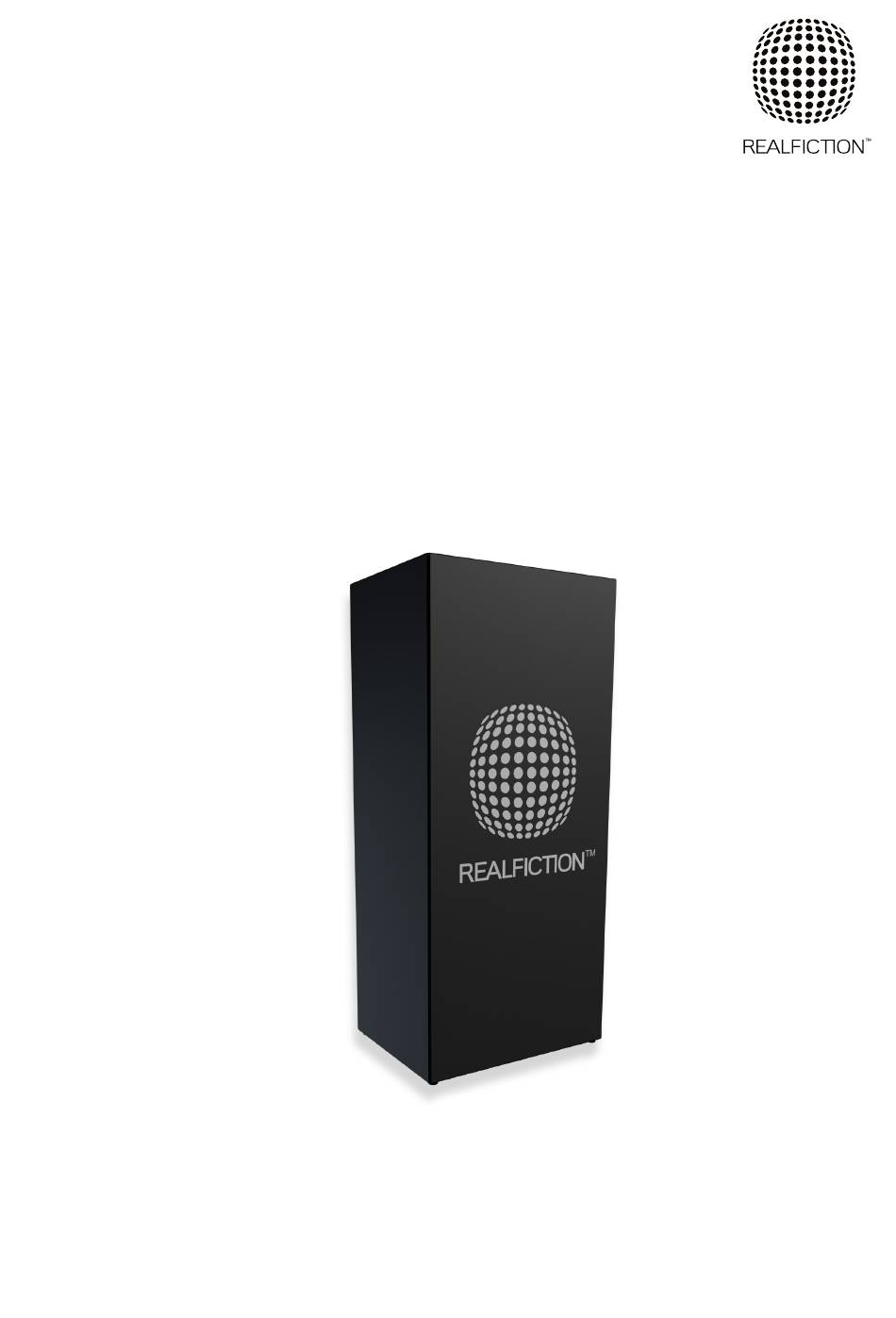

DREAMOC HD3 / HD3.2
SMART FRAME – ASSEMBLY GUIDE
VERSION 1.0
It is important to read this assembly guide before using the Dreamoc HD3 stand, and to follow advices and instructions
on safety, operation and general use to get the best possible experience with your Dreamoc.
The Dreamoc HD3 is designed to showcase products and other objects in combination with free floating 3D video
animations. Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Realfiction DREAMOC HD3
Summary of Contents for Realfiction DREAMOC HD3
- Page 1 SMART FRAME – ASSEMBLY GUIDE VERSION 1.0 It is important to read this assembly guide before using the Dreamoc HD3 stand, and to follow advices and instructions on safety, operation and general use to get the best possible experience with your Dreamoc.
-
Page 2: Package Contains
Package contains 12x aluminum profiles (black) 1x MDF shelve 1x Unbrako key 1x Fork spanner 2x Safety brackets 2x Finger screws 2x Spring nut Assembling the stand 1. Start by sorting the 4 corner profiles in front and back variants. Then sort the 8 cross profiles in 4 top and 4 bottom variants. - Page 3 3. When connecting the aluminum profiles, make sure that the groove on the cross profiles align per- fectly with the groove in the corner profile. Tighten the screws to lock the profiles together. 4. When all 4 profiles are securely locked together, turn the frame around, so the slanted corners are now facing towards the floor.
- Page 4 OPTIONAL: Attaching the optional Interactive Touchscreen IMPORTANT: To mount the optional Interactive Touchscreen on the HD3 smart frame stand, you will need the Vesa Mount. 1. The Vesa Mount should be attached to the front top cross profile. So, start by loosening and re- moving this cross profile.
- Page 5 Placement The Dreamoc HD3 Smart Frame must be placed on a horizontal, stable and plane surface. The stand must be fitted with sufficient ballast. Do not install the stand in narrow passageways or other places where a lot of people and equipment has to pass close by, thereby risking collisions that might cause the stand to tip over causing human injuries and damage to property.
-
Page 6: Securing The Display
Securing the display NOTE: The next step is to securely fix the display to the stand using the two safety brackets. The result will look like this, when looking up underneath the display bottom. 1. First insert the spring nuts - one in each side - in the groove in the stand underneath the display. Press one side of the nut up in the groove first, and then push the other side up, activating the spring. - Page 7 3. Fix the brackets with the two finger screws. The display is now fixed to the stand. Mounting the prints 1. Start in a corner. Push the thick edges of the print inside the groove in the stand. 2. Continue to push the thick edge of the print inside the groove all the way around the edge. When mounted correctly the print will stretch neatly and leave a smooth surface.
-
Page 8: Disassembling The Stand
Creating artwork for the stand prints 4 x print pdf files must be created. One for each side of the stand. Dimensions (HxW): 1239 x 560 mm (front/back), 1239 x 420 mm (sides). Trim marks and 40 mm bleed should be added. Graphics should be in 300 dpi and created in CMYK colour. - Page 10 Realfiction and Dreamoc are registered trademarks owned by Realfiction ApS. Other marks may be mentioned here in that belong to other companies. © 2024 Realfiction Aps. All rights reserved. Realfiction Aps | Antonigade 11, 1st floor | DK-1106 Copenhagen | Denmark | Phone: +45 70 20 64 90...
