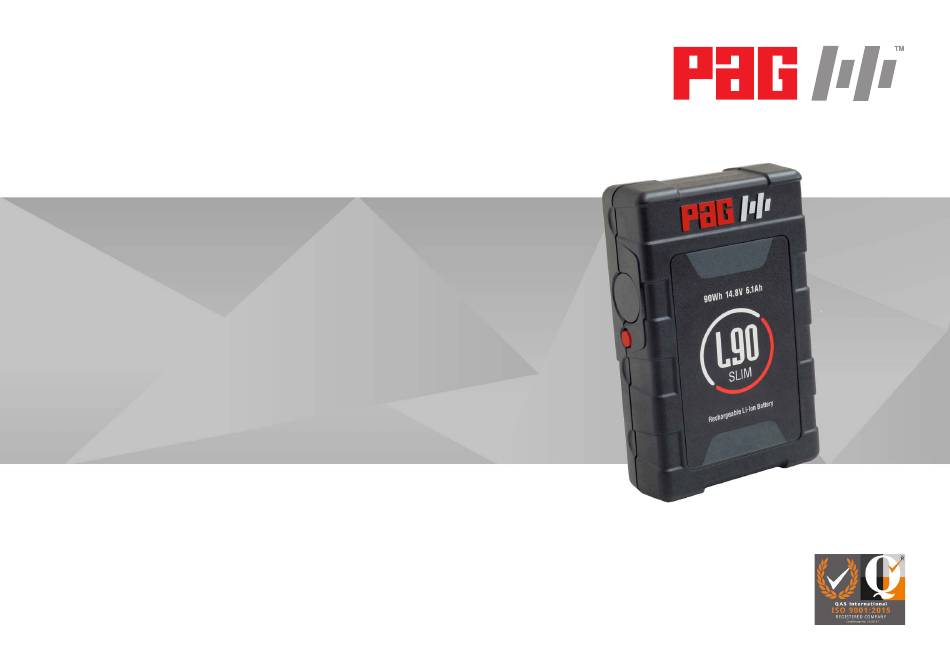

- Page 1 PAG L90 Slim Battery User Guide U5129...
- Page 2 Disclaimer The information contained in this document is correct at the time of publication. PAG Ltd. reserves the right to change specifications or product details without notification. Changes to product details will be incorporated in the next version of the document. PAG updates documents on a regular basis.
-
Page 3: Table Of Contents
Contents CLICK ON A SECTION PAGE Introduction Specification Charging Discharging A User Guide for the PAG L90 Slim Battery. Storage Battery Display Please read the important safety information and Battery Protection Features instructions before using your battery. Safety Information Servicing... -
Page 4: Introduction
These instructions cover all PAG L90 Slim Models. 12V camera accessories in addition to powering the camera. The PAG L90 Slim is a V-Mount Li-Ion battery designed for compatibility with the Sony V-Mount specification. The battery has a low-profile and lightweight design, coupled with... - Page 5 Data Display period and no restrictions on the conditions of use. Display 1.17 The PAG L90 Slim has been tested to UN 38.3 standard by an Button independent authority (Intertek Group PLC) and certified safe for air transport in accordance with IATA regulations.
-
Page 6: Specification
2. Specification Storage: Cell Technology: Premium grade, high-capacity, high-current, sealed, Lithium-Ion +10°C to +30°C (+50°F to +86°F). rechargeable cells. Dimensions (L x W x H): Capacity: 140mm (5.51”) x 85mm (3.34”) x 35mm (1.37”) 6.1 Ampere-hours nominal, 90 Watt-hours. Weight: Voltage: 567g (1.25lbs). -
Page 7: Charging
‘Sleep Mode’ and fully charge the battery using a PAGlink PL16 Charger: before use. 1 battery 2 hrs 30 mins The following PAG V-Mount Li-Ion chargers can be used: 2 batteries 3 hrs 9707 PAGlink PL16 Charger... -
Page 8: Discharging
4. Discharging The battery incorporates a precision fixed end-of-discharge cutoff, set to 12.5V, as measured by the battery. This cutoff will operate only if the battery capacity is less than 5%, eliminating unwanted cutoff operation due to high current and low battery temperature. -
Page 9: Storage
5. Storage It is important to note that frequent use is the best practice for Li-Ion batteries, in preference to storing them for long periods. In the short term, batteries can be left safely on a charger until they are required. The charger will only top-up the battery when it sees that it can accept more charge. -
Page 10: Battery Display
6. Battery Display Run-Time & Charge Status Data Display The battery display can reveal data stored in the battery’s internal microprocessor using a series of button presses: Press x3 in 1 second Release to see 1st Press & hold for 3 1. - Page 11 3 lines disappear In-Viewfinder/LCD Battery Status The PAG L90 Slim allows battery capacity to be displayed as a The accuracy of the display is maintained by tracking battery percentage in the viewfinder or on the LCD of cameras designed performance and adjusting calibration values to compensate for the to accept this data.
-
Page 12: Battery Protection Features
A thermal fuse is incorporated within the battery construction as Over-Charge Protection a ‘backstop’ protection device, and this cannot be reset. In the Charging will be inhibited if the battery voltage exceeds a pre-set unlikely event of this fuse operating, please contact a PAG level. service centre. Over-Discharge Protection... -
Page 13: Safety Information
8. Safety Information PLEASE READ THESE IMPORTANT SAFETY INSTRUCTIONS Do not attempt to disassemble the battery. Refer faults to BEFORE USING THE BATTERY AND RETAIN THEM FOR authorised service personnel. FUTURE REFERENCE. Do not continue to use the battery if there is any change in the When used correctly, Lithium-Ion batteries are a safe and reliable appearance of the casing. -
Page 14: Servicing
Authorised PAG Service Centres: It is PAG's policy to repair its batteries, in keeping with ‘the right to Europe & Middle East: repair’, unless it is uneconomic for the customer to do so. Circum- Aspectra B.V. - Page 15 Epsom Downs Metro Centre, Units 9 & 10, Waterfield, Tadworth, Surrey KT20 5LR, UK Tel: +44 (0)20 8543 3131 Email: support@paguk.com The Americas: PAG America (a division of the Carr Distribution Group) 18 Center Street, Ramsey, NJ 07446, USA Tel: +1 631 300 8215 Email: sales@pagamerica.com...
-
Page 16: Recycling
10. Recycling 10.1 PAG Ltd. offers its UK customers a recycling service for their expired PAG Li-Ion batteries, by prior arrangement only. They must be in a discharged state, and clearly marked: ”FOR RECYCLING” Please do not attempt to return Li-Ion batteries without first contacting an authorised PAG Service Centre. -
Page 17: Warranty
In the event of failure of a product covered by this warranty, PAG Limited will repair and calibrate equipment returned to an author- ised Service Facility within the period of the warranty, provided the warrantor’s examination discloses to its satisfaction the product... -
Page 18: Air Transport Regulations
12.2 Advice for Travelling by Air with Li-Ion Batteries Li-Ion batteries cannot be transported in the hold unless attached All PAG Li-Ion batteries comply with the International Air Trans- to a camera. Spare Li-Ion batteries MUST be carried in your hand port Association (IATA) Dangerous Goods Regulations, Section luggage. -
Page 19: Eu Declaration Of Conformity
Applicable EU Directives: EMC Directive 2004/108/EC CE Marking Directive 93/68/EEC Harmonised Standards Applied: Generic: BS EN 61000-6-3 (Emissions) BS EN 61000-6-1 (Immunity) Product Specific: IEC 1000-4 Signed for and on behalf of PAG Ltd. Alan Lavender, Chief Executive Date: 01.10.23.
