- Page 1 AIKO PV Module Installation Manual Light Weight Module Zhejiang Aiko Solar Technology Co., Ltd. No.655 Haopai Road, Suxi Town, Yiwu City, Zhejiang Province, P.R.China. Email: cs@aikosolar.com (Customer Service) Web: www.aikosolar.com...
-
Page 2: Table Of Contents
This Installation Manual provides information regarding the installation and safe use of PV Power Generation Module (hereinafter referred to as “PV modules”）produced by Zhejiang Aiko Solar Technology Co., Ltd. (hereinafter referred to as “AIKO”). Installation and day to day maintenance of modules shall be in accordance 6.1 General requirements with all safety precautions specified in this Manual and local laws. -
Page 3: Overview
AIKO is liable for the losses or expenses incurred only when the module failed above tests. If any infringement of patent rights or third-party rights arises due to the use of the components, AIKO shall not bear any... -
Page 4: Wiring Method

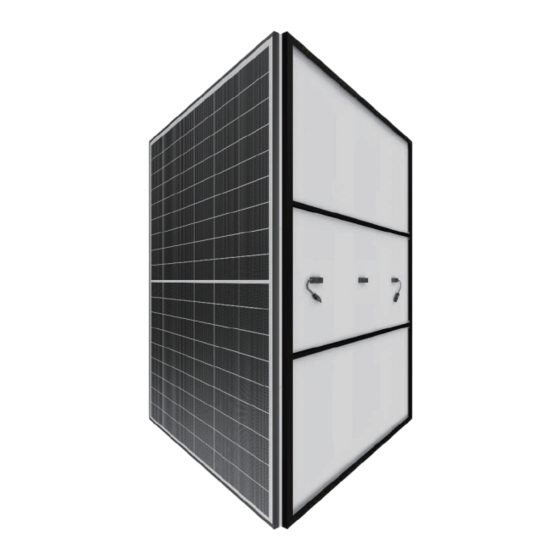

03/04 General information Packing List 3.2 Wiring method (3)Packaging list including the information of the module type, Module barcode information, number of modules,package weight, package dimension as well as cells color classification. To ensure consistency of the overall color of system when the customer use the modules, the box of modules is packaged The junction box of AlKO PV modules is located in the middle position. -
Page 5: General Safety
The module can be used in systems with DC voltage greater than 50V or power greater than 240W that may be accessible to the public.Modules are designed with safety Class ll and fire class rating C. Before to handle and install AIKO PV module, read carefully and understand this Installation Manual. If you need any explanation, contact AIKO (aikosolar.com). -
Page 6: Fire Safety
If anything wrong is observed, please contact box or cables under any circumstances. Two or more people must hold the edges of the PV modules with both hands. AIKO logistics and sales staff immediately. Crane unloading: 4.3 Considerations for PV module storage and placement... -
Page 7: Installation Conditions
When the surface of the module is perpendicular to sunlight, the output power reach the maximum output value. AIKO recommend the installation angle should not less than 10 degree. The optimal tilt angle of occur at the connection between the PV module and the racking or at the ground connection. Anticorrosive materials PV arrays should be designed by taking into account the multi-year average monthly irradiance, direct irradiance, scattering (e.g., stainless steel or aluminum materials) must be used in contact with PV modules and the mounting position must... -
Page 8: Mechanical Installation
M8 bolt tightening torques must be within 16~20Nm and M6 bolt tightening torques must be within 8~12Nm respectively, is made with, and prior written consent is received from AIKO. Failure to do so will invalidate our warranty. depending on bolt classes. For the bolt grade, the technical guidelines from the fastener suppliers should be followed. - Page 9 Nuts It is important to ensure the bolts do not fail due to deformation or corrosion during the overall load of the PV module. AIKO recommend the thickness of washer should ≥1.7mm and use M8 and M6 bolt tightening torques must be within 16~20Nm...
-
Page 10: Mono Glass Modules
+3600/-2400 Note: 1. The installation methods shown in the table above are based on experimental results, please contact AIKO for more details on other installation methods and load capacity not listed. 2. ''/ '' identifies that there is no such installation. -
Page 11: Cables And Connections
AlKO PV modules use specialized PV cables which have a cross sectional area of 4 mm² and are ultraviolet resistant. AIKO recommends that all cables are run in appropriate conduits and sited away from areas prone to water collection. -
Page 12: Grounding
PV Modules shall be inspected and maintained on a regular basis, especially within the warranty period, which is an obligatory responsibility of the user. Any damage or other visible abnormalities of the PVmodule shall be reported to AIKO customer service upon discovery. -
Page 13: Visual Checks Of The Modules
40kg, the component damage and power attenuation caused by improper Collect evidences of the issue as (a) photos and (b) measurements. cleaning with the cleaning robot are not covered by the warranty of AIKO. Be prepared to show the purchase invoice and module serial number.
