Summary of Contents for Asus PRIME B760M-A CSM

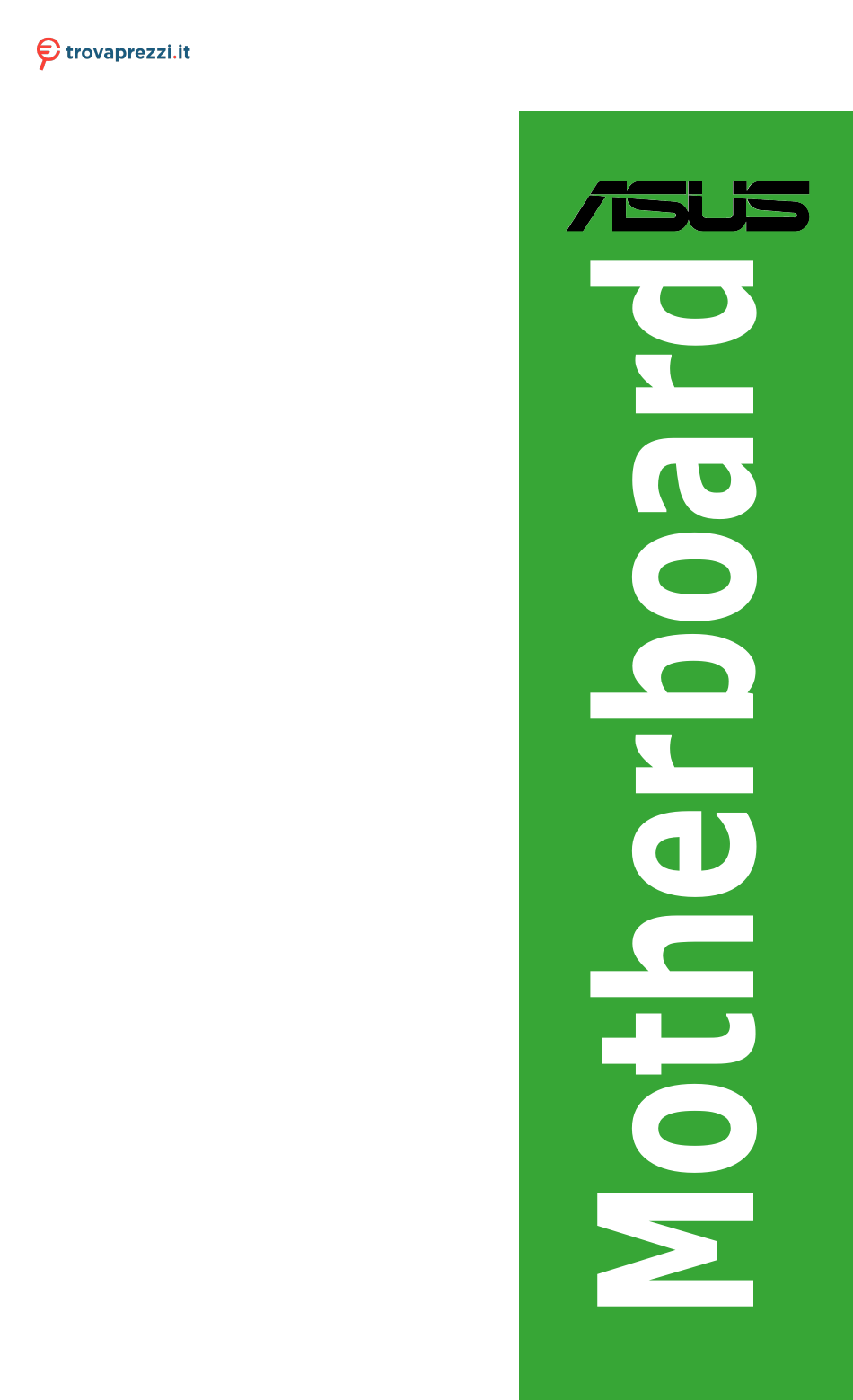

- Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Asus Prime B760M-A CSM o cerca il tuo prodotto tra le migliori offerte di Schede Madri PRIME B760M-A...
- Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
-
Page 3: Table Of Contents
M.2 installation .................... 1-13 Chapter 2: BIOS and RAID Support Knowing BIOS ....................2-1 BIOS Setup program ..................2-2 ASUS EZ Flash 3 ................... 2-3 ASUS CrashFree BIOS 3 ................2-4 RAID configurations ..................2-5 Appendix Notices ........................A-1 Warranty ........................A-5 ASUS contact information .................. -
Page 4: Safety Information
Safety information Electrical safety • To prevent electrical shock hazard, disconnect the power cable from the electrical outlet before relocating the system. • When adding or removing devices to or from the system, ensure that the power cables for the devices are unplugged before the signal cables are connected. If possible, disconnect all power cables from the existing system before you add a device. -
Page 5: About This Guide
Refer to the following sources for additional information and for product and software updates. ASUS website The ASUS website (www.asus.com) provides updated information on ASUS hardware and software products. Optional documentation Your product package may include optional documentation, such as warranty flyers, that may have been added by your dealer. -
Page 6: Package Contents
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max ® ® Technology 3.0** * Refer to www.asus.com for CPU support list. ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. ® Chipset Intel B760 Chipset ®... - Page 7 PRIME B760M-A specifications summary Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports* Intel & 12 Gen Processors ® M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) Storage Intel B760 Chipset ® M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) 4 x SATA 6Gb/s ports * Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
- Page 8 1 x LPT header 1 x S/PDIF Out header 1 x SPI TPM header (14-1pin) 1 x 20-3 pin System Panel header with Chassis intrude function ASUS 5X PROTECTION III - DIGI+ VRM - LANGuard - Overvoltage Protection - SafeSlot Core+...
- Page 9 Form Factor 9.6 inch x 9.6 inch (24.4 cm x 24.4 cm) • Specifications are subject to change without notice. Please refer to the ASUS website for the latest specifications. • For more information on downloading and installing drivers and utilities for your...
-
Page 11: Chapter 1: Product Introduction
Chapter 1: Product Introduction Product Introduction Before you proceed Take note of the following precautions before you install motherboard components or change any motherboard settings. • Unplug the power cord from the wall socket before touching any component. • Before handling components, use a grounded wrist strap or touch a safely grounded object or a metal object, such as the power supply case, to avoid damaging them due to static electricity. -
Page 12: Motherboard Overview
Motherboard overview 24.4cm(9.6in) CPU_FAN CPU_OPT HDMI1_DP ATX_12V DIGI +VRM HDMI2 KBMS_USB_E34 U32G2_12 LGA1700 LAN_USB_E12 M.2_1(SOCKET3) PCIE SATA 4.0 X4 AUDIO 2242 2260 2280 PCIEX16(G4)_1 Ethernet Intel ® BATTERY B760 Super 128Mb PCIEX16(G4)_2 BIOS COM_DEBUG M.2_2(SOCKET3) PCIE SATA 4.0 X4 Audio Codec PCIEX16(G4)_3 2280... -
Page 13: Expansion Slots
3. Expansion slots This motherboard supports one PCIe x16 graphics card, one PCIe x16 (supporting x4 mode) and one PCIe x16 (supporting x1 mode) network cards, SCSI cards and other cards that comply with the PCI Express specification. 4. Fan headers FAN PWM FAN IN The Fan headers allow you to connect fans to cool the system. -
Page 14: Usb 2.0 Headers
9. USB 3.2 Gen 1 headers The USB 3.2 Gen 1 headers allow you to connect USB 3.2 Gen 1 PIN 1 USB3+5V modules for additional USB 3.2 Gen 1 ports. The USB 3.2 Gen 1 USB3+5V IntA_P1_SSRX- IntA_P2_SSRX- IntA_P1_SSRX+ IntA_P2_SSRX+ headers provide data transfer speeds of up to 5 Gb/s. -
Page 15: Clear Cmos Header
• Actual lighting and color will vary with LED strip. • If your LED strip does not light up, check if the RGB LED extension cable and the RGB LED strip are connected in the correct orientation, and the 12V connector is aligned with the 12V header on the motherboard. - Page 16 16. LPT header The LPT (Line Printing Terminal) header supports devices such as a printer. LPT standardizes as IEEE 1284, which is the parallel port interface on IBM PC-compatible computers. PIN 1 17. S/PDIF Out header SPDIF_OUT The S/PDIF Out header allows you to connect the Sony/Philips Digital Interface (S/PDIF) Out module.
-
Page 17: Rear Panel Connectors
The 3-1 pin header allows you to connect the system power button. Press the power button to power up the system, or put the system into sleep or soft-off mode (depending on the operating system settings). • Reset button header (RESET) The 2-pin header allows you to connect the chassis-mounted reset button. - Page 18 Line Out port (lime). This port connects a headphone or a speaker. In 4-channel, 5.1-channel, and 7.1-channel configurations, the function of this port becomes Front Speaker Out. HDMI™ ports. These ports are for High-Definition Multimedia Interface (HDMI™) connectors, and are HDCP compliant allowing playback of HD DVD, Blu-ray, and other protected content.
-
Page 19: Central Processing Unit (Cpu)
CPU designed for LGA1155, LGA1156, LGA1151, and LGA1200 sockets on the LGA1700 socket. • ASUS will not cover damages resulting from incorrect CPU installation/removal, incorrect CPU orientation/placement, or other damages resulting from negligence by the user. Installing the CPU... - Page 20 1-10 Chapter 1: Product Introduction...
-
Page 21: System Memory
(D/C) from the same vendor. Check with the retailer to get the correct memory modules. • Visit the ASUS website for the latest QVL. Recommended memory configurations DIMM_A1... -
Page 22: Installing A Dimm
Installing a DIMM To remove a DIMM 1-12 Chapter 1: Product Introduction... -
Page 23: Installation
M.2 installation OPTIONAL • Ensure to install the bundled M.2 rubber pad before installing your single sided M.2 storage device. • DO NOT install the bundled M.2 rubber pads when installing a double-sided M.2 storage device. The rubber pad installed by default is compatible with double sided M.2 storage devices. - Page 24 1-14 Chapter 1: Product Introduction...
-
Page 25: Chapter 2: Bios And Raid Support
BIOS and RAID Support Knowing BIOS The new ASUS UEFI BIOS is a Unified Extensible Interface that complies with UEFI architecture, offering a user-friendly interface that goes beyond the traditional keyboard- only BIOS controls to enable a more flexible and convenient mouse input. You can easily navigate the new UEFI BIOS with the same smoothness as your operating system. -
Page 26: Bios Setup Program
BIOS Setup program Use the BIOS Setup to update the BIOS or configure its parameters. The BIOS screens include navigation keys and brief onscreen help to guide you in using the BIOS Setup program. Entering BIOS at startup To enter BIOS Setup at startup, press <Delete> or <F2> during the Power-On Self Test (POST). -
Page 27: Asus Ez Flash 3
ASUS EZ Flash 3 The ASUS EZ Flash 3 feature allows you to update the BIOS without using an OS-based utility. Ensure to load the BIOS default settings to ensure system compatibility and stability. Select the Load Optimized Defaults item under the Exit menu or press hotkey <F5>. -
Page 28: Asus Crashfree Bios 3
ASUS CrashFree BIOS 3 The ASUS CrashFree BIOS 3 utility is an auto recovery tool that allows you to restore the BIOS file when it fails or gets corrupted during the updating process. You can restore a corrupted BIOS file using a USB flash drive that contains the BIOS file. -
Page 29: Raid Configurations
For more information on configuring your RAID sets, please refer to the RAID Configuration Guide which you can find at https://www.asus.com/support, or by scanning the QR code. RAID definitions RAID 0 (Data striping) optimizes two identical hard disk drives to read and write data in parallel, interleaved stacks. - Page 30 Chapter 2: BIOS and RAID Support...
-
Page 31: Appendix
Appendix Notices FCC Compliance Information Responsible Party: Asus Computer International Address: 48720 Kato Rd., Fremont, CA 94538, USA Phone / Fax No: (510)739-3777 / (510)608-4555 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 32 Compliance Statement of Innovation, Science and Economic Development Canada (ISED) This device complies with Innovation, Science and Economic Development Canada licence exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
-
Page 33: India Rohs
ASUS products sold in Vietnam, on or after September 23, 2011,meet the requirements of the Vietnam Circular 30/2011/TT-BCT. Các sản phẩm ASUS bán tại Việt Nam, vào ngày 23 tháng 9 năm2011 trở về sau, đều phải đáp ứng các yêu cầu của Thông tư 30/2011/TT-BCT của Việt Nam. -
Page 34: Simplified Eu Declaration Of Conformity
Français AsusTek Computer Inc. déclare par la présente que cet appareil est conforme aux critères essentiels et autres clauses pertinentes des directives concernées. La déclaration de conformité de l’UE peut être téléchargée à partir du site Internet suivant : www.asus.com/support Deutsch ASUSTeK Computer Inc. -
Page 35: Warranty
• ASUS offers a voluntary manufacturer’s Commercial Guarantee. • ASUS dragovoljno nudi komercijalno proizvođačko jamstvo. • ASUS reserves the right to interpret the provisions of the ASUS • ASUS zadržava prava na tumačenje odredbi ASUS komercijalnog Commercial Guarantee. jamstva. •... - Page 36 • ASUS tilbyr som produsent en frivillig kommersiell garanti. • Bảo hành thương mại này của ASUS được cung cấp độc lập và ngoài • ASUS forbeholder seg retten til å tolke bestemmelsene i ASUS sin Bảo đảm pháp lý theo luật định và không có cách nào ảnh hưởng đến kommersielle garanti.
-
Page 37: Asus Contact Information
Address: 1F., No. 15, Lide Rd., Beitou Dist., Taipei City 112 ASUS COMPUTER INTERNATIONAL (America) Address: 48720 Kato Rd., Fremont, CA 94538, USA ASUS COMPUTER GmbH (Germany and Austria) Address: Harkortstrasse 21-23, 40880 Ratingen, Germany ASUSTeK (UK) LIMITED Address: 1st Floor, Sackville House, 143-149 Fenchurch Street, London, EC3M 6BL,...
