- Page 1 备注 H22003（ORE01）说明书 ：0106020147645 材质：100克书纸 尺寸：111x146mm 装订方式：骑马钉...
- Page 2 1080P 2X2 Video HD-22VW Wall Contoller 1080P 2X2 Video Follow us on Youtube and Facebook HD-22VW Wall Contoller www.orei.com U S E R M A N U A L © 2023 www.orei.com...
-
Page 3: Table Of Contents
Table of Contents Introduction Features Package Contents Function setting 06-11 Specifications 12-13 Operation Controls and Functions 14-15 Connection Diagram 16-17 Thank you for purchasing this product For optimum performance and safety, please read these instructions care-fully before connecting, operating or adjusting this product. Please keep this manual for future reference. -
Page 4: Introduction

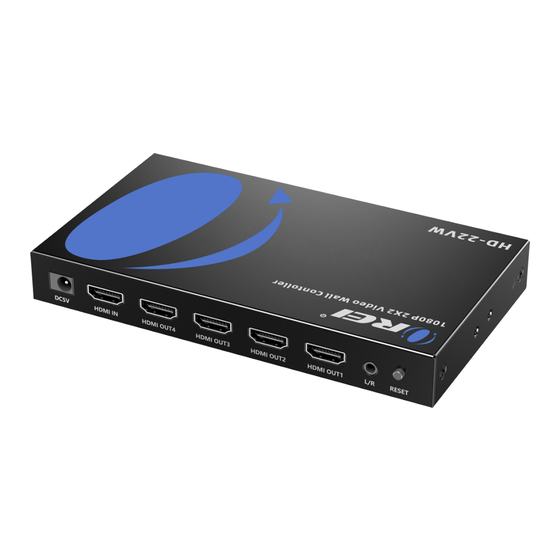

Please Activate your warranty by registering your product through the link The HD-22VW is a 1 Input 4 Output 2x2 Video Wall Controller. It is the best below - www.orei.com/register device For various Video wall setups. It features 8 different video wall modes. -
Page 5: Features
From right to left, the HDMI ports are: HDMI: 01,02,03,04 ES XX Off\n All means all HDMI ports Package Contents ‘XXX’ means splicing mode 000——1x1;001——2x1;010——1x2;011——3x1 ES XXX\n 100——1x3;101——4x1;110——2x2;111——1x4 HD-22VW 1 pcs Reset\n Reset, device restart Mounting Ear 2 pcs Restore the factory settings and read the current dialing Screw... - Page 6 Function setting Function setting ‘XX’ represents the baud rate value Functional details Baud 19200 OK Baud XX\n 9600（default）,19200, 38400,57600,115200 Received successfully Baud 19200 OK Example Return value Received unsuccessful Baud 19200 FAIL Control command 1 ES 04 On\n Remarks： Functional details Open the ‘04’HDMI port 1) ‘\n’...
- Page 7 Function setting Function setting DIP Switch Built-in 8 different Video Wall modes. 1 means UP position and 0 means DOWN position. The default setting is 000. vertically Dip switch state HDMI Out 4 = HDMI Out 3 Splicing mode horizontally HDMI Out 4 = HDMI Out 3 vertically vertically...
- Page 8 Function setting Items Description HDMI Input 1x HDMI HDMI Output 4x HDMI vertically HDMI 1.4 Compatibility HDCP 1.4 1080P@60/50/30/25/24Hz, 720P@60/50Hz, horizontally Video signal 576P@50Hz, 480P@60Hz, 1920x1200@60Hz, (Support 1680x1050@60Hz, 1600x900@60Hz, RS-232 at the 1600x1200@60Hz, 1440x900@60Hz, same time） 1400x1050@60Hz, 1366x768@60Hz, Resolutions 1360x768@60Hz, 1280x1024@60Hz, 1280x960@60Hz, 1280x800@60Hz, 1280x768@60Hz, 1024x768@60Hz, 800x600@60Hz, 640x480@60Hz...
-
Page 9: Operation Controls And Functions
Operation controls and functions Storage -30℃~70℃ Operating temperature Environment Humidity 0~90%RH（No condensation） Housing Iron Physical Weight 381g Properties Color Black Dimensions 160(L)*90(W)*20.6(H)mm ESD protection 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Protection Implementation of the standard: IEC61000-4-2 Lightning protection, Surge protection DC5V Power input: Connect the DC 5V/1A power adapter to power the device HDMI IN: Connect media source device... -
Page 10: Operation Controls
Operation controls Connection and functions Diagram Description Power Indicator: 1) Steady on: The device is on Connection Diagrams 2) Slow flash: No signal 3) Quick flash: The factory settings have been restored HDMI signal light x4: Corresponding to 4 HDMI outputs respectively. The LEDs will HDMI output 2 light up green indicating normal signal output RS-232: Connect to a PC through RS-232 for control... - Page 11 Connection Diagram RS232 UPGRADE MODE SWITCH DC 5V RESET HDMI IN HDMI OUT 3.5mm L/R Page 17...
