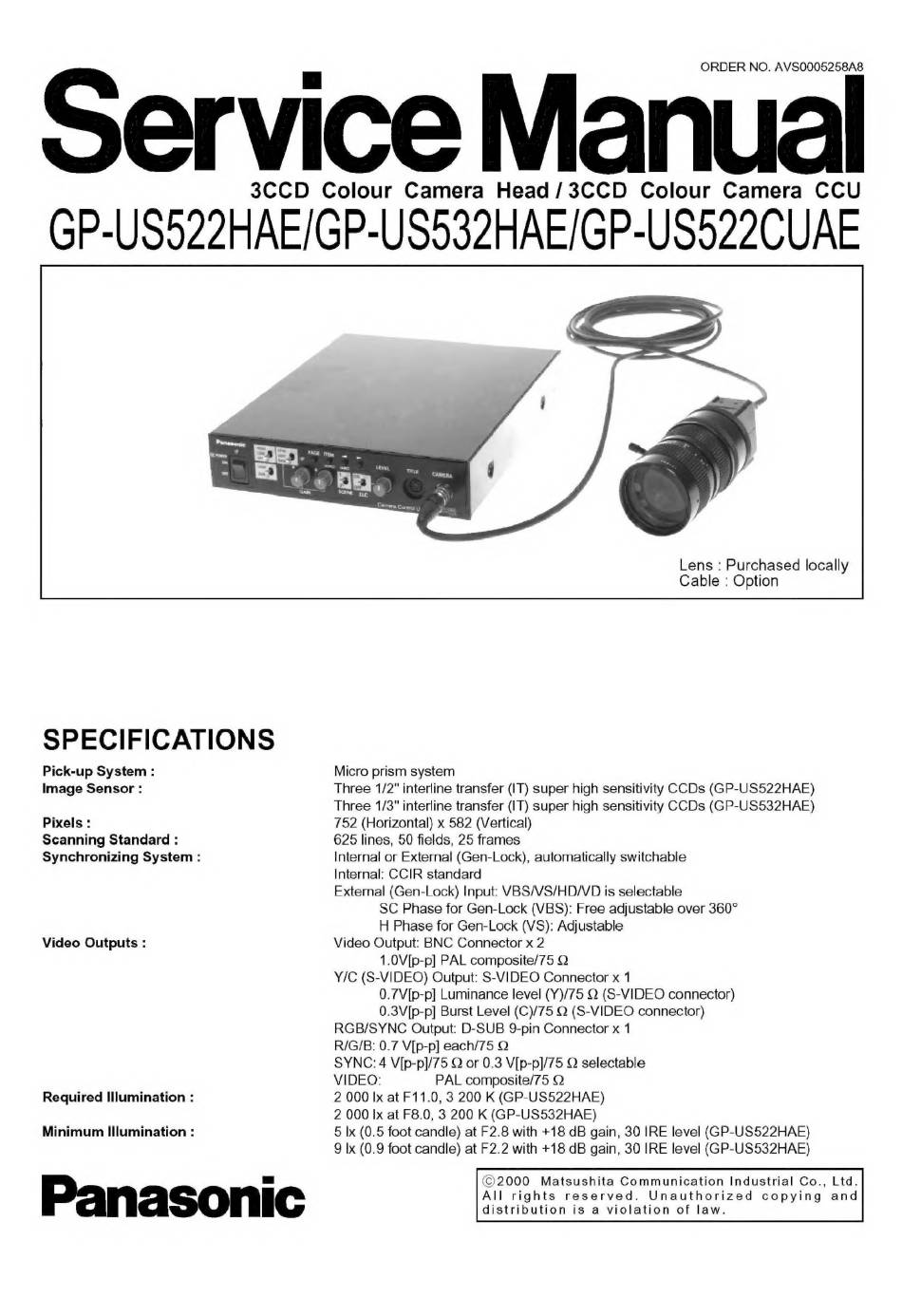

ORDER NO. AVS0005258A8
Service Manual
3CCD
Colour
Camera
Head/3CCD
Colour
Camera
CCU
GP-US922HAE/GP-USS32HAE/GP-USo22CUAE
Lens : Purchased locally
Cable : Option
SPECIFICATIONS
Pick-up System :
Micro prism system
Image Sensor :
Three 1/2" interline transfer (IT) super high sensitivity CCDs (GP-US522HAE)
Three 1/3" interline transfer (IT) super high sensitivity CCDs (GP-US532HAE)
Pixels :
752 (Horizontal) x 582 (Vertical)
Scanning Standard :
625 lines, 50 fields, 25 frames
Synchronizing System :
Internal or External (Gen-Lock), automatically switchable
Internal: CCIR standard
External (Gen-Lock) Input: VBS/VS/HD/VD is selectable
SC Phase for Gen-Lock (VBS): Free adjustable over 360°
H Phase for Gen-Lock (VS): Adjustable
Video Outputs :
Video Output: BNC Connector x 2
1.0V[p-p] PAL composite/75 Q
Y/C (S-VIDEO) Output: S-VIDEO Connector x 1
0.7V[p-p] Luminance level (Y)/75 Q (S-VIDEO connector)
0.3V[p-p] Burst Level (C)/75 QO (S-VIDEO connector)
RGB/SYNC Output: D-SUB 9-pin Connector x 1
R/G/B: 0.7 V[p-p] each/75 O
SYNC: 4 V[p-p]/75 Q or 0.3 V[p-p]/75 © selectable
VIDEO:
PAL composite/75 Q
Required Illumination :
2 000 Ix at F11.0, 3 200 K (GP-US522HAE)
2 000 Ix at F8.0, 3 200 K (GP-US532HAE)
Minimum Illumination :
5 Ix (0.5 foot candle) at F2.8 with +18 dB gain, 30 IRE level (GP-US522HAE)
9 Ix (0.9 foot candle) at F2.2 with +18 dB gain, 30 IRE level (GP-US532HAE)
©2000
Matsushita
Communication
Industrial
Co., Ltd.
|
All
rights
reserved.
Unauthorized
copying
and
distribution
is a violation
of law.
