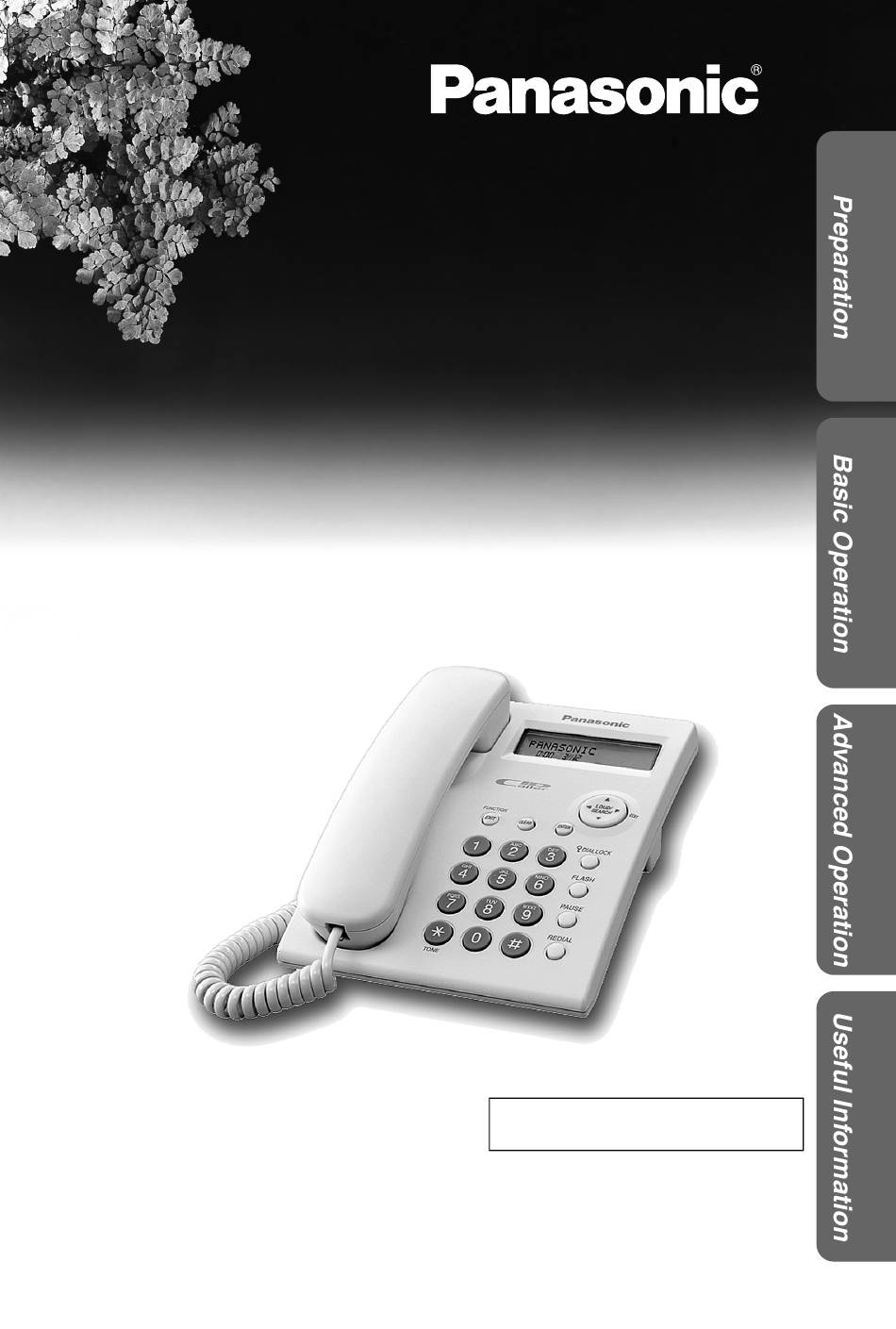

- Page 1 Integrated Telephone System Operating Instructions KX-TSC11FXW Model No. Pulse-or-tone dialling capability Caller ID Compatible PLEASE READ BEFORE USE AND SAVE.
-
Page 2: Before Initial Use
Before Initial Use Thank you for purchasing your new Panasonic integrated telephone. Caller ID, where available, is a telephone company’s service. After subscribing to Caller ID, this phone will display a caller’s phone number. For your future reference Serial No. -
Page 3: Table Of Contents
Contents Preparation Advanced Operation Location of Controls ..4 Phone Book ....20 Storing Names and Phone Display ....5 Numbers in the Phone Book Settings . -
Page 4: Location Of Controls
Location of Controls [ENTER] Button (p. 7, 18, 20) [CLEAR] Button (p. 17, 19, 20, 26) [FUNCTION/EXIT] Button (p. 7, 15, 20) Display (p. 5) RINGER Selector (p. 11) Navigator Key ([ ], [ ], [ ], [ ]) (see below) TONE Button [ ] (p. -
Page 5: Display
Display 1234567890123456 (This display shows all of the possible configurations.) While the unit is not in use, the display 10 MISSED CALLS shows the current time and date, and the 12:34 24/11 number of new calls. If the display continuously shows “0:00 31/12”... -
Page 6: Settings
• Batteries are not included in the unit. • Install three high quality “AA” size Alkaline (LR6) or Manganese (R6, UM-3) batteries. We recommend to use Panasonic Alkaline batteries. Battery life is: —about six months in use of Alkaline batteries. -
Page 7: Programming Summary
• Use only a Panasonic Handset for the KX-TSC11FXW. • Use only a telephone line cord included in the unit. • If your unit is connected to a PBX which does not support Caller ID services, you cannot access those services. -
Page 8: Time And Date
Settings Time and Date You can select 24-hour or AM/PM clock by programming. Make sure that the handset is on the cradle. Press [FUNCTION/EXIT]. Scroll to “SET CLOCK ?” by SET CLOCK ? pressing [ ] or [ ]. Press [ENTER]. ENTER YEAR 2004 00:00 31/12... - Page 9 Press [#] to select “AM”, “PM” or 24- #=AM/PM hour clock. (Ex. You select “PM”.) 09:30 31/12 Display Option (Blank display) 24-hour clock • Each time you press [#], the selection will change on the display. Press [ENTER]. ENTER DAY/MONTH 09:30 31/12 Enter the current day and month using...
-
Page 10: Dialling Mode
Settings Dialling Mode You can select the dialling mode by programming. If you have touch tone service, set to Tone. If rotary or pulse service is used, set to Pulse. Your phone comes from the factory set to Tone. Make sure that the handset is on the cradle. Press [FUNCTION/EXIT]. -
Page 11: Lcd Contrast
LCD Contrast You can select the LCD contrast level from 1 to 4 by programming. Your phone comes from the factory set to 2. Make sure that the handset is on the cradle. Press [FUNCTION/EXIT]. Scroll to “LCD CONTRAST ?” by LCD CONTRAST ? pressing [ ] or [ ]. -
Page 12: Display Language
Settings Display Language You can select either “English” or “Romana” as the display language. Your phone comes from the factory set to “English”. Make sure that the handset is on the cradle. Press [FUNCTION/EXIT]. SAVE PHONEBOOK ? Scroll to “CHANGE LANGUAGE?” by CHANGE LANGUAGE? pressing [ ] or [ ]. -
Page 13: Making Calls
Making Calls To make a call, this unit can dial up by 2 methods as below steps. Enter a phone number, then lift the handset. Lift the handset, then dial a phone number. • The dialled number is displayed. 1234567890 •... -
Page 14: Answering Calls
Answering Calls When a call is received, the unit rings, “INCOMING CALL” is displayed. If you subscribe to a Caller ID service, the calling party’s information will be displayed when the unit is ringing (see below). When the unit rings, lift the handset. When finished talking, hang up. -
Page 15: Using The Caller List
• Caller information will not be displayed in the following cases: — If the caller dialled from an area which does not provide a Caller ID service, the display will show “OUT OF AREA”. — If the caller has requested not to display his/her information, the display will show “PRIVATE CALLER”. - Page 16 Using the Caller List Ex. When you search from the most recent call: Press [ ] to enter the list. To return to the previous caller, press [ ]. 1114447777 To exit the Caller List, press [FUNCTION/EXIT]. 11:50 24/11 Press [ ]. Press [ ].
-
Page 17: Calling Back From The Caller List
Calling Back from the Caller List Press [ ] or [ ] to enter the Caller List. Scroll to the desired caller by pressing JACK SMITH [ ] or [ ]. 10:50 23/11 • To exit the Caller List, press [FUNCTION/EXIT] or wait for 60 seconds. -
Page 18: Storing Caller List Information In The Phone Book List
Using the Caller List Storing Caller List Information in the Phone Book List You can store numbers in the Caller List to the Phone Book List. Make sure that the handset is on the cradle. Press [ ] or [ ] to enter the Caller List. Scroll to the caller you want to store by 1234567890 pressing [ ] or [ ]. -
Page 19: Erasing Caller List Information
Erasing Caller List Information After checking the Caller List, you can erase some or all of the entries. Make sure that the handset is on the cradle. To erase a specific caller from the Caller List Press [ ] or [ ] to enter the Caller List. Scroll to the caller you want to erase JACK SMITH by pressing [ ] or [ ]. -
Page 20: Phone Book
Phone Book Storing Names and Phone Numbers in the Phone Book List You can store up to 50 names and phone numbers in the Phone Book. Make sure that the handset is on the cradle. Press [FUNCTION/EXIT]. SAVE PHONEBOOK ? Press [ENTER]. - Page 21 Press [ENTER]. SAVED • To continue storing other items, repeat from step 2. • The display will return to step 1. To exit the programming mode, press [FUNCTION/EXIT] or wait for 60 seconds. • If the display shows “PHONEBOOK FULL” in step 2, press [FUNCTION/EXIT] to exit. To erase other stored items from the Phone Book List, see page 26.
-
Page 22: Selecting Characters To Enter Names
Phone Book Selecting characters to enter names The dialling buttons ([0] to [9]) can be used to enter letters and symbols. Pressing each button selects a character as shown below. Number of times key is pressed Keys & ’ – Space To move the cursor to the left To move the cursor to the right... -
Page 23: Dialling From The Phone Book
Dialling from the Phone Book Make sure that the handset is on the cradle. Press [ ] or [ ] to enter the Phone PHONEBOOK LIST Book List. Scroll to the desired item by Press [ ]. Press [ ]. pressing [ ] or [ ]. -
Page 24: Index Table
Phone Book Index table Keys Index Keys Index Symbols, 1 P, Q, R, S, 7 A, B, C, 2 T, U, V, 8 D, E, F, 3 W, X, Y, Z, 9 G, H, I, 4 J, K, L, 5 0, Space M, N, O, 6 Chain Dial... -
Page 25: Editing
Editing Make sure that the handset is on the cradle. Press [ ] or [ ] to enter the Phone Book List. Scroll to the Phone Book item you JANE want to change by pressing [ ] or [ ]. •... -
Page 26: Erasing
Phone Book Erasing Make sure that the handset is on the cradle. Press [ ] or [ ] to enter the Phone Book List. Scroll to the Phone Book item that you want to erase by pressing [ ] or [ ] •... -
Page 27: Using The Pause Button (For Pbx Line/Long Distance Calls)
Using the PAUSE Button (For PBX Line/Long Distance Calls) We recommend you press [PAUSE] if a pause is required for dialling with a PBX or to make a long distance call. Ex. Line access number [9] (PBX) Phone number [PAUSE] •... -
Page 28: Setting The Password
• The display will return to step 2. To exit the programming mode, press [FUNCTION/EXIT] or wait for 60 seconds. • You can exit the programming mode any time by pressing [FUNCTION/EXIT]. Please write down your password. If you forget your password, consult your nearest Panasonic service centre. -
Page 29: Dial Lock
Dial Lock The Dial Lock feature allows you to prevent others from making calls. To use this feature, turn the feature ON. The factory preset is OFF. Before using the Dial Lock or Call Restriction feature (p. 30), we recommend storing emergency numbers in the Phone Book (p. -
Page 30: Call Restriction
Special Features Call Restriction You can prevent the unit from dialling phone numbers beginning with specified digit(s) (1 digit or 2 digits). Phone numbers with the restricted leading digits cannot be dialled out except the emergency numbers stored in the Phone Book. To set the call restriction Make sure that the handset is on the cradle. -
Page 31: Wall Mounting
Wall Mounting This unit can be mounted on a wall. Press the tabs in the direction of the arrows ( ), then remove the wall mounting adaptor ( ). Tuck the telephone line cord inside the wall mounting adaptor, and push it in the direction of the arrow •... -
Page 32: Battery Replacement
Battery Replacement If “ ” flashes, the battery power is low. Install new batteries as soon as possible. Disconnect the telephone line cord from the unit. Press down in the direction of the arrow and remove the battery cover ( ). Replace the batteries with new ones using correct polarity (+, –) ( ), and close the battery cover. -
Page 33: Troubleshooting
Troubleshooting Problem Cause and Remedy The unit does not work. • Check the settings (p. 6 – 12). • Remove the batteries and reinstall them to reset the unit. The unit does not ring. • The ringer selector is set to OFF. Set to HIGH or LOW (p. - Page 34 Troubleshooting Problem Cause and Remedy While programming or • To answer the call, lift the handset. Start searching, the unit starts to again from the beginning after hanging ring and stops the program/ search. The unit does not display • You need to subscribe to a Caller ID the caller’s phone number.
-
Page 35: Safety Instructions
Safety Instructions Take special care to follow the safety suggestions listed below. Installations Environment 1) Do not use this unit near water—for example, near a bathtub, washbowl, sink, etc. Damp basements should also be avoided. 2) The unit should be kept away from heat sources such as radiators, kitchen range, etc. -
Page 36: Specifications
This material is copyrighted by Panasonic System Networks Malaysia Sdn. Bhd., and may be reproduced for internal use only. All other reproduction, in whole or in part, is prohibited without the written consent of Panasonic System Networks Malaysia Sdn. Bhd.
