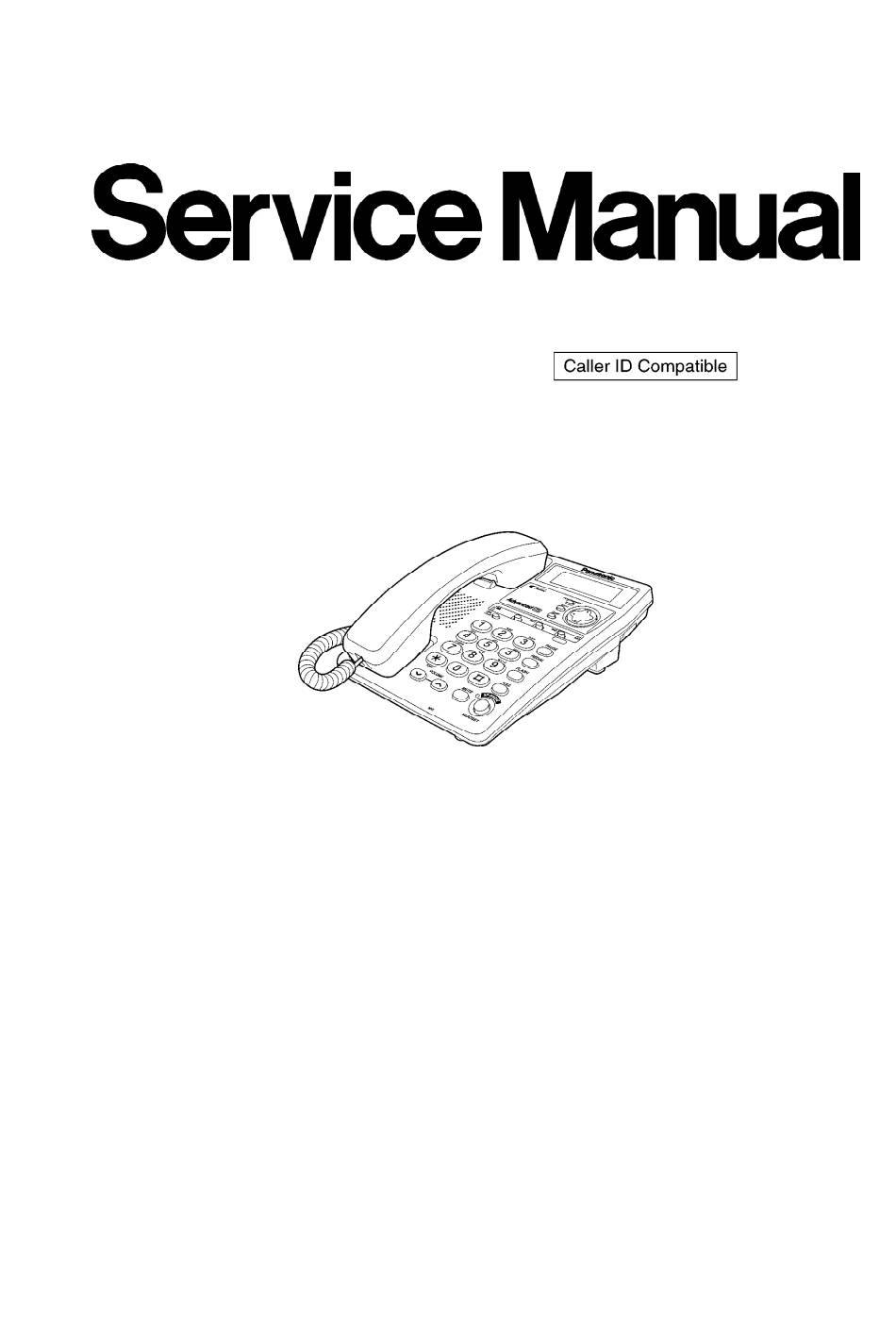

Panasonic KX-TSC35HKW Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
ORDER NO. KM40210975C3
Telephone Equipment
KX-TSC35HKW
Integrated Telephone System
White Version
(for Hong Kong)
SPECIFICATIONS
1

Advertisement

Table of Contents
loading

Related Manuals for Panasonic KX-TSC35HKW

Summary of Contents for Panasonic KX-TSC35HKW

  • Page 1 ORDER NO. KM40210975C3 Telephone Equipment KX-TSC35HKW Integrated Telephone System White Version (for Hong Kong) SPECIFICATIONS...
  • Page 2 2002 Kyushu Matsushita Electric Co., Ltd. All rights reserved. Unauthorized copying and distribution is a violation of law.

  • Page 3: Location Of Controls

    1. LOCATION OF CONTROLS...
  • Page 4 2. DISPLAY...

  • Page 5: Battery Replacement

    3. BATTERY REPLACEMENT...
  • Page 6 4. CONNECTION 4.1. Connecting the Handset/Telephone Line Cord...

  • Page 7: Connecting A Communication Device

    - Use only a Panasonic Handset for the KX-TSC35HKW. - Use only a telephone line cord included in the unit. - If your unit is connected to a PBX which does not support Caller ID services, you cannot access those services.
  • Page 8 5. SETTINGS 5.1. Time and Date...

  • Page 9: Lcd Contrast

    5.2. LCD Contrast...

  • Page 10: Making Calls

    5.3. Making Calls...

  • Page 12: Answering Calls

    5.4. Answering Calls...

  • Page 13: Caller Id Service

    5.5. Caller ID Service...
  • Page 15 5.6. Using the Caller List 5.7. Viewing the Caller List...
  • Page 17 5.8. Calling Back from the Caller List 5.9. Editing the Callers Phone Number...

  • Page 18: Voice Mail Service

    5.10. Voice Mail Service 5.10.1. Listening to Voice Mail Messages(s)

  • Page 19: How To Release The Establishment Of Dial Lock

    5.11. Dial Lock 5.11.1. To cancel the dial lock Follow above steps 1 through 3. In step 3, “ “ will go out. 5.12. How to Release the Establishment of Dial Lock...
  • Page 20 5.13. Call Waiting Caller ID Feature...
  • Page 21 5.14. FLASH Button 5.15. Setting the Password...
  • Page 22 6. DISASSEMBLY INSTRUCTIONS...

  • Page 23: Troubleshooting Guide

    Shown in Fig —. To remove —. Remove —. Lower Cabinet Screws (2.6 × 12).........(A) × 5 Main P. C. Board The Main P.C. Board Battery Box The Battery Box Operational P.C. Board Screws (2.6 × 8)........(B) × 6 7. TROUBLESHOOTING GUIDE 7.1.
  • Page 24 7.2. Pulse Dialing Problems 7.3. Tone Dialing Problems (handset)

  • Page 25: Test Mode

    7.4. No Ringing Sound When Ring Signal is Input 8. TEST MODE...

  • Page 26: Bell Detector Circuit

    9. BLOCK DIAGRAM 10. CIRCUIT OPERATION 10.1. Bell Detector Circuit When the bell signal is input between T/R, the signal are outputted at the speaker via the following path: Tel line R1/C1 Pin 1 of IC1 Pin 8 of IC1 C625 Speaker 10.2.

  • Page 27: Attenuator Control

    10.3.1. Speakerphone Circuit 10.3.1.1. Function The circuit controls the automatic switching of the transmitted and received signals, to and from the telephone line, when the unit is used in the hands -free mode. 10.3.1.2. Circuit Operation The speakerphone can only provide a one-way communication path. In other words, it can either transmit an outgoing signal or receive an incoming signal at a given time, but cannot do both simultaneously.
  • Page 28 The attenuator control detects the setting of the volume control through Pin 24 of IC601 to automatically adjust for changing ambient conditions. 10.3.2. Telephone Line Interface 10.3.2.1. Circuit operation - On hook Q101 is open, Q101 is connected as to cut DC loop current and cut the voice signal.

  • Page 29: Caller Id Detect Circuit

    10.4. Caller ID Detect Circuit 10.4.1. Function (FSK signal) The caller ID is a changeable ID which the user of a telephone circuit obtains by entering a contract with the telephone company to utilize a caller ID service. For this reason, the operation of this circuit assumes that a caller ID service contract has been entered for the circuit being used.

  • Page 30: Block Diagram

    wave, and data 1 a 2200 Hz sine wave.There are two types of the message format which can be received: i.e. the single message format and plural message format. The plural message format allows to transmit the name and data code information in addition to the time and telephone number data.
  • Page 32 11.2. CPU DATA (IC801)
  • Page 34 11.3. RINGER IC (IC1)
  • Page 35 11.4. EEP ROM (IC802) 1. SCL SCL terminal is input terminal of Serial Clock to control transmit and receipt between Master and Slave. 2. SDA SDA terminal is input terminal, to forward the address and the mutual data between Master Device and Slave Device the mutual. This terminal needs the pull-up resistance external because output circuit of SDA uses Open Drain.
  • Page 36 WP terminal controls writing action. It is possible to do only reading action when high level input and it is possible to do reading and writing action when low level input. 11.5. EEP ROM DATA for KX-TSC35HKW 11.6. Speakerphone IC Data (IC601)
  • Page 37 Description Name A resistor to ground provides a reference current for the transmit and receive attenuators. RTX A resistor to ground determines the nominal gain of the transmit attenuator. The transmit channel gain is inversely proportional to the RTX resistance. Input to the transmit attenuator.

  • Page 38: Module Block Diagram

    Description Name XDC Transmit detector output. A resistor and capacitor at this pin hold the system in the transmit mode during pauses between words or phrases. When the XDC pin voltage decays to ground, the attenuators switch from the transmit mode to the idle mode. The internal resistor at nominally 2.6 kohms.

  • Page 39: How To Replace A Flat Package Ic

    Pin no. signal Function Enable +3V Power Supply — 0V Power Supply — Data Bus Line Data Bus Line Data Bus Line Data Bus Line Read / Write Enable Signal Data / Command Control Chip Signal Reset Signal Input 13. HOW TO REPLACE A FLAT PACKAGE IC 13.1.

  • Page 40: Terminal Guide Of Ics, Transistors And Diodes

    3. Being careful to not unsolder the tack points, slide the soldering iron along the tips of the pins while feeding enough solder to the tip so that it flows under the pins as they are heated. 13.3. Removing Solder from Between Pins 1.

  • Page 41: Cabinet And Electrical Parts

    15. CABINET AND ELECTRICAL PARTS...

  • Page 42: Accessories And Packing Materials

    16. ACCESSORIES AND PACKING MATERIALS...

  • Page 43: Replacement Parts List

    17. REPLACEMENT PARTS LIST 1. RTL (Retention Time Limited) Note : The marking (RTL) indicates that the Retention Time is limited for this item. After the discontinuation of this assembly in production, the item will continue to be available for a specific period of time. The retention period of availability is dependent on the type of assembly, and in accordance with the laws governing parts and product retention.
  • Page 44 5. RESISTORS & CAPACITORS Unless otherwise specified; All resistors are in ohms ( ) K=1000 , M=1000k All capacitors are in MICRO FARADS ( F) P= *Type & Wattage of Resistor 17.1. KX-TSC35HKW 17.1.1. CABINET AND ELECTRICAL PARTS...
  • Page 45 Ref. No. Part No. Part Name & Description Remarks PQAS57P03Z SPEAKER PQBC10347Z1 PUSH BUTTON, SP PHONE ABS-HB PQBH10023Y3 PUSH BUTTON, HOOK ABS-HB PQBX10351Z1 PUSH BUTTON, 19KEY ABS-HB PQBX10357Y1 PUSH BUTTON, NAVI+7KEY ABS-HB PQGD10165Z SHEET PAPER, TEL CARD PQGP10203Z1 PANEL, LCD PC-HB PQGV10042Z TRANSPARENT PLATE, TEL CARD COVER PC-HB...
  • Page 46 Ref. No. Part No. Part Name & Description Remarks Q406 2SD1819A TRANSISTOR(SI) Q421 2SD1819A TRANSISTOR(SI) Q423 PQVTFB1A4M TRANSISTOR(SI) Q424 2SD1819A TRANSISTOR(SI) Q425 UN5213 TRANSISTOR(SI) Q426 2SD1819A TRANSISTOR(SI) Q491 UN5213 TRANSISTOR(SI) Q492 UN5213 TRANSISTOR(SI) Q493 UN5213 TRANSISTOR(SI) Q501 2SB1218A TRANSISTOR(SI) Q502 2SD1819A TRANSISTOR(SI) Q602...
  • Page 47 Ref. No. Part No. Part Name & Description Remarks (CONNECTOR) CN801 PQJS24X54Z CONNECTOR (CRYSTAL OSCILLATORS) X801 PQVCL3276N6Z CRYSTAL OSCILLATOR X802 PQVBZTA3.58M CRYSTAL OSCILLATOR (JACKS) CN401 PQJJ1T030Z JACK, HANDSET CN402 PQJJ1C001Z JACK, HEADSET JJ101 PQJJ1T008X JACK, MODULAR JJ102 PQJJ1T008X JACK, TEL JACK (LCD) L5DCAGC00001 LIQUID CRYSTAL DISPLAY...
  • Page 48 Ref. No. Part No. Part Name & Description Remarks R201 ERJ3GEYJ103 R202 ERJ3GEYJ124 120K R203 ERJ3GEYJ103 R204 ERJ3GEYJ394 390K R205 ERJ3GEYJ562 5.6K R206 ERJ3GEYJ183 R207 ERJ3GEYJ103 R208 ERJ3GEYJ472 4.7K R209 ERJ3GEYJ104 100K R301 ERJ3GEYJ225 2.2M R302 ERJ3GEYJ685 6.8M R303 ERJ3GEYJ225 2.2M R304 ERJ3GEYJ475...
  • Page 49 Ref. No. Part No. Part Name & Description Remarks R483 ERJ3GEYJ275 2.7M R501 PQ4R10XJ334 330K R502 PQ4R10XJ334 330K R503 ERJ3GEYJ474 470K R504 ERJ3GEYJ474 470K R505 ERJ3GEYJ334 330K R506 ERJ3GEYJ222 2.2K R507 ERJ3GEYJ334 330K R508 ERJ3GEYJ335 3.3M R509 ERJ3GEYJ273 R510 ERJ3GEYJ394 390K R511 ERJ3GEYJ105...
  • Page 50 Ref. No. Part No. Part Name & Description Remarks R813 ERJ3GEYJ681 R824 ERJ3GEYJ104 100K R825 ERJ3GEYJ102 R826 ERJ3GEYJ102 R827 ERJ3GEYJ102 R828 ERJ3GEYJ102 R851 ERJ3GEYJ472 4.7K R853 ERJ3GEYJ105 R901 ERJ3GEYJ101 R902 ERJ3GEYJ103 R903 ERJ3GEYJ105 R904 ERJ3GEYJ564 560K R921 ERJ3GEYJ103 R922 ERJ3GEYJ103 R923 ERJ3GEYJ823 R924...
  • Page 51 Ref. No. Part No. Part Name & Description Remarks C203 ECUV1H222KBV 0.0022 C204 ECUV1C473KBV 0.047 C205 ECUV1C104KBV 0.1 C303 ECEA0JU331 C304 ECUV1H333KBV 0.033 C306 ECUV1H103KBV 0.01 C308 ECA0JM102B 0.001 C311 ECUV1C104ZFV C402 ECUV1C104KBV 0.1 C403 ECUV1C104KBV 0.1 C404 ECUV1C104KBV 0.1 C405 ECUV1C104KBV 0.1 C406...
  • Page 52 Ref. No. Part No. Part Name & Description Remarks C619 ECEA1EU4R7 C620 ECUV1H223KBV 0.022 C621 ECEA1AU101 C622 ECUV1C104KBV 0.1 C624 ECUV1H103KBV 0.01 C625 ECEA1AU101 C801 ECUV1H103KBV 0.01 C802 ECUV1C104ZFV C804 ECUV1H103KBV 0.01 C805 ECUV1H101JCV 100P C806 ECUV1H220JCV C807 ECUV1H220JCV C808 ECUV1H330JCV C809 ECUV1H330JCV...

  • Page 53: For Schematic Diagram

    Ref. No. Part No. Part Name & Description Remarks PQJA87S CORD, TEL LINE PQJA212M CORD, HANDSET PQJXC0102Z HANDSET PQKL10035Z2 STAND, WALL MOUNTING ADAPTOR ABS-HB PQQX13489Z INSTRUCTION BOOK (ENGLISH) PQQX13490Z INSTRUCTION BOOK (CHINESE) KRCBC130714B FERITE CORE PQPH89Y PROTECTION COVER PQPK13882Z GIFT BOX 18.
  • Page 54 21. SCHEMATIC DIAGRAM (OPERATION) 22. PRINTED CIRCUIT BOARD (OPERATION) 22.1. Component View 22.2. Flow Solder Side View NT1 / KXTSC35HKW...
  • Page 55 C805 R201 R507 R511 R804 R513 R514 C804 R803 R512 IC801 C509 C801 CN801 R443 Q501 R802 D304 D308 C803 R801 C802 R517 Q425 J803 C826 D203 R817 R209 BATTP R824 D310 C202 KX-TSC35HKW : MAIN BOARD : COMPONENT VIEW...
  • Page 56 C827 C204 R203 RESET D905 C822 D901 IC802 C821 D906 IC201 D902 C820 C819 R826 R208 D903 R202 R207 C824 C816 C205 R825 D907 C815 R827 D202 C817 C818 R828 D904 D908 Q201 KX-TSC35HKW : MAIN BOARD : BOTTOM VIEW...
  • Page 57 STB3 STB4 STB4 STB4 STB5 STB5 STB5 STB6 STB6 STB6 STB7 STB7 STB7 STB8 STB8 STB8 STB9 STB9 STB9 STB10 STB10 STB10 LED801 SP_LED SO_LED ANS_LED SP_LED NEW_NSG_LED LED803 BELL_LED BELL_LED LED802 MICM BELL_LED MICP KX-TSC35HKW : SCHEMATIC DIAGRAM (OPERATION)
  • Page 58 CN801 PQUP11143ZA KX-TSC35HKW : OPERATION BOARD : COMPONENT VIEW...
  • Page 59 STOP STB8 NAVI_DOWN LED803 ANS_LED BELL_LED STB6 STB7 LED802 DIAL_LOCK PAUSE KIN1 STB10 REDIAL STB4 KIN4 MICM SP_LED KIN2 STB9 MICP FLASH STB3 STB1 STB2 KIN3 HOLD STB5 SP_PHONE VOL_DOWN VOL_UP MUTE LED801 KX-TSC35HKW : OPERATION BOARD : BOTTOM VIEW...
  • Page 60 Ringer Q405, Q406 Q108 Q101, Q103 D101 Handset LINE Transmit Dial Speaker Receiving IC201 IC801 Q421, Q424 Handset Tone Detection EEPROM Sending Data IC802 C-ID Speaker SP-PHONE IC601 Board Switch FSK DATA KX-TSC35HKW : BLOCK DIAGRAM...
  • Page 61 C625 10V100 C603 K0.033 IC601 D651 R611 R606 30K 28 RAX C626 C654 R607 68K 27 RXI IC651 R612 C609 K0.1 26 RXO C615 2.2K 25 ACF R654 R605 2.2M R619 R602 C606 6.3V22 24 VLC D652 5 IF R613 100K TP612 C610 50V1 2.7K...
  • Page 62 (39) D552 D551 390K 220K K0.1 (40) (41) D554 D553 Headset Set & Headset Set Incoming Signal (42) (43) Headset Set & Headset Set Outgoing Signal P.C.B Speaker Phone Incoming Signal Speaker Phone Outgoing Signal KX-TSC35HKW : SCHEMATIC DIAGRAM (MAIN)
