Asus Pro H810M-C Quick Start Manual
  1. Manuals
  2. Brands
  3. Asus Manuals
  4. Motherboard
  5. Pro H810M-C
  6. Quick start manual
Asus Pro H810M-C Quick Start Manual

Asus Pro H810M-C Quick Start Manual

Hide thumbs Also See for Pro H810M-C:

Advertisement

Table of Contents

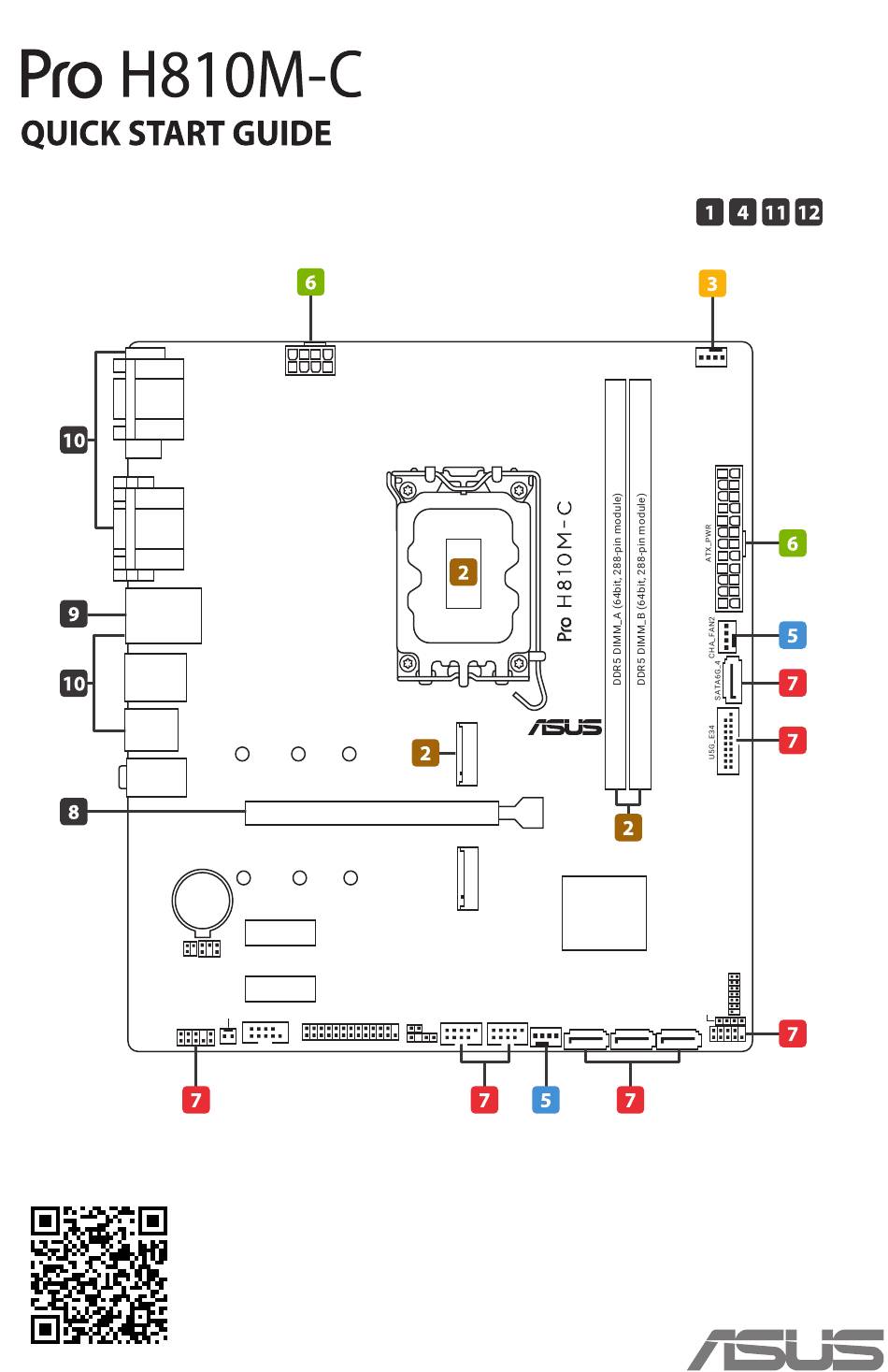

The items labeled below correspond to the installation steps, for steps
and more information on the steps, please refer to the rest of the guide.
DP
VGA
HDMI
COM1
DVI
LAN_USB_56
KBMS_U5G_E12
U10G_2
U10G_C1
AUDIO
BATTERY
SMBUS
COM_DEBUG
F_AUDIO
Front Panel Audio
SEEKING A SOLUTION?
Scan now for assistance
Support
CPU_12V
2280
2260
2242
PCIEX16(G5)
2280
2260
2242
PCIEX1(G4)_1
PCIEX1(G4)_2
MONO_OUT
COM2
LPT
LGA1851
M.2_1(SOCKET3)
M.2_2(SOCKET3)
USB_9_14
USB_78
CLRTC
CHA_FAN1
CHASSIS
USB 2.0
Chassis Fan
CPU_FAN
Intel
®
H810
TPM
SPEAKER
SATA6G_1
SATA6G_2
SATA6G_3
F_PANEL
Chassis Fan
USB 5Gbps
Front Panel System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Pro H810M-C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Asus Pro H810M-C

Summary of Contents for Asus Pro H810M-C

  • Page 1 The items labeled below correspond to the installation steps, for steps and more information on the steps, please refer to the rest of the guide. CPU_FAN CPU_12V HDMI COM1 LGA1851 LAN_USB_56 Chassis Fan KBMS_U5G_E12 U10G_2 M.2_1(SOCKET3) U10G_C1 USB 5Gbps 2280 2260 2242 AUDIO...

  • Page 2: Install Key Components

    Q25159 / First Edition / November 2024 Prepare the components Memory M.2 SSD Chassis CPU Cooler SATA device Power supply unit Graphics card NOTE: The components listed above are recommendations, please prepare components according to your needs. Install key components •...
  • Page 3 • Install the M.2 SSD Remove Remove M.2 slot Optional M.2 slot OPTIONAL Install the bundled M.2 rubber when installing a single OPTIONAL sided M.2 module Install the bundled M.2 rubber when installing a single sided M.2 module Make sure of the following: •...
  • Page 4 Install the cooling system • Air Cooler CPU_FAN / CPU_OPT • AIO Cooler CPU_FAN / CPU_OPT (connect to radiator) AIO_PUMP / W_PUMP (connect to pump) NOTE: Please refer to these manual(s) for more information: Cooler Chassis Install the motherboard into the chassis For non pre-mounted I/O shield models only NOTE: Please refer to the manual(s) for more information:...
  • Page 5 Connect cables from Chassis Connect to chassis fan and ARGB/RGB headers Chassis fan ARGB header RGB header Ground Data +12V NOTE: Please refer to the manual(s) for more information: Motherboard Chassis Install and connect the power supply unit (PSU) Make sure the PSU is secured to the chassis using screws, and that the chassis has proper airflow NOTE: Input: AC 100~240V, 6A/3A, 50/60Hz...
  • Page 6 Connect cables from Chassis Connect everything to the motherboard • Front panel system header • Front panel audio header Power +PWR_LED- PWR_BTN PIN 1 +HDD_LED- RESET • USB connector/header Connect cables from PSU • SATA NOTE: Please refer to the manual(s) for more information: NOTE: Please refer to the manual(s) for more information: Motherboard...
  • Page 7 Connect to the Internet via Ethernet/Wi-Fi antenna NOTE: Please refer to the manual(s) for more information: Motherboard Connect peripherals (monitor, keyboard, mouse, etc.) Turn on the PSU and your PC NOTE: Please check the Q-LEDs or Q-LED Core on selected motherboards when powering on your PC for system status.
