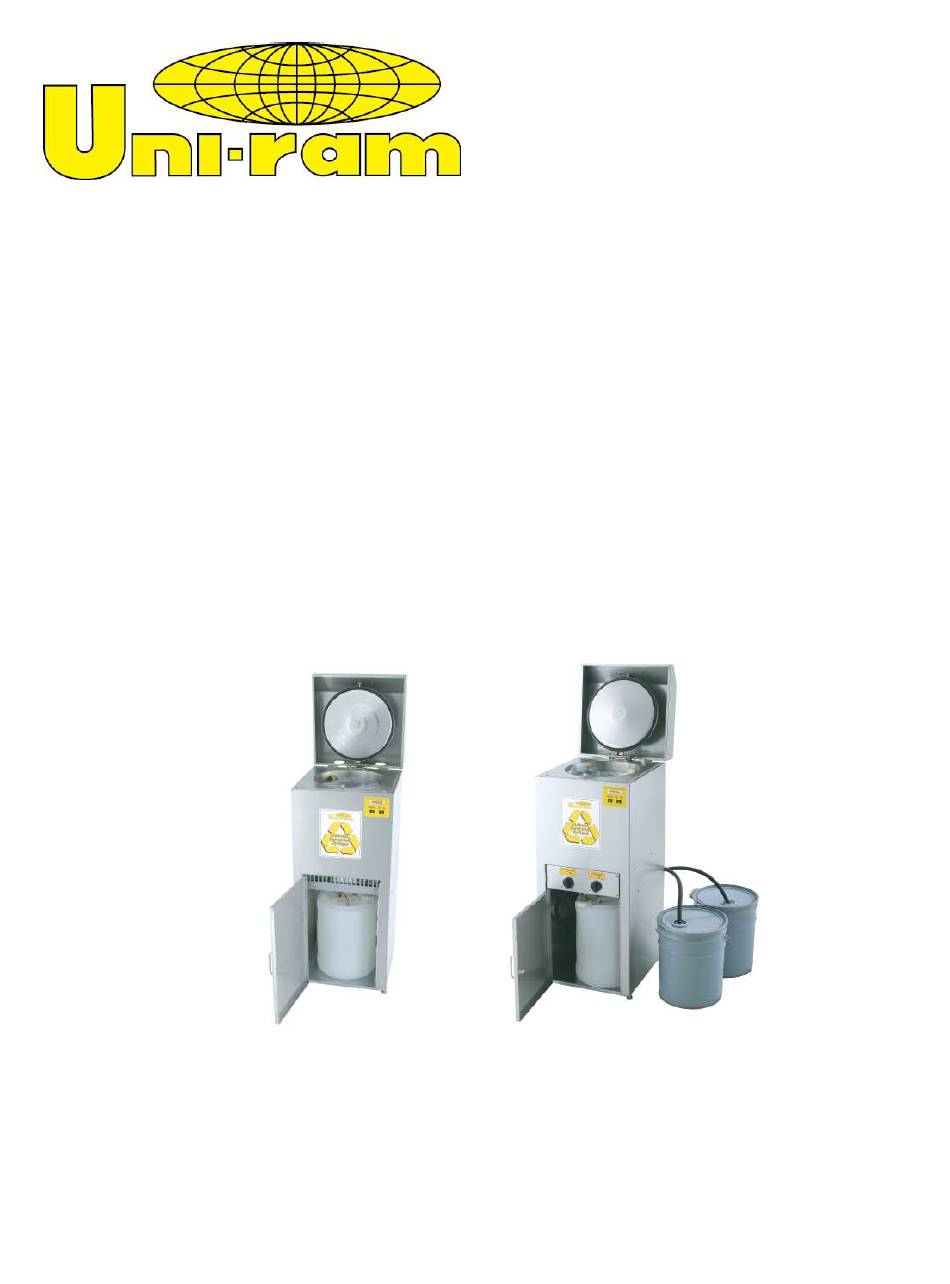

USER MANUAL
URS500 & 600 SERIES
MODELS
URS500 / 500SS / 500EP2 / 500EP2SS /
600SS / 600EP2 / 600EP2SS
URS500EP2 / 600EP2
URS500 / 600
UNI-RAM CORPORATION • ONTARIO • CANADA
Revision 2025-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the URS500SS and is the answer not in the manual?

Questions and answers

Related Manuals for Uni-ram URS500SS

Summary of Contents for Uni-ram URS500SS

  • Page 1 USER MANUAL URS500 & 600 SERIES MODELS URS500 / 500SS / 500EP2 / 500EP2SS / 600SS / 600EP2 / 600EP2SS URS500EP2 / 600EP2 URS500 / 600 UNI-RAM CORPORATION • ONTARIO • CANADA Revision 2025-01...

  • Page 2: Safety Approvals

    Revision 2025-01 INTRODUCTION Uni-ram holds many patents on designs used in its innovative products. Every machine is tested for com- pliance with Quality Assurance standards. Follow the instructions on preparation, use and operation to operate this machine safely and eff ectively. Ensure that this manual is readily available to the operator at all times.

  • Page 3: Features And Specifications

    Recyclers can be used with any Uni-ram Automatic Apray Gun Cleaner. The “E” models are designed to be linked directly to a Uni-ram “E” series Automatic Spray Gun Cleaner or to an external container. The direct connection creates a self-contained Recycling System allowing Timer-controlled Transfer In and Out between the Solvent Recycler and the other component.
  • Page 4 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 Safety Cover Auto Lock The Safety Cover Auto Lock System is a new safety feature. It prevents the operator from inadvertently opening the Safety Cover and Distillation Tank Lid while the solvent recycler is operating, thereby preventing the operator from exposure to the hot surface of the Distillation Tank Lid as well as boiling liquids in the distillation tank.

  • Page 5: Preparation And Setup

    The connection must be made by a qualifi ed Electrician in accordance with the National Electrical Code. This instruction is noted and required under Uni-ram’s Certifi cation to UL standard 2208 and CSA Standard 22.2 number 30 and 88.
  • Page 6 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 present of Class 1, Division 2, Group D. Select a Location That Meets EACH AND EVERY Requirement, Described Below. 1) Comply with the instructions in the section: CAUTIONS AND WARNINGS. 2) Ensure that the safety lid and door freely opens fully and a container for receiving the distilled solvent can freely move in and out of the cabinet.
  • Page 7 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 1) Transferring Solvent To and From a Spray Gun Cleaner Dirty Solvent In Clean Solvent Out Blue Airline - At- tach to Tee and Gun Cleaner Air Supply Input, Requires Fitting (not supplied) Attach Moisture Filter...
  • Page 8 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 2) Transferring Solvent To and From a Drum / Container Attach Air Supply fi tting (not supplied) and/or Moisture Filter (not supplied) Connect the end of the hose with the “Solvent In” label to the “Solvent In” port on the recycler. Hand tight- en.

  • Page 9: Operating Procedures

    MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 OPERATING PROCEDURES Wear protective clothing in accordance with local safety and environmental regulations. Use face goggles and gloves as a minimum. Use an apron and respirator if required. Summary of Operating Steps: 1) Open the Tank Lid and Safety Cover 2) Transfer Solvent to the Recycler Tank 3) Position Solvent Receiving Pail...
  • Page 10 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 b) For models with the Solvent Transfer System (EP2 Models): • Open the Transfer Valve by turning the handle counter-clockwise 90°. • Turn the Filling Timer knob clockwise fully. Dirty solvent will fl ow from the Transfer Port into the Liner Bag and stop when the timer runs out.

  • Page 11: Temperature Set

    MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 To Change the Temperature Set Point: Make sure the “HEAT” and “FAN” lights are off . Press and hold the “STOP” button while pressing the “START” button repeatedly to cycle through the 6 possible Set Points. If you go past the desired Set Point, continue to press the “START”...
  • Page 12 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 Note: There will be about 1/8 Gal (500 ml) of solvent remaining in the Distillation Tank after recycling due to condensation. This solvent, If left in the tank, can cause corrosion. Dirt and debris left in the tank can prevent full heat from reaching the dirty solvent during recycling.
  • Page 13 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 THEORY OF OPERATION - DISTILLATION PROCESS Waste solvent consists of the original solvent plus liquid and solid materials picked up during use of the solvent. Recycling separates the original solvent from the waste materials. During the recycling process, the distillation tank fi...
  • Page 14 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 Maintenance Remove the power supply or switch off the main switch before all WARNING maintenance and service work. Please note! Only use original spare parts for maintenance and repairs. Ensure that the warning stickers present and the lights on the URS500/600 are clearly visible at all times so that they can alert the URS500/600 users to safe use.
  • Page 15 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 Condenser fins Cooling air outlet Cooling air inlet Figure 1. The rear side of the URS500 1.2. Cleaning the condenser The condenser must be regularly checked and cleaned to ensure that it is free of dust and waste. Dust and waste that has collected on the other side of the condenser is not visible in the URS500/600.
  • Page 16 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 1. Install the new lid gasket by hand, by gradually pressing the ring all the way around with your fingers. It is important that the ring is placed flat and no deformations are visible. This can be checked by the horizontal seam on the ring, which must be straight along its entire length.
  • Page 17 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 1. Clean the cap of the condenser block. It is important that all openings in the cap are free. If a layer of lacquer / residue is blocking the openings, remove it with a small drill, or allow the cap to soak in thinner and then scrape the dirt off with a metal pin.

  • Page 18: Troubleshooting Guide

    Carry out each action step until a solution is found. If the recommended actions do not solve the problem call Uni-ram Service in North America or contact a qualifi ed Service Technician. Caution: Disconnect the power supply before conducting maintenance or service.
  • Page 19 Temperature Set Point. pressure Sections on Bag are brown and 1) Use of inferior low 1) Use new genuine Uni-ram high tempera- thin due to High Temperature temperature bag. ture Liner Bag and recycle. 2) Temperature Set 2) Reduce the Temperature Set Point and Point is too high.
  • Page 20 3 TIMES Condenser is overheating or ther- Clean dirty Condenser following mostat is faulty. Service Procedure 1. If Ther- mostat is faulty contact Uni-ram Service 2 TIMES 4 TIMES If code 23 condition lasts over 10 1) Clean dirty Condenser. See minutes, this code will show and Service Procedure 1.
  • Page 21 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 ERROR Flashing LED Description Action Required CODE Lights READY READY 3 TIMES 2 TIMES Micro Controller has been reset Press “STOP” and then “START” due to power interruption or drop buttons to resume operation.

  • Page 22: Service Procedures

    MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 SERVICE PROCEDURES 1) CLEAN CONDENSER Using a brush attachment, vacuum the condenser at the back of the unit. 2) CLEAR BLOCKED SOLVENT FLOW PATH CAUTION: WEAR SAFETY GOGGLES. A blockage in the solvent fl ow path (Vapour Outlet - Condenser - Solvent Outlet Tube) can cause solvent to leak.
  • Page 23 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 4) INCREASE LID TENSION (BY ADJUSTING SPRING BOLT) CAUTION: SHOULD BE DONE ONLY AS A LAST RESORT - FIRST CHECK FOR A WORN LID GASKET, A BLOCK- AGE IN THE SOLVENT FLOW PATH , LOOSE HINGE OR CROSS BAR BOLTS OR A SET POINT THAT IS TOO HIGH FOR THE SOLVENT BEING RECYCLED.

  • Page 24: Replacement Parts

    MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 REPLACEMENT PARTS DESCRIPTION PART NO. SAFETY COVER 770-3311 DIAPHRAGM PUMP UDP4TA DOOR HANDLE & 2 SCREWS 120-318F & 99-404S TRANSFER HOSE KIT (E MODELS ONLY) KIT-TRANSHOSES-A AIR SUPPLY KIT (E MODELS ONLY) KIT-AIRSUPPLY-E LID GASKET, NEOPRENE 770-2150N...
  • Page 25 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500...
  • Page 26 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500 SERVICE PARTS ITEM PART NO DESCRIPTION 600-3000F URS500/600 CABINET WITH DOOR 600-3210 DOOR WELDED ASSY, WITH HINGES AND LATCH 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133 LOWER BACK PANEL 320-3253 CARRYING HANDLE 110-531N...
  • Page 27 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500SS...
  • Page 28 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500SS SERVICE PARTS ITEM PART NO DESCRIPTION 600-3000F URS500/600 CABINET WITH DOOR 600-3210 DOOR WELDED ASSY, WITH HINGES AND LATCH 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133 LOWER BACK PANEL...
  • Page 29 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500EP2...
  • Page 30 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500EP2 PART LISTS ITEM Part NO DESCRIPTION 500-3000PF URS500/600EP2CABINET WITH DOOR 900-3210 URS900/URS500P2 DOOR SHELL WELDMENT ASSY 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133P LOWER BACK PANEL , FOR URS500/600 P2 UDP2TA 2”...
  • Page 31 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 POWER BOARD 100-120VAC OR UNIVERSAL AND SUPPORT 500-4300 ASSEMBLY 600-4230 FAN 8”, 5 BLADED, 5/16” BORE, CW 500-4728 PLUG,EXPLOSION PROOF,20A,125VAC 500-5110 CONDENSER FOR URS500/600 1/2” DIA DISK, NC, OPENS AT 75 DEG C,THERMOSTAT, CON- 900-5152 DENSER, 75ºC,TYPE 36T21, STYLE 13775, BLACK BASE 600-8120...
  • Page 32 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500EP2SS...
  • Page 33 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500EP2SS SERVICE PARTS ITEM PART NO DESCRIPTION 500-3000PF URS500/600EP2CABINET WITH DOOR 900-3210 URS900/URS500P2 DOOR SHELL WELDMENT ASSY 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133P LOWER BACK PANEL , FOR URS500/600 P2 UDP2TS DIAPHRAGM PUMP, 2”, DELRIN, SS BALLS, SS BARBS UDP4TS...
  • Page 34 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS500EP2SS SERVICE PARTS ITEM PART NO DESCRIPTION 600-4230 FAN 8”, 5 BLADED, 5/16” BORE, CW 500-4728 PLUG,EXPLOSION PROOF,20A,125VAC 500-5110SAF SS316L CONDENSOR 1/2” DIA DISK, NC, OPENS AT 75°C,THERMOSTAT, CONDENS- 900-5152 ER, 75ºC,TYPE 36T21, STYLE 13775, BLACK BASE 600-8120S...
  • Page 35 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600...
  • Page 36 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600 SERVICE PARTS ITEM PART NO DESCRIPTION 600-3000F URS500/600 CABINET WITH DOOR 600-3210 DOOR WELDED ASSY, WITH HINGES AND LATCH 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133 LOWER BACK PANEL 320-3253 CARRYING HANDLE 110-531N...
  • Page 37 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600SS...
  • Page 38 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600SS SERVICE PARTS ITEM PART NO DESCRIPTION 600-3000F URS500/600 CABINET WITH DOOR 600-3210 DOOR WELDED ASSY, WITH HINGES AND LATCH 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133 LOWER BACK PANEL 320-3253 CARRYING HANDLE 110-531N...
  • Page 39 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600EP2...
  • Page 40 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600EP2 SERVICE PARTS ITEM PART NO DESCRIPTION 500-3000PF URS500/600EP2CABINET WITH DOOR 900-3210 URS900/URS500P2 DOOR SHELL WELDMENT ASSY 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133P LOWER BACK PANEL , FOR URS500/600 P2 UDP2TA 2"...
  • Page 41 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600EP2 SERVICE PARTS ITEM PART NO DESCRIPTION TANK FILLING MANUAL VALVE KIT, BRASS, 900-8250 FOR ALL EP2 MODEL COPPER FILLING TUBING WELDED WITH 750-3323 FITTING, FOR P2 600-4100 URS600 MOTOR ASSEMBLY, 1/30HP, 208-240V 600-4300 POWER BOARD 220-240VAC AND SUPPORT ASSY.
  • Page 42 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600EP2SS...
  • Page 43 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600EP2SS SERVICE PARTS ITEM PART NO DESCRIPTION 500-3000PF URS500/600EP2CABINET WITH DOOR 900-3210 URS900/URS500P2 DOOR SHELL WELDMENT ASSY 600-3131F REAR TOP PANEL WITH RIVET NUT 600-3133P LOWER BACK PANEL , FOR URS500/600 P2 UDP2TS DIAPHRAGM PUMP, 2”, DELRIN, SS BALLS, SS BARBS UDP4TS...
  • Page 44 MANUAL - SOLVENT RECYCLERS - URS500, 600, 500EP2, 600EP2 Revision 2025-01 URS600EP2SS SERVICE PARTS ITEM PART NO DESCRIPTION 600-4100 URS600 MOTOR ASSEMBLY, 1/30HP, 208-240V 600-4300 POWER BOARD 220-240VAC AND SUPPORT ASSEMBLY 600-4230 FAN 8”, 5 BLADED, 5/16” BORE, CW 500-4729 PLUG,EXPLOSION PROOF,20A,250VAC 500-5110SAF SS316L CONDENSOR...
  • Page 45 “Conditions of Warranty” as consumables are not covered. Uni-ram reserves the right to direct the customer to ship the unit collect to the Uni-ram factory or to an ap- proved Service Center for repair using the Uni-ram Return Goods Procedure or to repair the unit on-site.
