makute SG111 Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
SPRAY GUN
SG111

Advertisement

loading
Need help?

Need help?

Do you have a question about the SG111 and is the answer not in the manual?

Questions and answers

Related Manuals for makute SG111

Summary of Contents for makute SG111

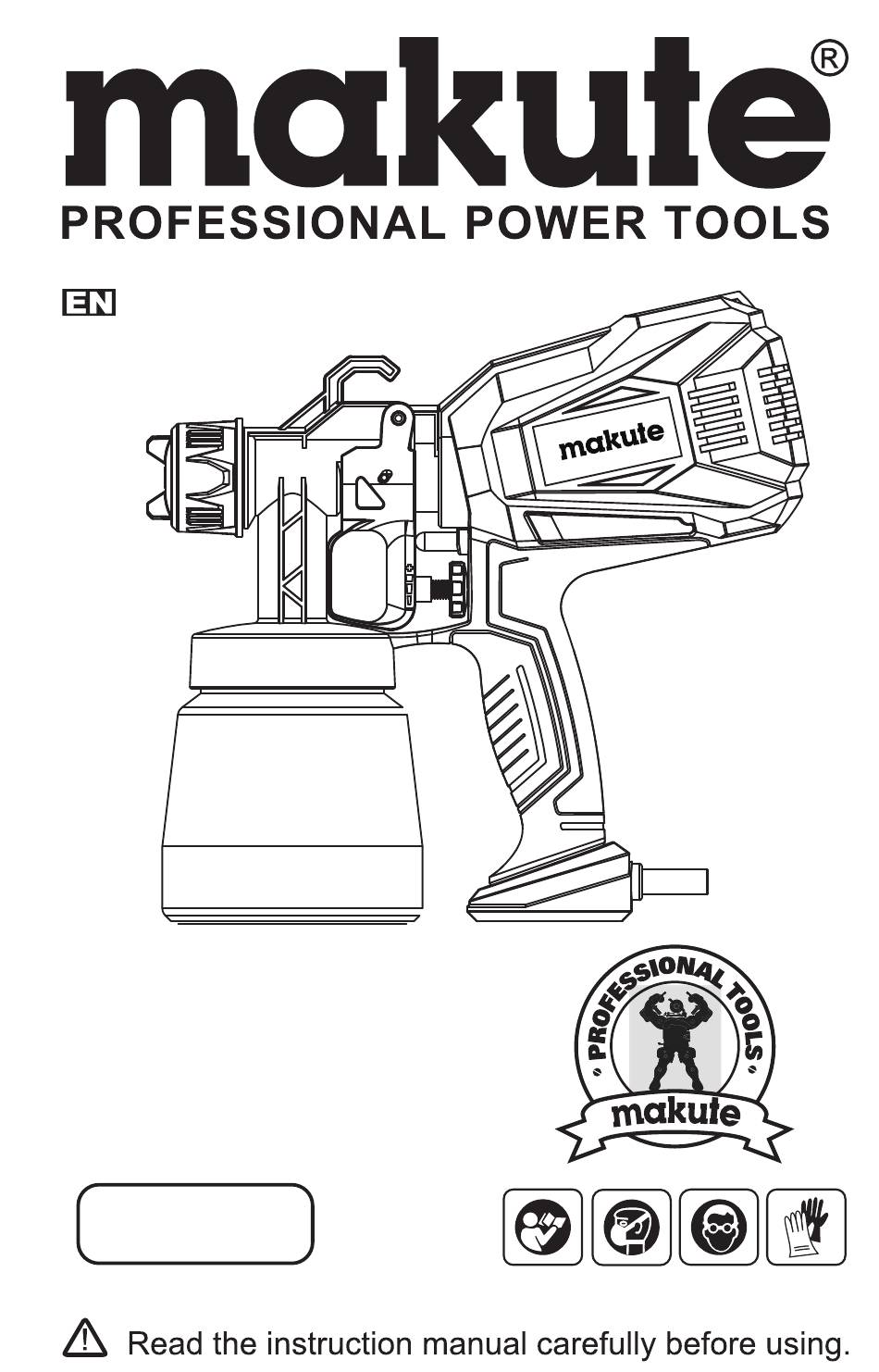

  • Page 1 SPRAY GUN SG111...

  • Page 2: How To Use

    .com INSTRUCTIONS FOR HVLP ELECTRIC SPRAY GUN (CX49) Before using the gun, please read this manual thoroughly. Any improper use can cause damage or a serious hurt, even lead to death. I) Function Suitable for painting furniture, fences, doors, windows, walls, ceiling, and for car repairing, high altitude operation and, and so on.
  • Page 3 .com 2）Adjust the suction tube a) If spraying upward, the inclined end of the straw should point to the back of the gun. b) If spraying downward, the inclined end of the straw should point to the front of the gun.
  • Page 4 .com 3）Pour material into container, make sure not to exceed 800ml. 4）Remove the motor Hold the spray gun with your hand. At the same time, hold the motor handle by hand and rotate it 90 ° counterclockwise. Pull out to remove the motor from the spray gun.
  • Page 5 .com 5）Connect the spray gun body to the motor Hold the spray gun by hand, align the slot on the spray gun with the slot on the motor, and then insert it (as shown in the figure). Hold the motor handle by hand and rotate the right hand 90 ° clockwise.
  • Page 6 .com 7）Turn on the power switch and press the trigger to spray paint. III) How To Spray Properly: EVEN COAT THROUGHOUT Correct: Keep stroke smooth and at even speed. Incorrect: Do not flex wrist while spraying.

  • Page 7: Troubleshooting

    .com IV) WARNING！ Keep your workplace clean and tidy, never use the tool in hazardous areas that contain flammable liquids, gasses or dusts. Only use paints, solvents or other materials with a flash point of 73 °F(23°C) or higher.
  • Page 8 .com 3.nozzle seal broken 3.replace 1. viscosity too large 1.thin 2.volume too large 2.adjust the nut C. droplet too large 3.nozzle clogged 3.clean 4.pressure not enough 4. tighten container 1.material in container is running out 1. refill D. spray pulsates 2.
  • Page 9 .com...
