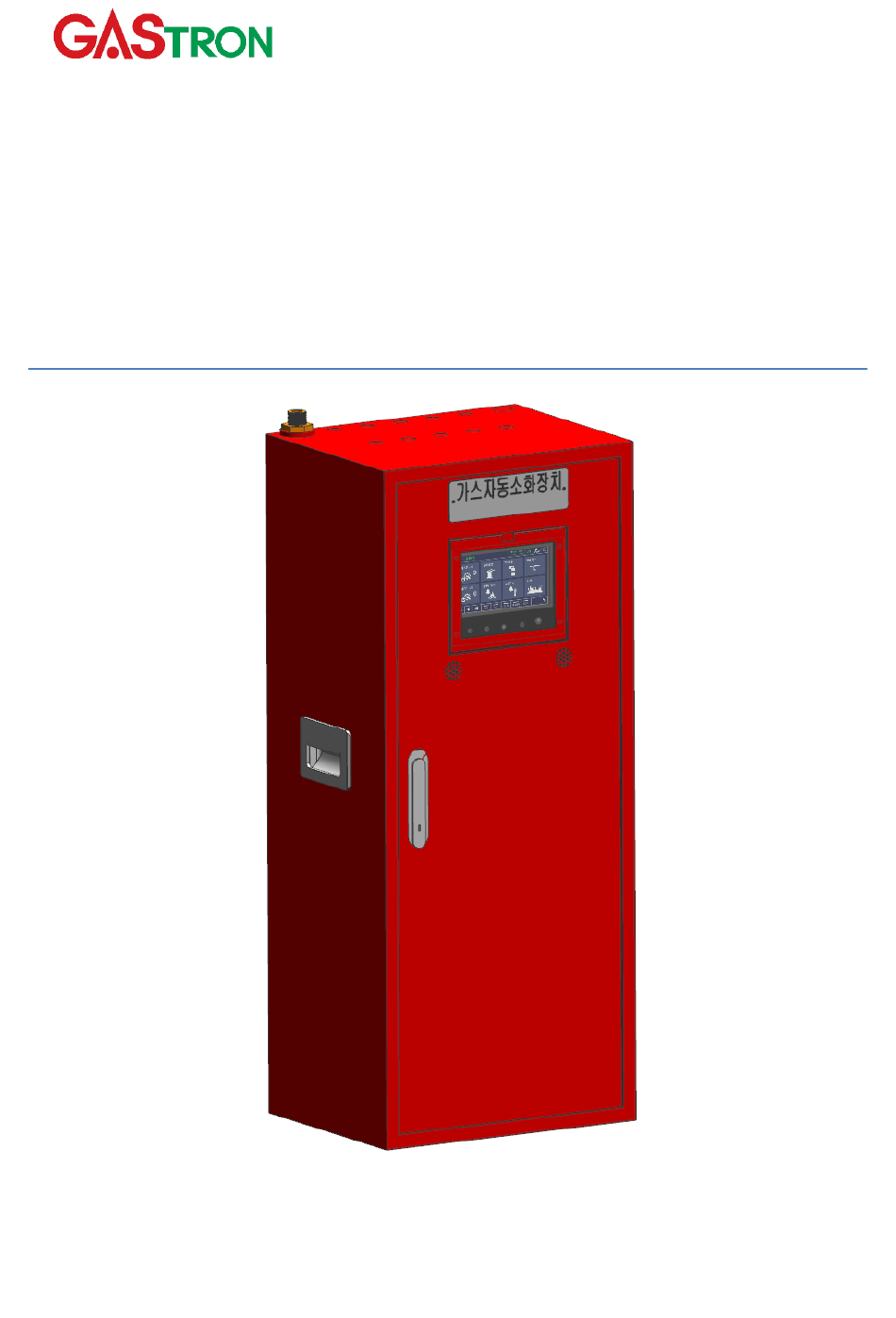

- Page 1 AFC-100 Instruction Manual Revision: 1.0 Please read carefully for proper use.
- Page 2 Copyright ⒞GASTRON, Co., LTD. All rights reserved. Thank you very much for purchasing a Gastron Co., Ltd. product. Gastron Co., Ltd. is a specialized company in Safety Detector Systems, recognized by many consumers for our top-quality and user-friendly products. We are always committed to being close to our consumers, offering the products they need, and continuously researching and developing industrial safety devices that satisfy our customers.
-
Page 3: Table Of Contents
AFC-100 Instruction TABLE OF CONTENTS 1. Overview ..........................4 2. Feature ..........................5 3. System Specifications ......................7 3.1. General Specifications ....................7 3.2. Environmental Specifications ..................7 4. Detector Specifications ......................8 4.1. Flame Detector Specification ..................8 4.2. Heat Detector Specification ..................8 5. System Configuration and Description ................9 5.1. -
Page 4: Overview
AFC-100 Instruction 1. Overview The gas automatic extinguishing system detects heat or flames caused by a fire and automatically discharges the extinguishing agent under pressure to extinguish the fire. It is a fixed extinguishing system. It consists of a detection part, discharge nozzle, discharge guide pipe, extinguishing agent ... -
Page 5: Feature
AFC-100 Instruction 2. Feature • Automatic and Manual Extinguishing Function • Automatically discharges the extinguishing agent in case of a fire, and can also manually discharge the extinguishing agent by activating the manual button in an emergency. • Equipped with Backup Power (Ni-Cd Battery) •... - Page 6 AFC-100 Instruction [Pic 1. AFC-100] PAGE 6 of 58 Rev 0.5...
-
Page 7: System Specifications
AFC-100 Instruction 3. System Specifications 3.1. General Specifications Items Specification Description Product Name AEGIS Fire Extinguish Controller(AFC)-100-3 Dimensions 420 x 1000 x 330 (W x H x D / mm) 12kg : Class 4 Flammable Extinguishing Agent IG-100 2m 3 Non-conductive, Natural Fire... -
Page 8: Detector Specifications
AFC-100 Instruction 4. Detector Specifications 4.1. Flame Detector Specification Items Specification Description Product Name GTF-1100U ultraviolet sensor:185~260nm WaveLength infrared sensor:4.5~4.8 μm Normal Monitoring Distance Field of view Horizontal: 100°, Vertical: 100° Output 20mA current, fire relay, fault relay, RS-485 Dimension Detector : 76(W) ×... -
Page 9: System Configuration And Description
AFC-100 Instruction 5. System Configuration and Description 5.1. System Configuration and Description Items Description Agent Fire extinguishing agent for fire suppression (IG-100, CO2) Solenoid Valve Valve for hitting and releasing chemicals (DC24V @ 1.5A) Flexible Cable Cable with correction radiating Pressure Switch Switch to check drug release status (250V @ 3A / Operating: 0.2 MPa) -
Page 10: Module Specifications
Real-time cylinder weight detection Ext Interface Modbus RTU(RS485) Auto Damper Controller function By digital communication (RS485) with AFC-100, the situation Open/close dampers to shut off gas and oxygen Ext Interface Modbus RTU(RS485) Manual BOX function Manually discharge fire extinguishing agent by... -
Page 11: External Configuration And Description
AFC-100 Instruction 5.3. External configuration and description [그림 6-1. AFC-100 External Configuration] Name Descriptions 7” Full Color TFT Touch/ Monitoring Display Touch TFT & Protective Cover Window Buzzer Output Department Piezo Buzzer 90 dB @ 1m / Beep Speaker Output Department... -
Page 12: Internal Configuration And Description
AFC-100 Instruction 5.4. Internal Configuration and Description [그림 6-2 AFC-100 Internal Configuration] Name Descriptions Checking the amount of fire extinguishing agent remaining and Pressure Gauge abnormalities (IG-100) Medicine Release Hose Pressure Switches 250V @ 3A / Operating : 0.2 MPa... -
Page 13: Installation
AFC-100 Instruction Loadcell Check the remaining amount and weight of the fire extinguishing agent Checking the amount of fire extinguishing agent remaining and GTW-1000 Weight Sensor abnormalities (CO2) 6. Installation 6.1. System Power & Signal Configuration AC220V A circuit breaker is installed to prevent electric leakage. -
Page 14: Terminal Pcb I/O Port Wiring And Configuration
AFC-100 Instruction 6.2. Terminal PCB I/O Port Wiring and configuration PAGE 14 of 58 Rev 0.5... - Page 15 AFC-100 Instruction PAGE 15 of 58 Rev 0.5...
