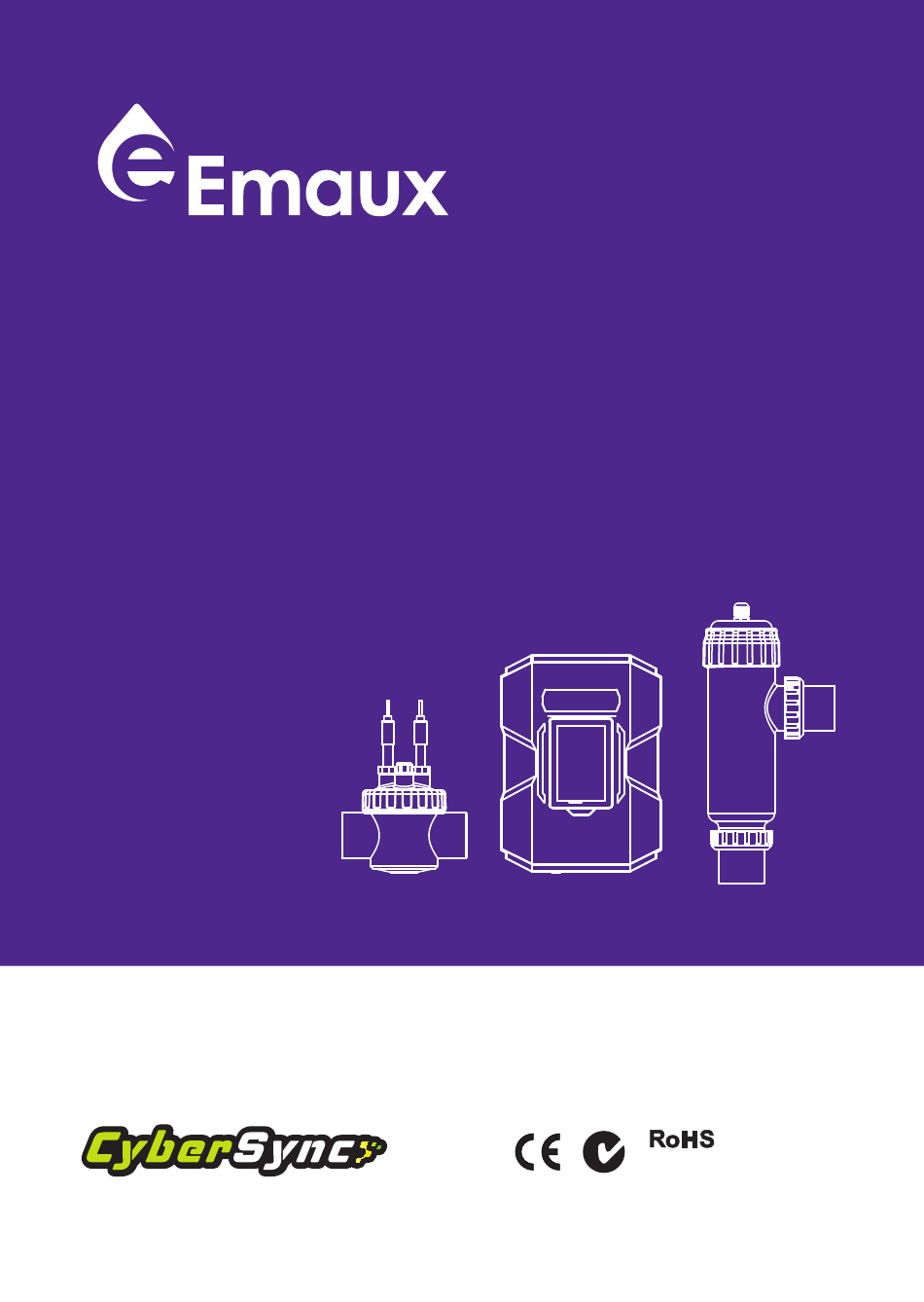

- Page 1 CyberSync Chemical controller INSTALLATION AND OPERATION MANUAL USER MANUAL DIRECTIVE 2011/65/Eu 24121180...
-
Page 2: Table Of Contents
TABLE OF CONTENT ..1. SAFETY WARNINGS 2. SAFE POOL SANITIZING WORKING PRINCIPLE ..3. INTRODUCTION ..4. PRODUCT FEATURE ..5. INSTALLATION ..6. CONTROL AND SETUP ..6.1 MAIN PAGE 6.2 GENERAL DEVICE CONDITION 6.3 SETUP 6 .3.1 ELECTROLYSIS 6 .3.2 MEASUREMENT 6 .3.3 DOSING 6 .3.4 DEFAULT AND GENERAL SETUP... -
Page 3: Safety Warnings
1. SAFETY WARNINGS This appliance must be installed in accordance with national wiring codes and with a means of disconnection incorporated in any fixed wiring. High voltage can shock, burn, or case death or serious property damage. 1. In order to reduce the risk of electric shock DO NOT use an extension cord to connect the unit to electric supply. -
Page 4: Safe Pool Sanitizing Working Principle
Cl + 2NaHO NaCl NaClO H O 2.1 WATER CHEMISTRY: It is important to note that the EMAUX Chlorinator does not maintain the water chemistry of your swimming pool water; it simply produces chlorine from a mild salt solution. P3 SAFE POOL SANITIZING WORKING PRINCIPLE... -
Page 5: Salt Level
Metals 0ppm 2.2 CHLORINE LEVEL CALCULATION It is important to note that the EMAUX Chlorinator does not maintain the water chemistry of your swimming pool water; it simply produces chlorine from a mild salt solution. 65.000liter x 0.002g/liter Required chlorine production rate(g/hr)= =32.5g/hr... -
Page 6: Type Of Salt
Salt required according to the volume of the pool: Pool volume (m3) Salt (kg) Pool volume (Gallon) Salt (Pound) 2,642 3,963 5,283 6,604 7,925 9,246 10,567 13,209 15,850 18,492 21,134 23,775 26,417 29,059 31,700 1,056 39,626 1,320 Note: Table based on 4000 ppm of salt per m3 of water. 2.4 TYPE OF SALT The most common salt used in swimming pools with Salt Electrolysis is 99% pure Sodium Chlorine (NaCl). -
Page 7: Introduction
3. INTRODUCTION The Emaux CyberSync Chemical Controller is an innovative saline electrolysis system designed to enhance swimming pool water quality and transform your pool into a smart pool. This advanced product generates chlorine from both regular and seawater through electrolysis, providing a more environmentally friendly alternative to traditional chlorine chemicals. -
Page 8: Product Specification
Product specification CyberSync Pool Station Input Voltage/ Input Voltage/ Cell Concrete Frequency US Frequency EU Salt Level Output Pool Function Rating (m³) Version Version gram/h Code Model 110-120V 220-240V 9130601 CS-A20 3000-5000 ppm IPX4 Chlorinator 50 Hz/60 Hz 50 Hz/60Hz 110-120V 220-240V 9130602... -
Page 9: Installation
5. INSTALLATION: Open the cover Insert the tools (screw driver) near the buckle position Prise up the cover and then push it open Connections: Emaux Chemical controller can connect with 3 dosing pump, 1 circulation pump and 4 devices. INSTALLATION P8... - Page 10 Hot contact vs Cold contact -Hot contact (Dosing pump): The contact has electricity which same as input power of this chemical controller. You can direct connect dosing pump L/N to the connector for use Connection: Device power > 0.2A (230V, 50W, 120V 25W) Cold contact (Device relay): the contact is a switch only.
-
Page 11: Control And Setup
6. CONTROL AND SETUP The lower the water's temperature, the lower the salt water's conductivity will be. This in turn will cause the SSCnano to work much harder than normal to produce chlorine. Algae and bacteria don't grow well in cold environments. Thus, very little chlorine is needed, simply adjust the chlorine percentage to an ideal rate. -
Page 12: Setup
When the range of Chlorine in Dosing 2 is 700mA to 720mA, the unit will product Chlorine which control in the range. Calibration for samples are Pre-calibrated. No need to run calibration procedure. If you need to run probe calibration, please send a mail to “product.emaux.com.hk” P11 CONTROL AND SETUP... -
Page 13: Dosing
6.3.3 Dosing There are three dosing pump can be connected. 1) Type: a. Dosing 1: Acid/ Alkaline b. Dosing 2:ORP, Chlorine c. Dosing 3: Others 2) Dosing mode a. Auto/ on/ off 3) Setting a. Upper/ Lower b. Pump rate c. -
Page 14: Switch Pump
Switch Pump Switch 1 which is defaulted for user connected to pool pump. When the switch is activated, user can connect the pump and schedule circulation automatically. User can connect the under used circulation pump to the connector and turn the pump on/ off by schedule automatically. -
Page 15: Iot, Smart Life Platform
7. IOT, SMART LIFE PLATFORM Cybersync chemical controller can connect to Smath life APP so that you can control and monitor you pool condition anytime and anywhere. Follow the general installation and setup guide to install “Smart life” and Add device. Note: the Intelligent control function is under testing. - Page 16 Setting Menu – Go to Menu Menu screens, device and App are sync. Besides: 1) App is allowed to modify display name on portable device so for higher flexibility to control 2) Device screen: Some function such as Priming, Probe calibration, dosing on/ off which function must be control on-site would be in device only.
-
Page 17: Cleaning The Titanium Cell
During the warranty period, Emaux authorized reseller will repair or replace defective parts with new parts or, at the option of Emaux, serviceable used parts that are equivalent or superior to new parts in performance. This Limited Warranty extends only to products purchased from Emaux authorized reseller. This Limited Warranty does not extend to any product that has been damaged or rendered defective (a) as a result of accident, misuse or abuse;... - Page 18 EMAUX WATER TECHNOLOGY CO., LTD ADDRESS: 2/F, Lockhart Centre, No. 301-307 Lockhart Road, Wanchai, Hong Kong YOUR PREMIER SUPPLIER www.emauxgroup.com...
