emaux RGB-CB Manual

PART LIST

Key
Part No.
No.
1 03011007 M4*12 Screw
2 04014054 Light Switch
3 04014090 Electronic Board (220V 50Hz/60Hz)
3 04014114 Electronic Board (110V 60Hz)
4 03011196 M3*6 Screw
5 89480101 Control Box
6 04014013 Cable Gland
7 87013019 Plastic Wall Fitting for Screw
7 03011023 M5*35 Screw
8 04014089 Remote Control with Battery
9 01360015 Panel board
EMAUX (Zhong Shan) Swimming Pool Equipment Co., Ltd.
Address: Long Zhu Industrial Park, Nan Lang Industrial Area, Nan Lang Town, Zhong Shan City, Guangdong Province, China
Description
4

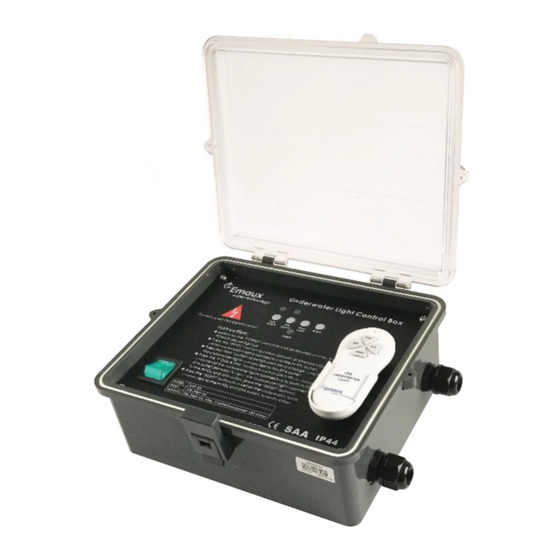

RGB SERIES UNDERWATER LIGHT
CONTROL BOX
Model: RGB-CB
Code: 08040009(220-240V 50Hz) 08040020(110V 60Hz)
Keep this manual safe for future reference
APPLICABLE FOR EMAUX RGB SERIES UNDERWATER
LIGHT:
/
RGB-P100 RGB-TP100
Warning:
This electrical control box must be installed by a licensed or certified electrician or a
qualified serviceman in accordance to the requirements of your government
standard or local authorities. Improper installation will create electric hazards which
could result in serious injury, death as well as damage to the property.
CUT THE POWER BEFORE SERVICE AND MAINTAINANCE!

INSTALLATION EXPLAIN

Qty
1.Remove the Panel from the Control Box, position the box to the desired fitting
place and mark on the wall with the location of the drilled holes, then drill 4 holes
4
of ø8mm on the marked position and insert a plastic fitting, secure the box by
1
fastening 4 screws of M5x35 to the plastic fittings(See diagram below).
1

CONTROL BOX INSTALLATION DIAGRAM

1
4

SPECIFICATIONS

1
3 Work temperature
4
Input voltage
4
Output voltage
1
Frequency RF
1
/ /
RGB-NS75 RGB-NS150/RGB-H200
Control Box
M5×35 Self-
Tapping Screw
M5×35
0-35℃
AC220-240V, 50Hz
AC110V,60Hz
AC 12V, 2*300W
433.92MHz
1
Plastic Fitting
Wall
