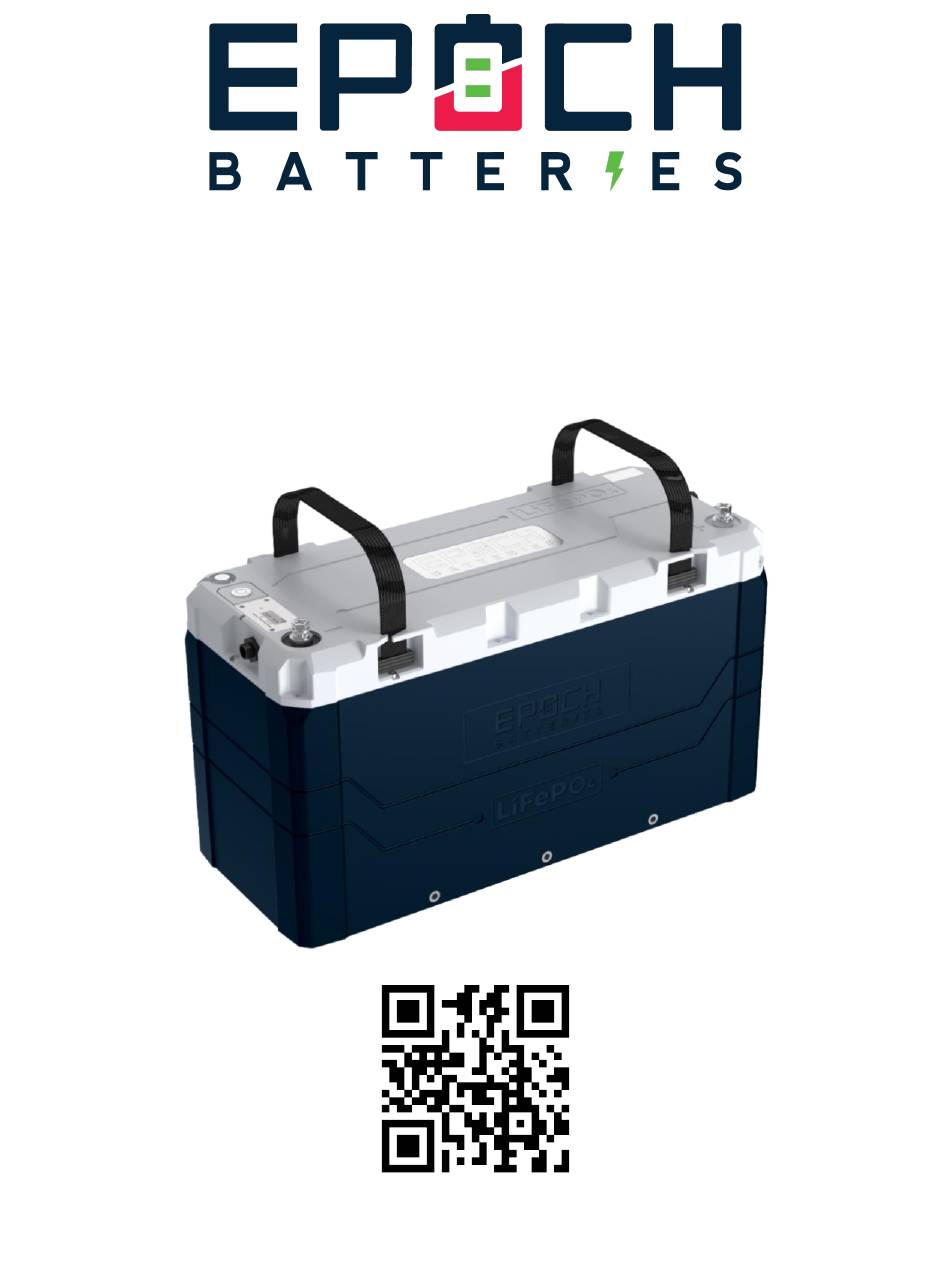

- Page 1 C12460A User Guide Updated: 10/12/24 Copyright © 2024 Epoch Batteries, LLC. All right reserved.
- Page 2 Purpose and Importance of the Guide This guide provides detailed instructions for the safe installation, operation, and maintenance of the C12460A lithium battery packs. It is imperative that all users thoroughly review this manual before beginning any activities. The information herein ensures correct and safe handling of the battery packs.
-
Page 3: Table Of Contents
Table of Contents Introduction............................. .4 Welcome..............................4 Purpose and Scope..........................4 Commitment to Quality and Support....................4 Part of Your Energy Journey........................ .4 Appreciation............................4 About This Guide............................ .5 Comprehensive Coverage........................5 User-Friendly Structure.........................5 Emphasis on Safety..........................5 Support and Feedback.......................... .5 Conclusion.............................5 Product Overview.............................6 Applications............................6... - Page 4 Busbar System..........................15 Daisy-Chaining..........................15 Important Considerations........................16 Compatibility..........................16 Safety Precautions......................... .16 Wired Communications with Victron GX Device................17 Connection Setup..........................17 DIP Switch Settings..........................18 Standalone DIP Switch Settings......................18 Series DIP Switch Settings........................18 Parallel DIP Switch Settings.......................18 Terminal and Cable Management.......................
- Page 5 Activating Discharge.......................... .29 Optimal Operating Conditions......................29 Managing Discharge Depth.........................29 Load Management..........................29 Storage Practices..........................29 Regular Maintenance...........................29 Careful Handling..........................29 Adhering to Safety Precautions......................30 Professional Consultation........................30 Maintenance Guide..........................31 Regular Visual Inspections........................31 Terminal and Connector Maintenance....................31 Voltage and Capacity Monitoring......................31 Temperature Checks...........................
-
Page 6: Introduction
C12460A promises efficiency and endurance. By choosing our product, you're investing in a solution that delivers on its promises. Appreciation Thank you for choosing Epoch Batteries. Your trust in our brand and products is greatly valued, and we're committed to upholding the high standards you expect from us. -
Page 7: About This Guide
Support and Feedback We encourage you to use this manual as a comprehensive guide for all your needs regarding the C12460A. If you have feedback or require further clarification on any topics, please reach out to Epoch Batteries Support. Conclusion This manual is an essential tool in your journey with the C12460A, reflecting our commitment to providing you with a positive and productive experience. -
Page 8: Product Overview
Product Overview The C12460A offers an exceptional balance of longevity, safety, and efficiency, making it a versatile choice for a wide range of applications. With a substantial 460 Ah capacity, this 12-volt battery delivers consistent and dependable power. Its advanced LiFePO₄ technology extends cycle life and ensures stable performance across various temperature conditions. -
Page 9: Specifications
Specifications Battery Specifications Electrical Parameters Parameter Value Nominal Voltage 12.8 V (3.2 V per cell) Maximum Voltage 14.6 V (3.65 V per cell) Minimum Voltage 10 V (2.5 V per cell) Nominal Capacity 460 Ah Stored Energy 5,888 Wh Internal Resistance ≥ 20 mΩ Cycle Life ≥ 3,500 cycles Max Self-Discharge ≤ 3% per month Current Ratings Parameter... -
Page 10: Connection Capabilities
Length 20.86 in 529.8 mm Width 8.65 in 219.8 mm Height 12.06 in 306.3 mm Case Material PC + ABS (UL94 V-0) Terminal Size & Torque M8, 8–12 Nm Ingress Protection IP67 Connection Capabilities Parameter Maximum Supported Series Connections Up to 4 batteries Parallel Connections Up to 16 batteries Battery Management System (BMS) Specifications Self-Discharge Current Condition... -
Page 11: Current Protections
Current Protections Charging Overcurrent Protection Parameter Value Protection Current 400 A Protection Delay 5,000 ms Release Current 350 A Discharging Overcurrent Protection Parameter Value Protection Current 550 A Protection Delay 5,000 ms Short Circuit Protection Parameter Value Protection Current 1,200 A Internal Fuse Parameter Value Rated Current 400 A Transient Overload Current 1,200 A @ 3s... -
Page 12: Discharging Temperature
Discharging Temperature Condition Fahrenheit (°F) Celsius (°C) High Temp Protection Activation 131°F 55°C High Temp Protection Release 122°F 50°C Low Temp Protection Activation -4°F -20°C Low Temp Protection Release 1.4°F -17°C... -
Page 13: Safety Guidelines
Safety Guidelines To ensure maximum safety and prevent potential accidents, injuries, or property damage, please adhere to the following safety instructions: 1. Comprehensive Understanding • Read the Manual Thoroughly: Before using the battery, read and understand all instructions. • Familiarize Yourself: Know the battery's functions, specifications, and safety guidelines. - Page 14 9. Responsible Disposal • Follow Regulations: Dispose according to local guidelines. • No Incineration: Do not burn or discard with household waste. 10.Additional Safety Measures • Handle with Care: Avoid impacts or drops. • Correct Polarity: Ensure proper connections. • Regular Inspection: Check for damage or unusual behavior. •...
-
Page 15: Installation Guide
Installation Guide Proper installation of your C12460A battery is essential for optimal performance and safety. Location • Ventilation: Choose a well-ventilated area to dissipate heat. • Dry Environment: Avoid moisture to prevent corrosion or short-circuiting. • Avoid Direct Sunlight: Prevent overheating and cell degradation. -
Page 16: Connection Guide
Connection Guide Ensuring Correct Polarity • Positive Connection: Connect the positive (+) terminal to the positive (+) terminal of the load. • Negative Connection: Connect the negative (-) terminal to the negative (-) terminal of the load. • Importance: Correct polarity ensures safe and effective operation. Series and Parallel Connections Series Connections •... -
Page 17: Parallel Connections
• Use Cases: Applications requiring higher voltage. Parallel Connections • Voltage Remains Same: Voltage remains at 12 V. • Capacity Increase: Capacities add up (e.g., two batteries = 920 Ah). • Use Cases: Applications requiring higher capacity. Busbar System • Advantages: • Equal resistance and uniform charging. •... -
Page 18: Important Considerations
Important Considerations Compatibility • Use Identical Batteries: Same voltage, capacity, and type. • Prevent Uneven Charging: Mixing batteries can reduce performance. Safety Precautions • Proper Fusing: Install fuses or circuit breakers. • Secure Connections: Tighten all connections to prevent resistance build-up. -
Page 19: Wired Communications With Victron Gx Device
Wired Communications with Victron GX Device Connection Setup 1. Physical Connection: • Locate Wiring Harness: Included with your battery. • Connect to Battery: Plug the cable labeled "Victron" into the Victron port. • Connect to GX Device: Attach the cable labeled "INV" to the BMS-CAN or VE.CAN port. -
Page 20: Dip Switch Settings
Note: Modifying DIP switches may affect data displayed on the Epoch Li-Ion app. Standalone DIP Switch Settings When using the C12460A battery as a standalone unit—without any series or parallel connections—set the DIP switches as shown below: 460 Ah Master... - Page 21 920 Ah Master 920 Ah Slave 12 V 1,380 Ah DIP Switch Settings: 1,380 Ah Master 1,380 Ah Slave 1 1,380 Ah Slave 2 12 V 1,840 Ah DIP Switch Settings: 1,840 Ah Master 1,840 Ah Slave 1 1,840 Ah Slave 2 1,840 Ah Slave 3 12 V 2,300 Ah DIP Switch Settings 2,300 Ah Master...
- Page 22 12 V 3,680 Ah DIP Switch Settings 3,680 Ah Master 3,680 Ah Slave 1 3,680 Ah Slave 2 3,680 Ah Slave 3 3,680 Ah Slave 4 3,680 Ah Slave 5 3,680 Ah Slave 6 3,680 Ah Slave 7 12 V 4,140 Ah DIP Switch Settings 4,140 Ah Master 4,140 Ah Slave 1 4,140 Ah Slave 2...
- Page 23 5,060 Ah Slave 4 5,060 Ah Slave 5 5,060 Ah Slave 6 5,060 Ah Slave 7 5,060 Ah Slave 8 5,060 Ah Slave 9 5,060 Ah Slave 10 12 V 5,520 Ah DIP Switch Settings 5,520 Ah Master 5,520 Ah Slave 1 5,520 Ah Slave 2 5,520 Ah Slave 3 5,520 Ah Slave 4...
- Page 24 6,440 Ah Slave 4 6,440 Ah Slave 5 6,440 Ah Slave 6 6,440 Ah Slave 7 6,440 Ah Slave 8 6,440 Ah Slave 9 6,440 Ah Slave 10 6,440 Ah Slave 11 6,440 Ah Slave 12 6,440 Ah Slave 13 12 V 6,900 Ah DIP Switch Settings 6,900 Ah Master 6,900 Ah Slave 1...
-
Page 25: Terminal And Cable Management
Overcurrent Protection • Install Protection Devices: Use appropriate fuses or circuit breakers. Fuses and Circuit Breakers Note: The C12460A has a built-in fuse rated at 400 A Choosing the Right Protection • Determine Current Requirements: Identify maximum operating current. • Select Appropriate Rating: Choose devices rated at 125%–150% of maximum current. -
Page 26: Charging Guide
Charging Guide Proper charging procedures are crucial for maximizing performance, lifespan, and safety. Initiate Charging • Power Activation: Press and hold the power button / remote power button. • Visual Indicator: LED will illuminate, indicating readiness. Use Compatible Chargers • LiFePO₄-Specific Chargers: Only use compatible chargers to prevent risks. Charging Parameters Recommended Voltages •... -
Page 27: Charging Environment
Charging Environment • Well-Ventilated Area: Avoid flammable materials and moisture. • Adequate Airflow: Ensure heat dissipation. Temperature Management Optimal Charging Range • Recommended Temperature: -20 °C to 55 °C (-4 °F to 131 °F). Avoid Extreme Temperatures • Impact on Battery Life: Avoid charging outside recommended range. Safety Precautions Personal Protective Equipment •... -
Page 28: Epoch Li-Ion App Guide
Epoch Li-Ion App Guide The Epoch Li-Ion app allows you to monitor your battery's performance conveniently from your mobile device. Download and Installation Download and install the Epoch Li-Ion app from the App Store or Google Play: App Store (iOS) Google Play (Android) Permissions •... -
Page 29: Navigating The App
Navigating the App Dashboard The Dashboard is your primary interface for monitoring battery performance. It displays live data from all connected batteries, including: • Bank-Level Data: • State of Charge (SoC) percentage • Total voltage • Total current • Total capacity •... -
Page 30: About Page
About Page The About page offers additional resources and settings: • Historical Data: Access past performance data of your batteries. • OTA Firmware Updates: Update your battery's firmware over the air. • Guides and Support: Find links to user guides and contact information for customer support. •... -
Page 31: Usage Guide
Usage Guide Ensure efficient and safe operation by following these guidelines. Activating Discharge • Power On: Press and hold the power button / remote power button. • Visual Confirmation: LED indicator illuminates. Optimal Operating Conditions • Temperature Range: -20 °C to 55 °C (-4 °F to 131 °F). •... -
Page 32: Adhering To Safety Precautions
Adhering to Safety Precautions • Safe Operation: Follow safety measures and wear PPE. • Avoid Exposed Terminals: Do not touch. Professional Consultation • Seek Expert Advice: Consult support or authorized dealer if uncertain. -
Page 33: Maintenance Guide
Maintenance Guide Follow these guidelines to maintain optimal condition. Regular Visual Inspections • Surface and Structure Check: Inspect casing, terminals, wiring. • Immediate Action: Address issues promptly. Terminal and Connector Maintenance • Cleaning Process: Use soft brush or cloth with mild solution. •... -
Page 34: Troubleshooting Guide
Troubleshooting Guide Battery Not Charging 1. Connection Check: Verify secure and correct polarity. 2. Charger Compatibility: Ensure charger is LiFePO₄-compatible and functional. 3. Power Source Inspection: Confirm power supply is active. Low Voltage or Capacity 1. Load Disconnect: Remove loads and measure voltage. 2. -
Page 35: Excessive Self-Discharge
Excessive Self-Discharge 1. Load Disconnection: Ensure no devices are draining power. 2. Terminal Maintenance: Clean terminals. 3. Current Draw Measurement: Detect parasitic loads. Erratic Behavior 1. Environmental Factors: Check for extreme conditions. 2. Connection Security: Verify all connections. 3. Component Testing: Evaluate connected devices. Seeking Professional Assistance •... -
Page 36: Warranty Information
Warranty Information Warranty Terms Duration of Coverage • Limited Warranty: Effective from date of purchase, lasting up to 11 years. Coverage Scope • Manufacturing Defects: Faulty components, assembly errors, structural irregularities. • Normal Usage Conditions: Defects under normal use. Exclusions from Warranty •... -
Page 37: Consumer Rights
• Queries and Assistance: Reach out for support if needed. We at Epoch Batteries are proud of the quality and reliability of our products. We are dedicated to providing exceptional customer service and stand firmly behind our batteries. Thank you for choosing...
