MC-E A
MC-E S
Espresso coffee machine
Instruction manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MC-E A and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BIEPI MC-E A

Summary of Contents for BIEPI MC-E A

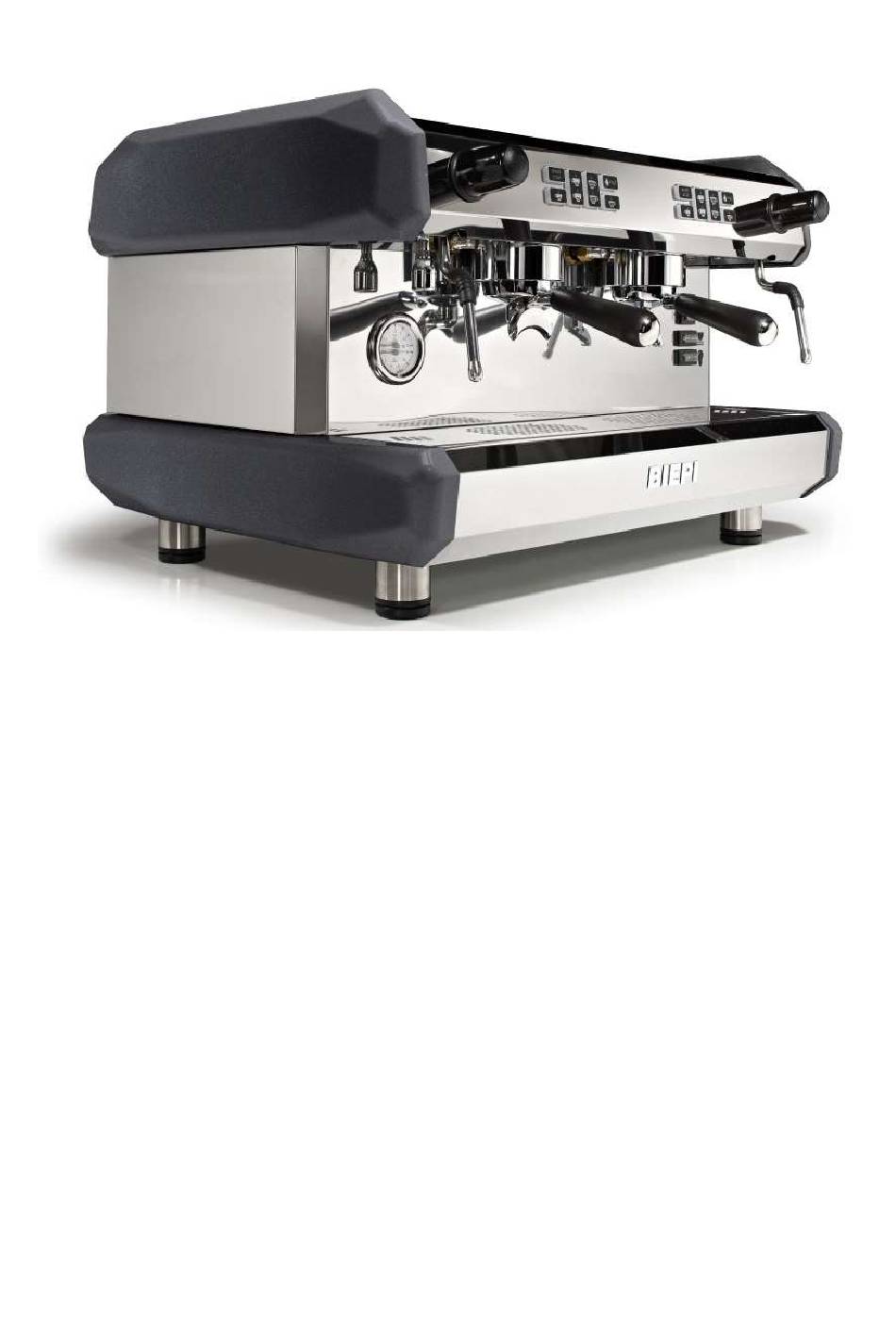

  • Page 1 MC-E A MC-E S Espresso coffee machine Instruction manual...
  • Page 2 This document is a translation from the original Instruction manual.

  • Page 3: Table Of Contents

    10. Using the machine ............... 12 11. Programming ................15 11.1 Dose programming ............. 15 11.2 Pre-infusion (pre-brew) – MC-E A only ......16 12. Cleaning and maintenance ............17 12.1 Clean the shell ..............17 12.2 Refill the water ..............17 12.3 Disassemble and clean showers .........

  • Page 4: Machine And Manufacturer Designation

    The subject of this instruction manual is an espresso coffee machine called MC-E. It is designed and manufactured by BiePi Srl. BiePi Srl - via Monte Arera, 14 - 24040 – Castel Rozzone (Bg) - Italy 2. Intended use MC-E machine is designed and manufactured to dispense espresso coffee and hot water and to emit hot steam.

  • Page 5: Moving - Handling Of The Machine

    Burn / Scald hazard  When the machine is turned on, water inside the circuit reaches high temperatures. The flow of hot water causes heating in some parts of the machine. Do not touch hot surfaces. Avoid contact with hot water and hot steam.

  • Page 6: Electrical Connection

    The machine must be installed in a suitable room (from a  hygienic/sanitary point of view), with adequate ventilation and lighting Put the machine over a strong, horizontal plane. For ergonomic  purposes, place the machine between 80 and 130 cm in height The machine must be placed away from heat sources and, if ...
  • Page 7 The electric socket (or the switchboard) must be appropriately  sized and easy to disconnect Do not use extension cords, multiple sockets or adapters  Before connecting or disconnecting the power supply cable, check  that the main switch of the machine is set to “off” Avoid contact with liquids.

  • Page 8: Water Connection

    6.2 Water connection The connection to the water supply network must be made according to the following requirements. Do not implement any kind of temporary connection The connection between the application and the main water  circuit must be realized through a shut-off valve (tap). When the machine remains unused, the valve must be closed.

  • Page 9: List Of Parts

    7. List of parts Figure 1 - Figure shows a typical MC-E A equipped with 2 coffee groups 1. Adjustable foot 2. Grid 3. Steam wand 4. Manometer 5. Hot water wand 6. Steam knob 7. First group of commands 8.

  • Page 10: Control Panel

    Figure 2 – Parts under the drip tray 17. Water inlet pipe with manual lever 18. Tap for boiler drain 19. Drain tray 8. Control panel The appearance of the MC-E control panel depends on the version (A or S) and on the number of coffee groups. 8.1 “S”...

  • Page 11: A" Version (Automatic)

    8.2 “A” version (Automatic) Figure 4 - The control panel of a 2 groups MC-E A. Manual mode coffee button (press to start dispensing ⑤ espresso coffee, press again to stop dispensing) Hot water dispensing button (with automatic stop) ⑥...

  • Page 12: Using The Machine

    10. Using the machine 10.1 First use (or use after a long stop) After checking that electric and water connections are in order, open the tap and press the main switch on the machine. Few seconds after starting, electronics begin to fill the boiler Check that the valve for boiler drain is closed ⑱...
  • Page 13 Check the manometer that the machine reaches the operating temperature. During heating leave the filter holders inserted in the coffee group so that they warm up too. Warning: when the machine is operating, the filter holder, the coffee groups, the wands, the warmer tray and some other parts are hot.

  • Page 14: Hot Water

    10.2.2 Hot steam During the steam emission, be careful with the wands: the steam is hot and could cause damages. Do not touch the wand, do not come into contact with the steam. To emit steam, you have to rotate the steam knob. Turn the knob counter-clockwise to start the steam emission, turn the knob clockwise to stop the steam emission.

  • Page 15: Programming

    11. Programming 11.1 Dose programming Coffee and hot water have preset dosing time. To change the dosing time, follow this sequence (MC-E A only): 1. Hold down the Start/Stop button for at least 3 ⑤ seconds. The button starts flashing 2.

  • Page 16: Pre-Infusion (Pre-Brew) - Mc-E A Only

    11.2 Pre-infusion (pre-brew) – MC-E A only With the pre-infusion, hot water is introduced in the coffee group and stay there for some seconds before the coffee extraction starts. With reference to the first group of commands from left (or to the...

  • Page 17: Cleaning And Maintenance

    12. Cleaning and maintenance 12.1 Clean the shell Before any cleaning operation, be sure that the machine is turned off, the temperature has dropped and the isolator is open. Do not put the machine in water, do not spraying jets of water on the machine, do not use solvents or abrasive materials.

  • Page 18: Disassemble And Clean Showers

    12.3 Disassemble and clean showers Be careful: water and steam activated during this cleaning operation are hot. Avoid direct contact with hot liquids and hot parts. Disassembling and cleaning the showers should be weekly. With the machine off and cold, follow this procedure: •...

  • Page 19: Clean The Coffee Group With The "Blind Filter

    (as if you were preparing an espresso) For the MC-E S version Perform some dispensing, each lasting about ten seconds. For the MC-E A version The machine is ready to perform an automatic cleaning cycle with specific detergent powder For every coffee group on the machine: Hold down the button ⑤...

  • Page 20: Failures

    Also disconnect the power supply if the machine would crash down. Never connect a faulty machine to the mains. Contact BiePi Srl customer support. 14. Disposal The WEEE Directive (Waste of electric and electronic equipment) requires separate disposal of electrical and electronic products.

  • Page 21: Ce Declaration Of Conformity

    CE Declaration of Conformity The Manufacturer BiePi srl Via Monte Arera, 14 24040 Castel Rozzone (BG), Italia Declares that the machine MC-1 Barista (for the preparation of espresso coffee), Complies with the Directives / Regulations listed below: Directive 2006/42/EC (EU): Machinery Directive...
  • Page 22 Relevant harmonized standards applied: UNI 12100/2010: Specifies basic terminology, principles and a methodology for achieving safety in the design of machinery EN 60335-1/2013: Safety of household and similar electrical appliances - Part 1: General requirements EN 60335-2-15: Particular requirements for appliances for heating liquids EN 60335-2-75: Particular requirements for commercial dispensing appliances and vending machines...
  • Page 23 Cod. 61.203.0000.EN BiePi Srl Via Monte Arera, 14 C.a.p. 24040 – Castel Rozzone (Bg)  +39 0363 815511  + 39 0363 383878 e-mail info@biepi.net...
