NexiGo SPK03 Manual

PRODUCT FEATURES

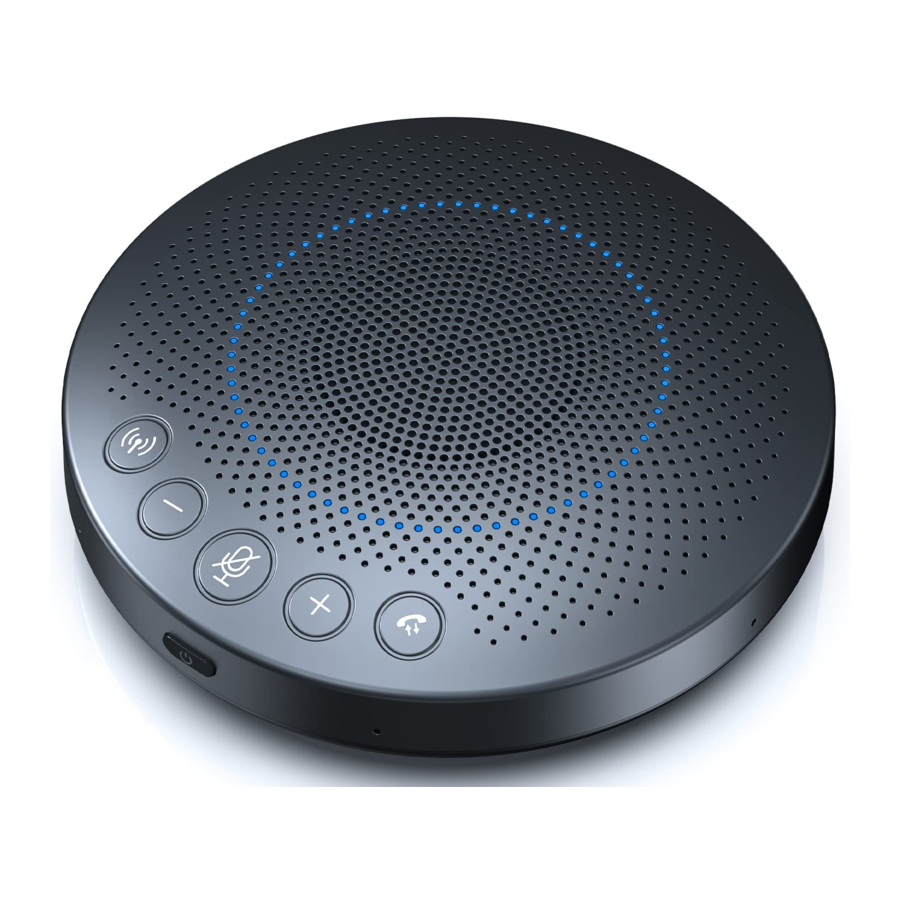

The NexiGo SPK03 is a wireless conference speakerphone that picks up voices from all directions within 10 feet. It's designed to be plug-and-play and has both wireless capabilities and a USB port for quick and easy connections.

Best of all, it works as a two-way system. It functions as a wireless speaker for your smart devices and lets you speak into it like a microphone, which is perfect for placing in the middle of a conference table during online video calls. So whether you want it to play music for better audio quality than your laptop microphones, or to ensure everyone in your meeting is being heard loud and clear — the NexiGo wireless speakerphone has you covered!

360° VOICE PICKUP

The six-microphone array allows for 360° voice pickup with a radius of up to 10 feet. Its Digital Signal Processing (DSP) technology enables noise cancellation and echo reduction which provide the clearest possible signal up to 10 feet away.

WIRELESS CONNECTIVITY

With a high-quality wireless connection, you can connect to a variety of devices like TVs, smartphones, laptops, and more!

8 HOURS OF BATTERY LIFE

The built-in 3000mAh battery supports up to 8 hours of wireless audio.

HI-FI AUDIO

This built-in high-fidelity speaker allows the SPK03 to transmit and receive sound without any disturbance or overlap.

ACTIVE SPEAKER TRACKING

For meetings with multiple people, the speakerphone will automatically track whoever's talking by redirecting its microphones towards the active speaker, giving them the clearest audio possible. You'll know this feature is working when the LED ring lights up in the direction of the active speaker.

PRODUCT OVERVIEW

1. LED Ring
2. Wireless Connection On / Off
3. Volume -
4. Mute / Unmute
5. Power Button / Status Light
6. Volume +
7. Answer / Reject / Hang Up

8. USB-C Port (for charging and PC connectivity)
9. 6-Microphone Array

WHAT'S IN THE BOX?

1 x NexiGo Wireless Speakerphone
1 x USB-C to USB-A Cable
1 x User Manual

SPECIFICATIONS

Charging Input	DV 5V 1A
Battery Capacity	3000mAh
Power Consumption	2.3W
Charging Time	3 hours
Talk Time	8 hours
Microphone Pickup Range	10ft (3m)
Speaker Frequency Range	20 Hz – 20 kHz
Bluetooth Version	5.0
Wireless Range	32.8ft (10m)

SETUP

POWER ON / OFF

Press and hold the button for two seconds to power the speakerphone on / off.

The speakerphone will automatically power on once it's plugged into your PC. Meanwhile, it will automatically power off after either 15 minutes of inactivity or if there's no power source.

CONNECTING

Note: When the speakerphone is connected wirelessly and also by USB, tap the button to switch between wireless and USB transmission. The status light will glow blue for a wireless connection and white for a USB connection.

Wireless Connection

USB Connection

Step 1: Connecting to a computer or mobile device

• Press and hold the button for two seconds to begin pairing.
• Next, enable Bluetooth on your computer or mobile device and select "NexiGo SPK03" from the list of available devices. The speakerphone will say "Bluetooth connected" when pairing is complete.


Note:

1. Each time you power on the NexiGo SPK03, it will automatically pair with the last successfully connected device (if available).
2. To turn off wireless capabilities, press the button for about three seconds.
3. For a wired connection, use the provided USB cable to connect the USB-C side to the speakerphone, and the USB-A side to your computer (see diagram below).


Step 2: Granting speakerphone access

Open the app you want to use with the speakerphone. You may need to select your speakerphone (NexiGo SPK03) as the audio output, and its built-in microphones (NexiGo SPK03) as the audio input in the settings of the app you're using.

Note: If you experience issues getting your system to recognize the speakerphone, please try the following steps depending on your device's operating system (Windows or Mac).

For Windows

1. Go to Settings > Privacy > Microphone, then turn on "Allow apps to access your microphone".
2. Select the apps on the list that you want to have access to the microphone.
3. Once you have access, open the apps you're planning to use and ensure that you have selected the NexiGo SPK03 as the active speaker and active microphone from the list of available options.

For macOS

1. Go to the Apple menu > System Preferences > Security & Privacy, and select the Privacy tab. Select Microphone from the list of options on the left side of the page.

Select the apps you want to enable microphone access for. Click the box next to the app's name to enable microphone access for that application.

ANSWER / END THE CALL

Tap the button once to answer an incoming call. Press and hold the button for 2 seconds to reject an incoming call. While on a call, tap once to end it.

ADJUST THE SPEAKER VOLUME

Tap the / button to adjust the speaker's volume. The LED ring will light up blue either clockwise or counterclockwise, indicating that the volume is increasing or decreasing.

Since there are nine audio levels, it can go up and down nine times. The blue LED ring will make a full circle once it reaches maximum volume, and will start to lose its shape each time you turn down the volume.

MUTE / UNMUTE THE MICROPHONE

Tap the button to mute or unmute the microphone. When the microphone is muted, the LED ring will glow red.

VOICECAP MODE

Press and hold the button for about two seconds to enable or disable VoiceCap Mode. This function automatically eliminates surrounding noise, and only picks up and transmits sound within a five-foot radius. To create a clear and natural sound, the speaker volume automatically adjusts according to the surrounding noise.

Note: VoiceCap Mode is only recommended for use in open spaces. Please disable this function when in a controlled environment, such as a conference room or home office.

ACTIVE SPEAKER TRACKING FUNCTION

The SPK03 will automatically track the active speaker by redirecting its microphone toward whoever's talking. To indicate that the speakerphone is tracking properly, the LED ring will light up in the direction of the active speaker.

Note:

• The "active speaker" refers to a person who has been consistently speaking for more than three seconds.
• The LED ring will partially light up in blue, green, or red according to the active speaker's distance from the speakerphone and their volume level. Blue means your voice is loud, green means your voice is at a normal level, and red means your voice is quiet. If the speaker turns red, you should either move closer to the speakerphone or raise your voice so you can be heard more clearly.

LOW BATTERY WARNING

When powered on, the status light flashes red when the battery is low.

CHARGING

Charge the speakerphone by connecting it to a power source (wall charger, computer, etc.) with a DC 5V 1A output using the provided USB charging cable.

The LED ring will light up from red to blue in a clockwise motion, which helps to let you know the charging status when it's plugged in. It will change to a steady blue when charging is complete, and will then turn off after 30 seconds.

CHECK THE BATTERY LEVEL

Press the button once, the blue LED ring will light up to indicate the current battery level.

CONTACT INFORMATION

Tel: +1 (458) 215-6088

Website: www.nexigo.com

If you have any problems, please contact us any time at cs@nexigo.com for further assistance.

Get in touch with FREE online services.

facebook.com/letsnexigo

SAFETY NOTES

• Do not place the speakerphone on an unstable or uneven surface. Failure to follow this precaution may cause the product to fall, which may cause damage to the unit.
• Avoid exposing the unit to water.
• Avoid dropping, throwing, or exposing the product to excessive vibration, as this may damage its internal components.
• Please only use the included USB cable to charge the speakerphone. Using other charging cables may damage the speakerphone.
• Do not use or store the speakerphone in extremely hot or cold environments. Doing so may cause the speakerphone to malfunction, and prolonged exposure to heat or cold will adversely affect the battery's performance and longevity. This item is intended to be used at room temperature and in a controlled environment.
• To clean this device, wipe it with a soft, dry cloth.
• If the unit is damaged, please exercise the warranty or recycle the speakerphone at your nearest electronics store. Do not attempt to repair, disassemble, or modify the speakerphone under any circumstances. Please contact NexiGo Customer Support at cs@nexigo.com if you experience any issues.
