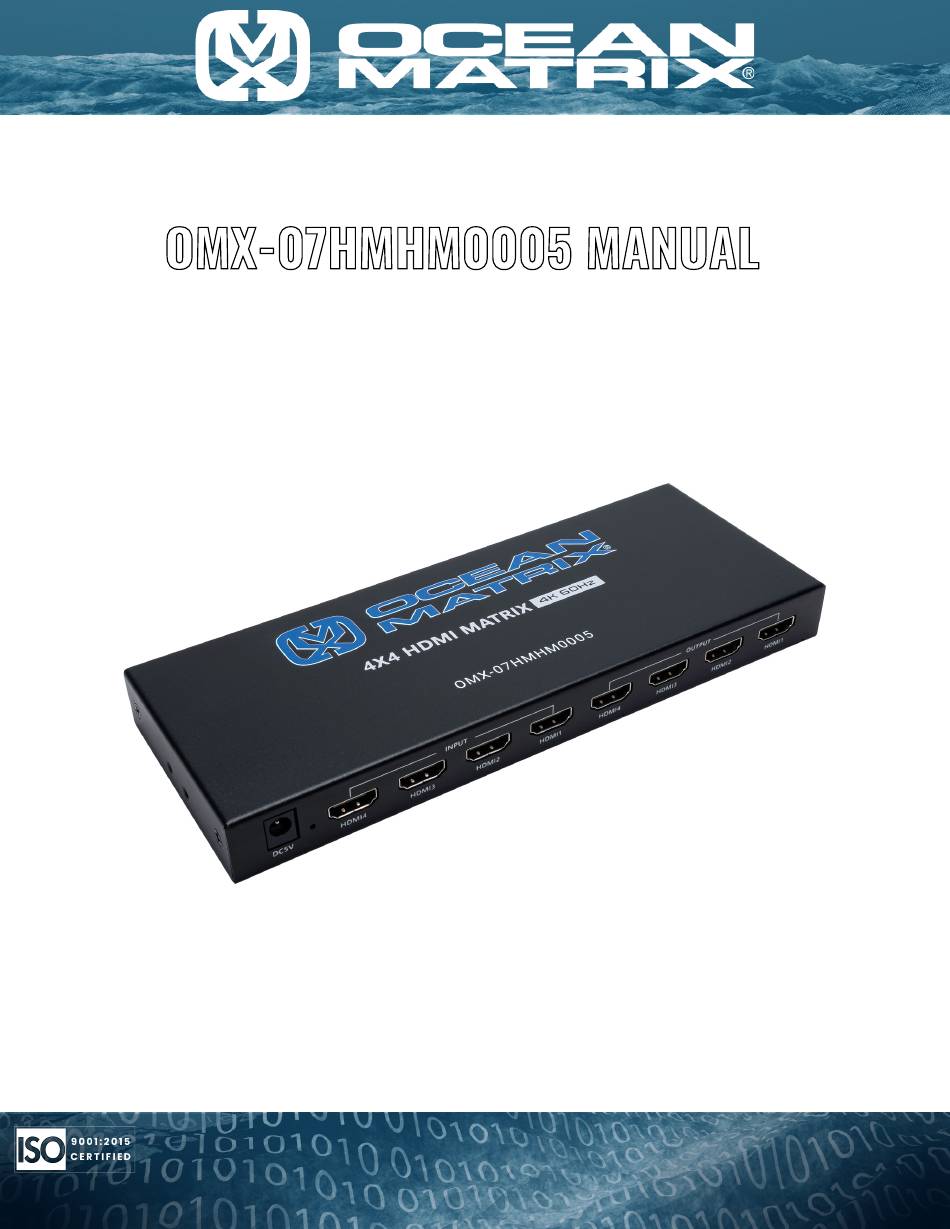

- Page 1 OMX-07HMHM0005 MANUAL 4K60HZ HDR 4X4 HDMI MATRIX SWITCHER Export Information Country of Origin: USA US ECCN: EAR99 HTS Code: 8544.42 US Dept. of Commerce CCATS: N.a sales@oceanmatrix.com A Division of Tower Products Incorporated www.oceanmatrix.com Revision #01...
-
Page 2: Table Of Contents
Table of Contents Safety Precautions…………………………………………………………………….……………Page 3 Introduction…………………………………………………………………………………………..Page 4 In the Box…………………………………………………………………………………………….Page 4 Features……………………………………………………………………………….……………..Page 4 Specifications…………………….……………………………………………….…………………Page 5 Installation Requirements……………………………………………………….………………..Page 6 Panel Description.…………………………………………………………………………………..Page 6 Remote Control………………………………………………………………….…….…………….Page 6 Installation and Connection…………………………………………………….………………..Page 7 Connection Instructions..…….……………………………………………………………………..Page 7 Connection Diagram..…………………………………………………………..………..……..Page 7 RS-232 Controls……………………………………………………………..……………..……….Page 8 EDID Management........................Page 9 FAQ………………………………………………………………………………………………….Page 10 Support &... -
Page 3: Safety Precautions
Safety Precautions: Please read all instructions before installing or operating this equipment and connecting the power supply. Please keep the following in mind as you unpack and install the unit: 1. To prevent fire or shock hazards, do not expose this equipment to high humidity and/or dust. Do not use in an unprotected outdoor installation nor any area classified as overly damp or wet. -
Page 4: Introduction
Introduction: Ocean Matrix’s OMX-07HMHM0005 4x4 HDMI matrix switcher supports resolutions up to 4K60Hz and is backward compatible. This unit features multiple switching options, including IR remote control, front panel selection buttons, and RS-232 control. The OMX-07HMHM0005 supports automatic downscaling for any two of the four HDMI outputs and has 16 built-in EDID settings to ensure a reliable signal connection with various equipment. -
Page 5: Specifications
Specifications: Items Description HDMI 2.0 (HDR, YUV 4:4:4) HDMI Version Compatible with HDCP 2.2, HDCP 1.4 HDMI Interface 4 HDMI Input, 4 HDMI Output Transmission Rate 18Gbps Bandwidth 600MHz 480i@60Hz / 480p@60Hz / 576i@50Hz / 576p@50Hz/ Resolution 720p@50/60Hz/1080i@50/60Hz / 1080p@50/60Hz / 3840x2160@24/25/30/60Hz /4096x2160@24/25/30/60Hz LPCM7.1 / DTS-HD / DTS-AUDIO / DOLBY DIGITAL PLUS / Audio Format... -
Page 6: Installation Requirements
Installation Requirements: Source device: Signal source with HDMI output interface, such as PS4, TV box, PC, etc. Display device: 4K or 1080P display device with HDMI input interface, such as TV or projector. Panel Description: Front: HDMI Input indicator 1,2,3,4 EDIPD DIP IR Control Power... -
Page 7: Installation And Connection
HDMI Cable Auto Down-scaling: The OMX-07HMHM0005 only supports downscaling on any two of the four HDMI outputs. The OMX-07HMHM0005 auto-senses the ports and will detect the first two connected displays that can support or would need downscaling. **NOTE: Only the first (2) connected displays will downscale, regardless of how many displays are connected.**... -
Page 8: Rs-232 Controls
Installation and Connection: RS-232 Control: RS-232 Control: Baud rate:9600 Data bits: 8 Note: RS-232 works with Termite control software. Stop Character: 1 Functionality not guaranteed with other software. Parity: none HDMI1 HDMI2 input HDMI3 input HDMI4 input input HDMI1 output PS11R PS12R PS13R... -
Page 9: Edid Management
Installation and Connection: EDID Management: The product has 16 built-in EDID states, which can be set to switch the output resolution through the DIP switch. The DIP Switch up means “1” and down means “0”. DIP Switch Status Resolution Information 4K@60Hz 2CH 4K@60Hz 5.1CH 4K@60Hz 7.1CH... -
Page 10: Faq
3) Please use a high-quality HDMI standard cable for an HDMI 4K signal input. Support & Warranty: Ocean Matrix products are warrantied for one (1) year from the date of purchase, with parts and labor included. Our objective is to maintain engineering excellence and an R&D laboratory dedicated to the latest technology compliance testing.
