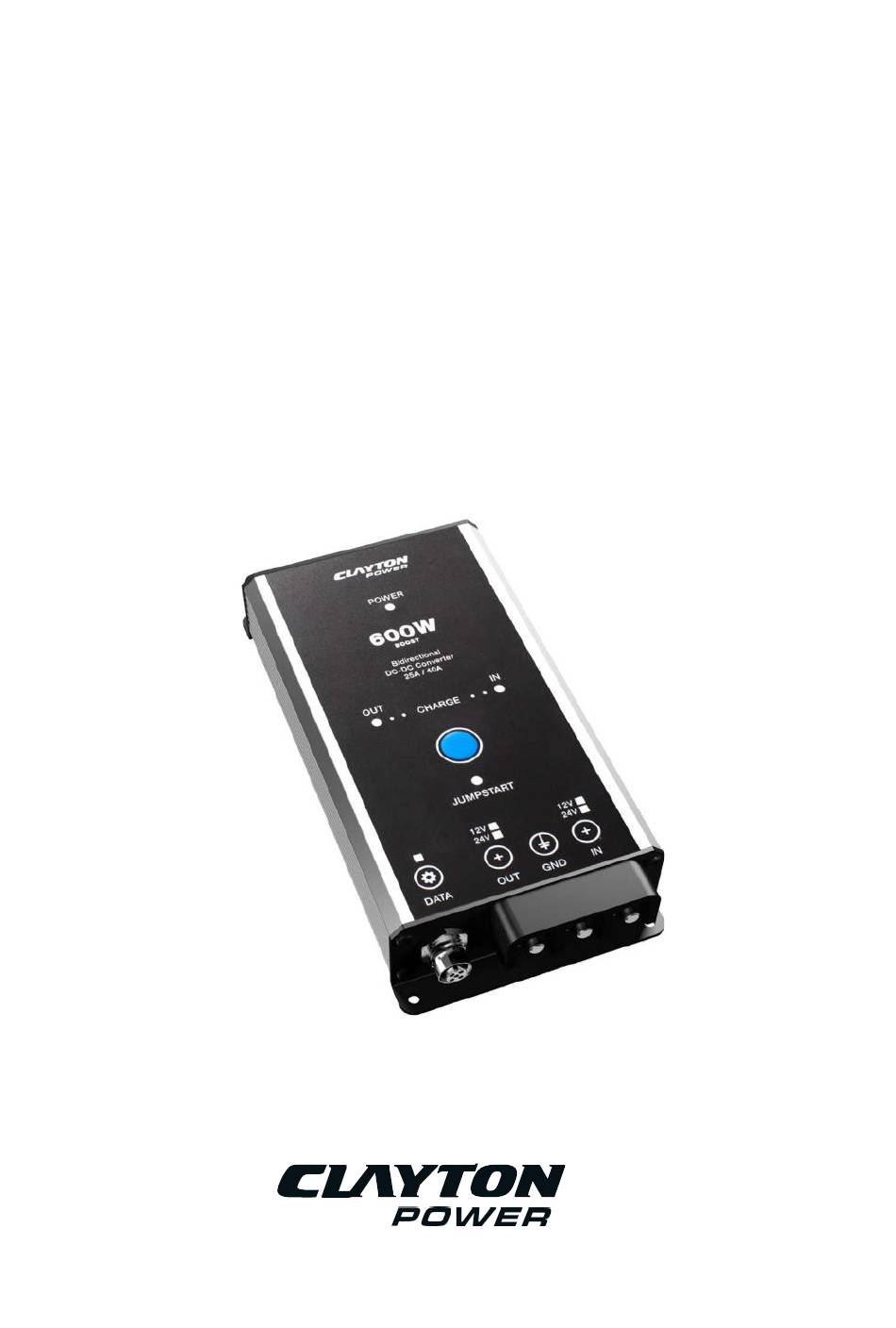

- Page 1 Manual and safety instructions | English Revision 4.02 600W Bidirectional DC-DC Converter range...
-
Page 2: Table Of Contents
ONTENT CONTENT GETTING STARTED 1.1 P RODUCT ONTENTS 1.2 P RODUCT ETAILS PRODUCT USAGE 2.1 C HARGE LGORITHM 2.2 J TART 2.4 A NCILLARY TO TARTER ATTERY NSTALLATION 2.3 B ATTERY TO UTPUT NSTALLATION SPECIFICATIONS 3.1 DC I NPUT PERATION CERTIFICATIONS AND COMPLIANCE SAFETY 5.1 F... -
Page 3: Getting Started
1. G ETTING TARTED 1.1 Product Box Contents Quantity Description 600W Bidirectional DC-DC Converter M12 connector M6 nut 16mm2 cable lug 16mm self-tapping mounting screws Manual 1.2 Product Details Connection overview Description Power indicator Power direction OUT Power direction IN Jump start button Jumpstart indicator Communication indicator... - Page 4 M12 - IO Pinout Function Front view Single Wire (Communication) I/O Signal / D+ Ignition Signal CAN High (Communication) CAN Low (Communication) LED behaviour Behaviour Indication Description Power Green Solid Active - wakeup signal active Green 1 Flash Standby - wakeup signal active Charge IN or OUT Green Solid...
-
Page 5: Product Usage
2. P RODUCT SAGE All installations must be carried out by trained and qualified installers. This document is intended as a general guide for installations and not as a comprehensive, step-by-step manual. Local rules and regulations must always be followed and take precedence over any instructions provided in this guide. - Page 6 Charge algorithm Stage Description Value (12V) Value (24V) Stage 1 Level 1 Constant current Stage 2 Level 2 Constant voltage 14,0V 28,0V Stage 3 Level 1 Constant current Stage 4 Level 2 Constant voltage 14,4V 28,8V Stage 5 Float charge 13,5V 27,0V 1 - Level 2 stage is time limited to 8h and hereafter the battery is considered full.
-
Page 7: Jump Start
2.3 Battery to Open Output Installation When using the converter in an Open Output setup it must be configured for correct voltage and output mode as open output and not charging a battery. The following settings must be changed from default: Setting Block Setting Value... -
Page 8: Specifications
3. S PECIFICATIONS Parameter Value General SKU no. CD1802 CD1803 CD1804 CD1805 Cooling Passive Operating temperature range -20 - 50 °C IP classification Product weight 620 g Product size (L x W x H) 222 mm x 110.5 x 40 mm... -
Page 9: Certifications And Compliance
4. C ERTIFICATIONS AND OMPLIANCE Low Voltage Directive 2014/35/EU RoHS Directive 2011/65/EU EN62368-1, EN62133 EN 63000 EMC 2014/30/EU E-Marking EN61000-6-2, EN61000-6-3 UN-ECE Regulation 10, E13 10R-05 14880 5. S AFETY The following measures ensure the safe and secure operation of the electrical system. Not following these measures can result in dangerous situations causing harm to the user and the equipment. -
Page 10: Warranty
Brief description of the application and problem, including any error codes displayed on the device. • Obtain an authorisation number from the Clayton Power dealer before shipping the device. Carefully pack the device and ship it (freight paid) to the Clayton Power dealer. - Page 11 Sales: sales@claytonpower.com Service: service@claytonpower.com Phone: +45 4698 5760 Address: Pakhusgaarden 42-48 DK-5000 Odense C...
