Summary of Contents for Clayton Power CD1801

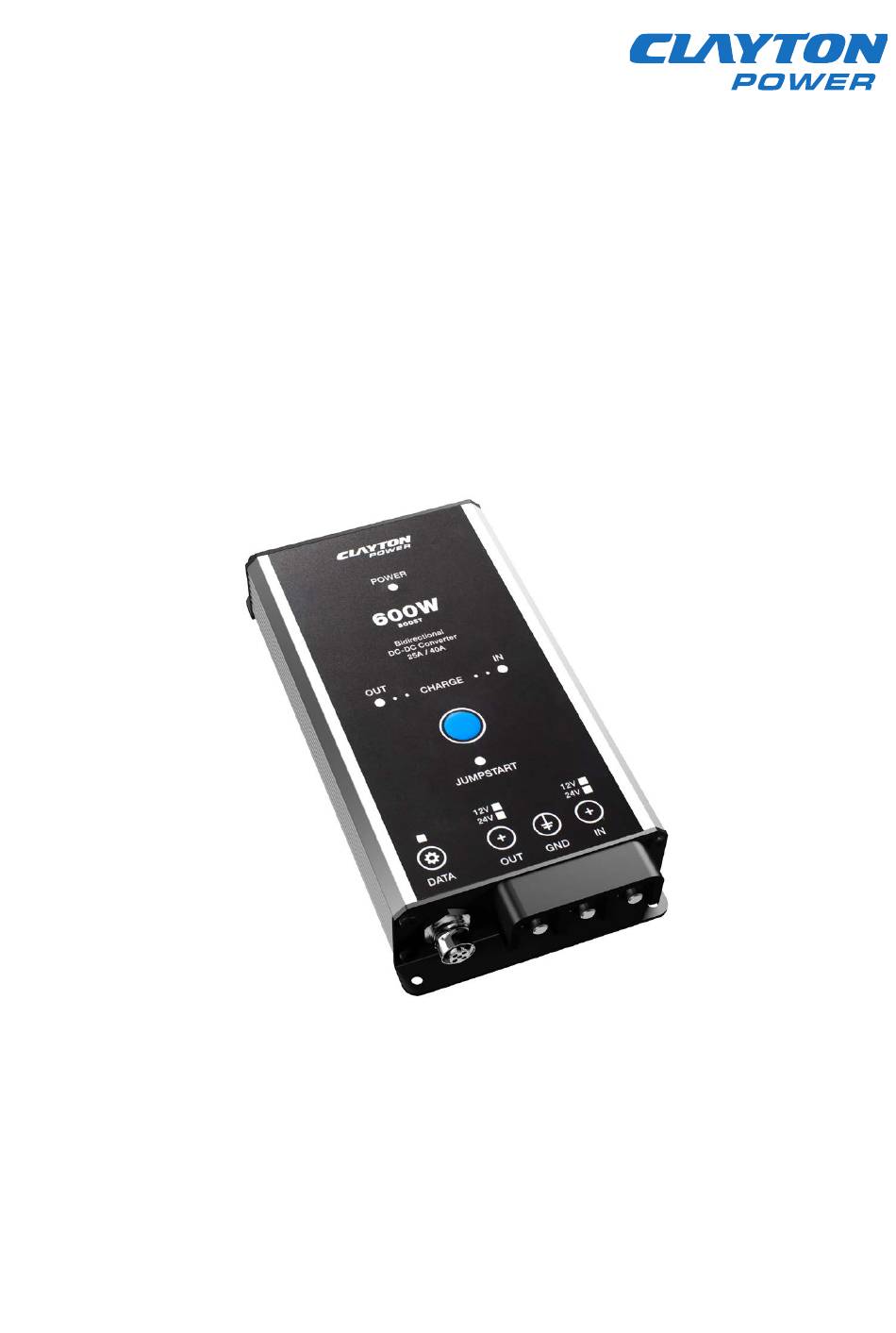

- Page 1 600W Bidirectional DC/DC Converter User Manual V3.3...
-
Page 2: Tools For Installation
Weight THIS DRAWING MAY UNDER NO CIRCUMSTANCE DK 5000 Odense C BE COPIED OR EDITED WITHOUT APPROVAL FROM 5.14 Clayton Power ApS Phone :+45 46985760 3x M6 nuts 3x M6 split washer 3x 16mm2 cable lug 4x 16mm self tapping... -
Page 3: Specification
Specification Electrical Parameter Value Supply Voltage 10,9V - 32V Input Current 0-45A Output Voltage 14,4V or 28,8V Output Current 0-40A Output Control 5 stage charge Wakeup Input Range 0-36V Wakeup Input (Deactivate) <3,0V Wakeup Input (Activate - Delayed 15sec) >4,0V Power consumption (Idle): <1,6 W Power consumption (Sleep):... -
Page 4: Standards And Approvals
Standards and approvals Low Voltage Directive 2014/35/EU EN62368-1:2014 EMC 2014/30/EU EN61000-6-2:2005, EN61000-6-3:2007 / A1:2011 EN50498:2010 (UNECE Regulation 10) E13 10R-05 14880 (E-mark) RoHs Directive 2011/55/EU EN50581:2012 LED Codes The LED indications all have same individual behaviour: Behavior Indication Power Green Solid Active - wakeup signal active Green... - Page 5 Charge Algorithm The Charge algorithm is a 5-stage charge cycle with level 1 charging the battery with high current allowing active loads to be in parallel. Level 2 is performing the absorption charging at lower current avoiding gas voltage. The Level 2 state is time limited avoiding infinite charging if loads absorb the charge energy.
- Page 6 Pakhusgaarden 42-48 Weight THIS DRAWING MAY UNDER NO CIRCUMSTANCE DK 5000 Odense C BE COPIED OR EDITED WITHOUT APPROVAL FROM 1397.70 Clayton Power ApS Phone :+45 46985760 DCDC ASS.A1 Title. Battery 12V 65Ah Bosch Black Battery 12V 65Ah Bosch Black Title.
- Page 7 Mads La 23.10.2017 Appr. COPYRIGHT: THIS DRAWING MAY UNDER NO CIRCUMSTANCE BE COPIED OR EDITED WITHOUT APPROVAL FROM Clayton Power ApS 1 Single Wire For automatic charging when the engine turns on. 2 D+ Ignition Signal 3 GND Connect a 0,75 mm...
-
Page 8: Jump Start
Jump start The DC/DC Converter can provide reverse charge current into the starter battery giving start aid option. The DC/DC Converter will reverse charge into the starter battery for 5 min. then the user should be able to start the vehicle. To activate jump start Turn Car Key on. - Page 9 110,50 98,50 Title. Part No. Date Sign. Surface tre First angle projection Created Mads Lauenborg 23.10.2017 Material Appr. 26.11.2018...
-
Page 12: Warranty
If the device fails within this period of time under normal use, Clayton Power will, free of charge, at a place of Clayton Power’s choosing, repair or replace the device - with new or reconditioned parts or a new or reconditioned device as Clayton Power deems necessary.
