Waterdrop WD-XT Installation Manual

Installation Manual
Specifications
Water Tank Capacity: 0.26 gallon/1L
Water Tank Size: 4.1 * 4.1 * 7.3 inches/113.8 * 113.8 * 185.5 mm
Working Temperature: 41-100ºF/5-38ºC

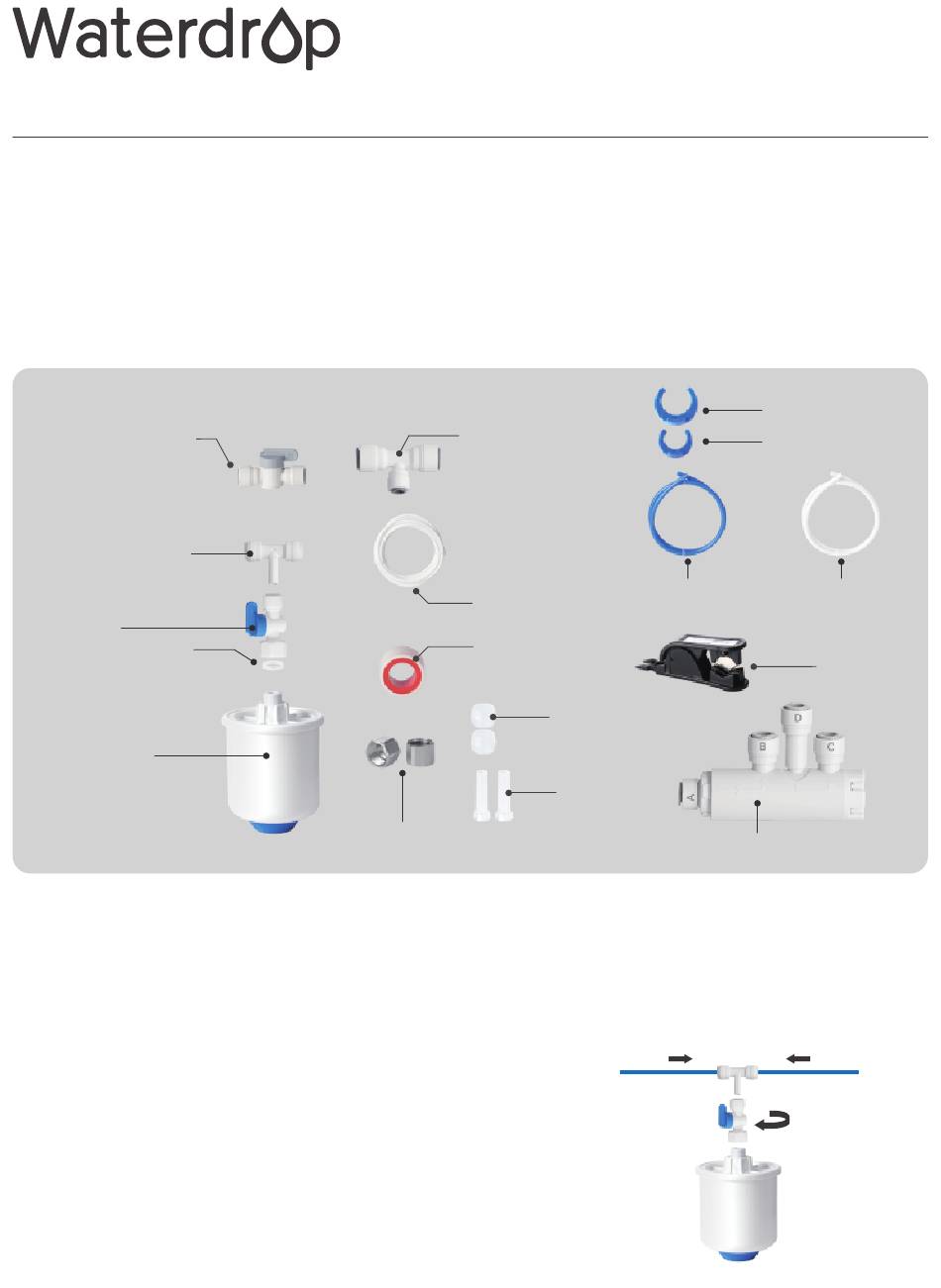

Components:
② 3/8" - 3/8" Tee valve
③ 3-way quick fitting
④ Ball valve
(with sealing washer)
⑤ Pressure mini
water tank
Installation instructions
Step 1
a. Connect an input water tubing(white) with a port A of the distribution valve.
b. Connect the B port of the distribution valve to the inlet port of RO system with the
white input tubing.
Step 2
Connect 3-way quick fitting, Ball valve, and
pressure mini water tank.
NOTE: Screw the ball valve onto the water tank
until tight. You don't need to screw the ball valve to
the bottom of screw thread on water tank.
⑥ 3/8" - 3/8" - 1/4"
Tee fitting
1/4" PE tubing
Teflon tape
⑧ 1/4" Compression hex nut*2
Model: WD-XT
3/8" PE tubing
(Blue)
⑦ Sleeve*2
⑨ Insert*2
① Distribution valve
3/8" Lock clip*14
1/4" Lock clip*2
3/8" PE tubing
(White)
Tube cutter
