System overview

The LECTUS select E reader reads data from contactless RFID credentials and sends the
data to a higher-level control center. This is where the evaluation takes place as to whether
a credential is authorized or not. The result is sent back to the reader, which then provides
a visual and an acoustic signal. Communication between the reader and the control center
takes place via an encrypted protocol over an RS485 bus.
The reader has a compact design and is available in two variants, with and without a
keyboard. Flush-mount and wall-mount options are available for each variant. The flush-
mounted reader fits into any device box in flush-mounted or hollow-wall design according to
DIN, with a screw spacing of 60 mm.
The readers support tamper monitoring through an optical sensor. They are suitable for both
indoor and outdoor use.
Connection type: push-in spring connector.
3.1

Mounting options and dimensions

Flush-mount installation

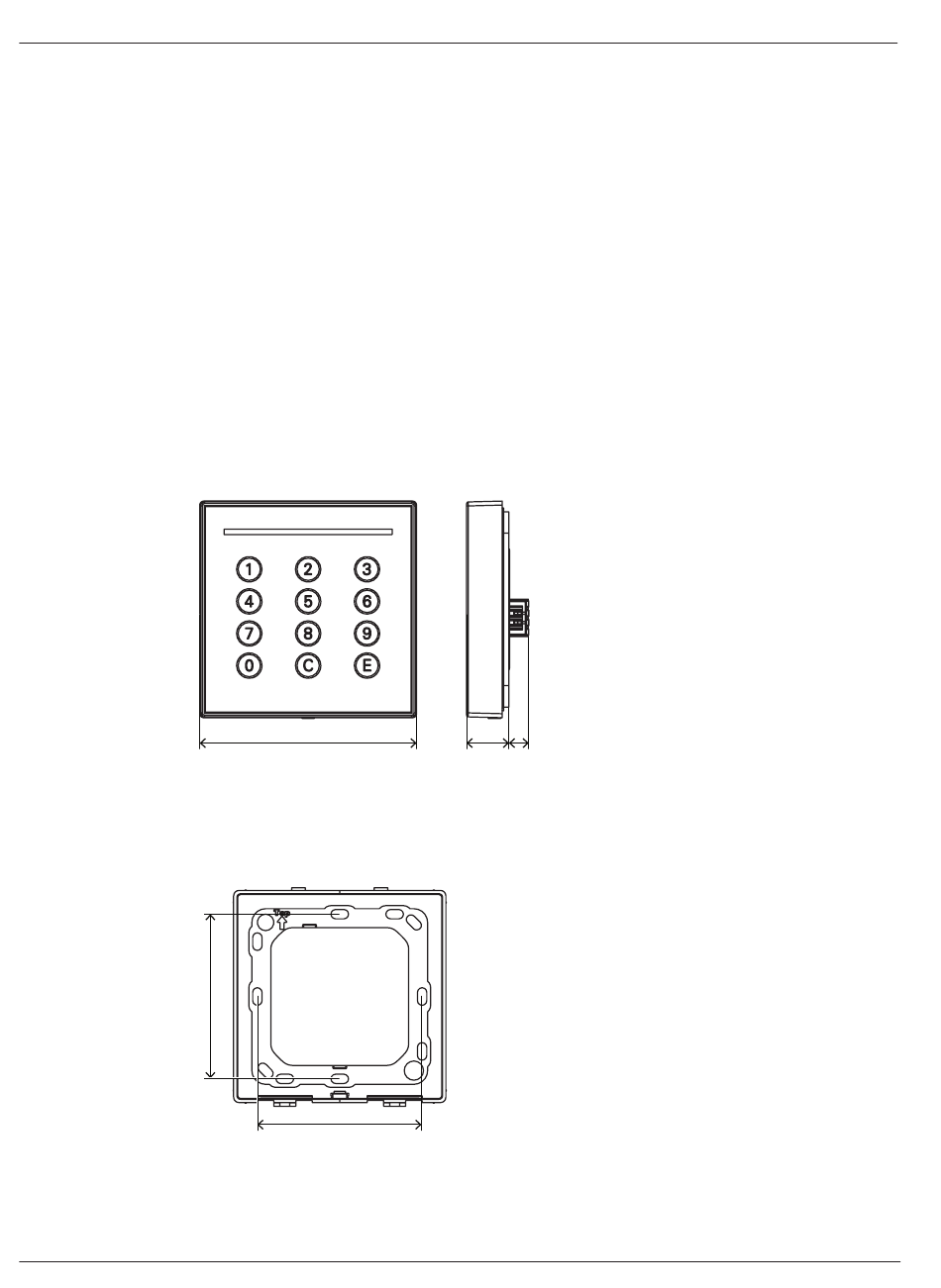

Figure 3.1: Dimensions of reader with fixed wall bracket
The wall bracket is included in the reader delivery.
60
Figure 3.2: Dimensions of wall bracket
