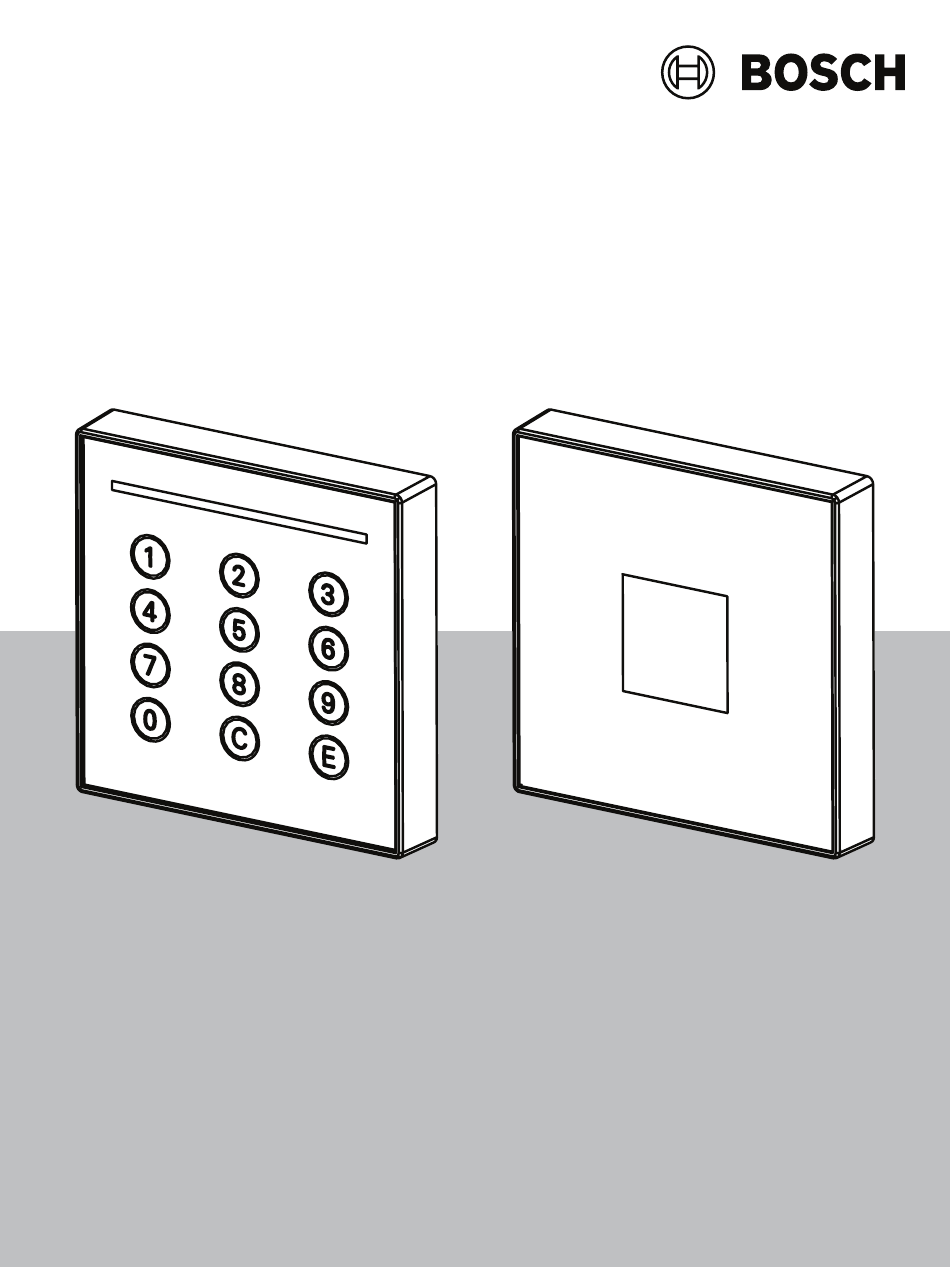

- Page 1 LECTUS select E ARD‑ESELECT‑BO | ARD‑ESELECT‑BOK | ARD‑ESELECT‑WO | ARD‑ESELECT‑WOK Installation manual...
- Page 3 LECTUS select E Table of contents | en Table of contents Safety FCC Class B Short information Introduction Parts included System overview Mounting options and dimensions Supported protocol RFID technology Transponder data Reading distances Installation Considerations on installation location Mechanical structure of the flush-mount installation...
- Page 4 | Safety LECTUS select E Safety – Read, observe and keep the instructions - the entire safety and operating instructions must be read and correctly followed before the readers are operated. – Take all warnings into account - follow all warnings on the devices and in the operating instructions.
- Page 5 LECTUS select E Safety | en Danger! - The device must be operated in a fully assembled state only. - Before connecting the device to the power supply, make sure that the connected operating voltage does not exceed the permitted values according to the technical specifications.
- Page 6 Introduction This installation manual is aimed at authorized service providers. The installation manual contains instructions on the installation and configuration of the proximity reader LECTUS select E by Bosch Security Systems. Figure 2.1: LECTUS select E readers 2024-11 | V02 | Bosch Security Systems B.V.
- Page 7 LECTUS select E Short information | en Parts included Quantity Component Reader module Wall bracket Screws Quick installation guide Safety and security information Bosch Security Systems B.V. 2024-11 | V02 | Installation manual...
- Page 8 LECTUS select E System overview The LECTUS select E reader reads data from contactless RFID credentials and sends the data to a higher-level control center. This is where the evaluation takes place as to whether a credential is authorized or not. The result is sent back to the reader, which then provides a visual and an acoustic signal.
- Page 9 Available accessories: ARA-ESELECT-GWA, ARA-ESELECT-WWA. 28.8 Figure 3.4: Dimensions of the wallmount box Supported protocol The readers support the OSDP v2 protocol. RFID technology The LECTUS select E readers support the following RFID technology: – MIFARE DESFire EV1 – MIFARE DESFire EV2 –...
- Page 10 | System overview LECTUS select E – MIFARE DESFire EV1 2k / 4k / 8k – MIFARE DESFire EV2 and EV3 – ISO 14443A transponder (CSN) Reading distances The normal reading distance depends on the respective reading system, the installation environment and the type of data carrier.
- Page 11 LECTUS select E Installation | en Installation Considerations on installation location When choosing the installation location, please note: The readers can interfere with each other or be negatively influenced by other systems and sources of interference. The readers can still disturb each other at a distance of approx. two to three times the reading distance.
- Page 12 | Installation LECTUS select E Installing data and supply lines When supplying the reader with power, especially over longer distances, ensure that the cable cross-section is adequate. Since the power consumption of the individual systems is partially pulsed, short-term voltage drops cannot be detected with a conventional multimeter (digital or analog).
- Page 13 LECTUS select E Installation | en Wire type Wire Gauge Diameter Stranded wire AWG 28-16 Cable stripping length 6 to 7 mm Solid wire NOTE: No additional tool is required to connect the wires to the reader. Push the correspondent orange button to plug a flexible wire into the connector. Solid wires and ferrules can be plugged in directly.
- Page 14 | Installation LECTUS select E Figure 4.4: Mounting the reader support in surface-mount installation 4.6.2 Configuring the reader DIP switches Depending on the firmware function, the DIP switches of the reader module must be set accordingly. The reader has 4 DIP switches. Each switch is numbered from 1 to 4.
- Page 15 LECTUS select E Installation | en Address switch BUS terminator resistor (default: OFF) Table 4.1: OSDP protocol NOTE: DIP switch 4 is reserved for the BUS terminator resistor and is not used for address 8, unlike other readers. For information on resetting the OSDP key, refer to Resetting the OSDP key, page 17.
- Page 16 | Installation LECTUS select E Figure 4.7: Connecting and mounting the reader module in flush-mount installation Figure 4.8: Inserting the connector in surface-mount installation (step 1) 2024-11 | V02 | Bosch Security Systems B.V. Installation manual...
- Page 17 – if the reader must be disposed. Use the separate configuration card ARA-OSDP-RES to perform a reset in a LECTUS select E reader and do the following: Power off the reader.
- Page 18 | Installation LECTUS select E Within the first 5 seconds, present and hold the card in front of the reader. After the reader beeps 5 times, remove the card. After the green LED of the reader flashes in quick succession, power cycle the reader again by properly configuring the DIP switches.
- Page 19 LECTUS select E Care instructions | en Care instructions – Do not operate the reader with sharp objects, such as rings, fingernails and keys. – For cleaning, do not use any corrosive or plastic-corrosive liquids such as gasoline, turpentine, and nitrous solution. Harsh detergents can damage or discolor the surface.
- Page 20 | Disposal LECTUS select E Disposal Old electrical and electronic equipment This product and/or battery must be disposed of separately from household waste. Dispose such equipment according to local laws and regulations, to allow their reuse and/or recycling. This will help in conserving resources, and in protecting human health and the environment.
- Page 21 LECTUS select E Technical specifications | en Technical specifications Mechanical Dimensions (H x W x D) (mm) 81 mm x 81 mm x 24 mm Dimensions (H x W x D) (in) 3.2 in x 3.2 in x 0.9 in Color Black;...
- Page 22 | Technical specifications LECTUS select E Connectivity Reader interfaces RS485 System integration Protocols / standards OSDP v2 * It is not set by default. Requires specific configuration with OSDP protocol. Ask for more information in advance. 2024-11 | V02 | Bosch Security Systems B.V.
- Page 23 Troubleshooting – Repair & Exchange – Product Security Bosch Building Technologies Academy Visit the Bosch Building Technologies Academy website and have access to training courses, video tutorials and documents: www.boschsecurity.com/xc/en/support/training/ Bosch Security Systems B.V. 2024-11 | V02 | Installation manual...
- Page 24 | More information LECTUS select E 2024-11 | V02 | Bosch Security Systems B.V. Installation manual...
- Page 25 LECTUS select E More information | Bosch Security Systems B.V. 2024-11 | V02 | Installation manual...
- Page 26 | More information LECTUS select E 2024-11 | V02 | Bosch Security Systems B.V. Installation manual...
- Page 28 Bosch Security Systems B.V. Torenallee 49 5617 BA Eindhoven Netherlands www.boschsecurity.com © Bosch Security Systems B.V., 2024 Building solutions for a better life 202411271313...
