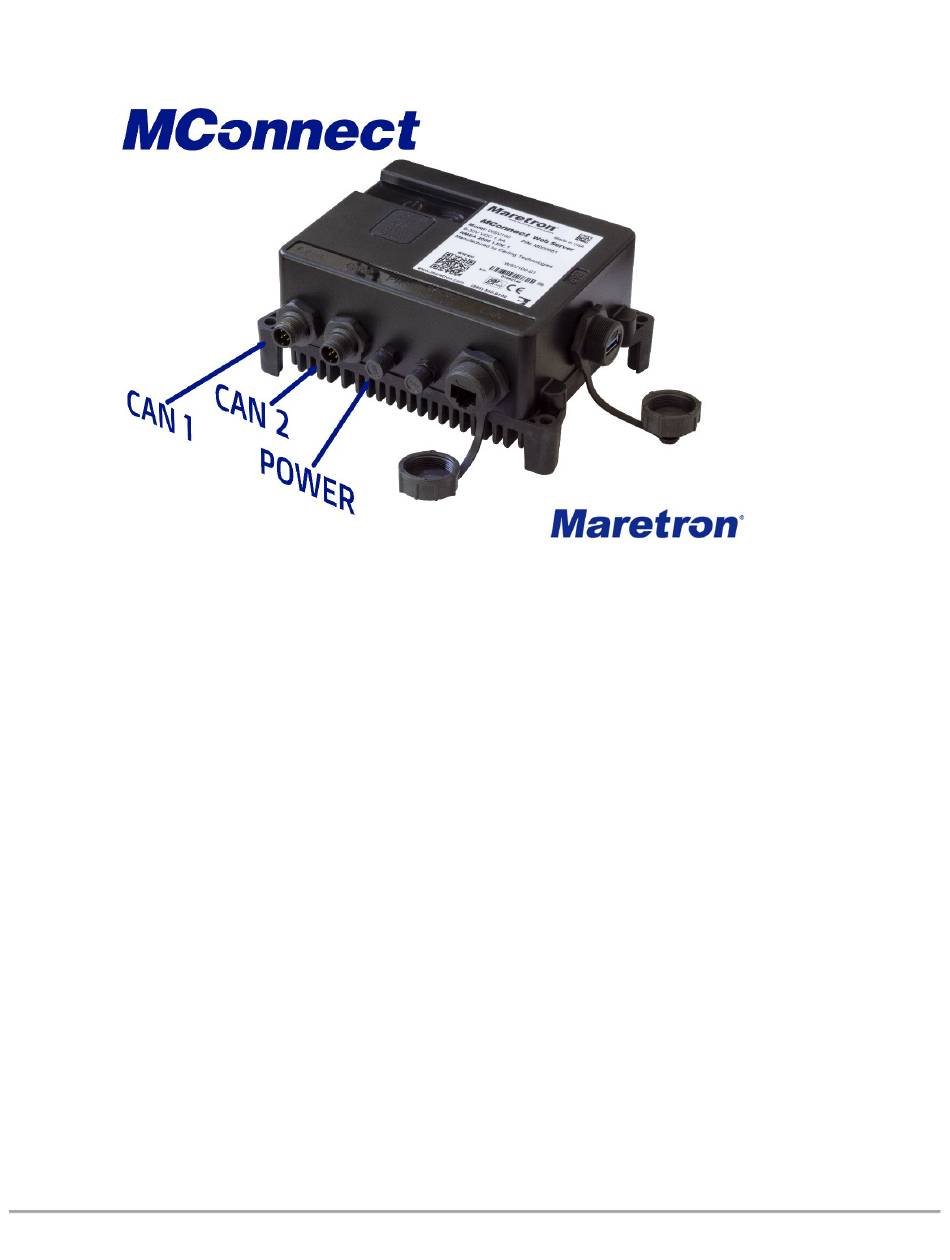

MConnect - Quick Install Guide
1. Connect Power
The Power Cord is included in the box. MConnect requires 9-30 V DC at 1.5 A. The wire colors are:
Black : +ve
Brown : -ve
Blue : not used
A red LED on the top of the box will show when power is connected and will change to green/yellow when the program
starts (this will take 10-20 seconds).
2. Connect to NMEA 2000 network.
Two networks may be connected. They will not be bridged by MConnect, but will be treated as a single logical network,
i.e. Instance numbers must be unique across both networks. The unit will work using demo data without an NMEA 2000
connection; all the demo data uses instances 100 through 104. Green LEDs on the top of the box will flash when NMEA
2000 data is being received.
3. Connect Ethernet Cable
MConnect does not have a DHCP server, so it should be connected directly to a Router or MFD with a DHCP Server. The
"LAN" LED will flash when the Ethernet is connected.
4. The MConnect URL
MConnect supports mDNS. Typing the URL mconnect.local in a web browser on a PC / Mac / tablet should resolve to the
IP Address of the box.
Doc No: M003145
Advertisement
Related Manuals for Maretron MConnect WSV100
Summary of Contents for Maretron MConnect WSV100
- Page 1 MConnect - Quick Install Guide 1. Connect Power The Power Cord is included in the box. MConnect requires 9-30 V DC at 1.5 A. The wire colors are: Black : +ve Brown : -ve Blue : not used A red LED on the top of the box will show when power is connected and will change to green/yellow when the program starts (this will take 10-20 seconds).
- Page 2 If this does not work, insert a USB Drive into the port on the side of the box for 30 seconds. The “USB” LED on the top of the box should flash while the USB drive is inserted. Note: If the “USB” LED does not flash, there is a chance that the USB is drawing more current than the USB chipset can handle.
- Page 3 5. Commands and Settings Pressing the Settings Menu button will show the following options for dialogs. On screens that don’t have a Settings Menu button, a cog symbol will be displayed (normally at the top right of the screen). Pressing the button will show the Dialog Menu: 6.
- Page 4 MConnect using the Image Manager before they can be selected in the Screens editor. To create a new configuration, open the configuration panel at the top left, and press the New button. For more details, see the full MConnect Manual, which can be downloaded from the Maretron Website https://www.maretron.com/products/mconnect/ 8.
