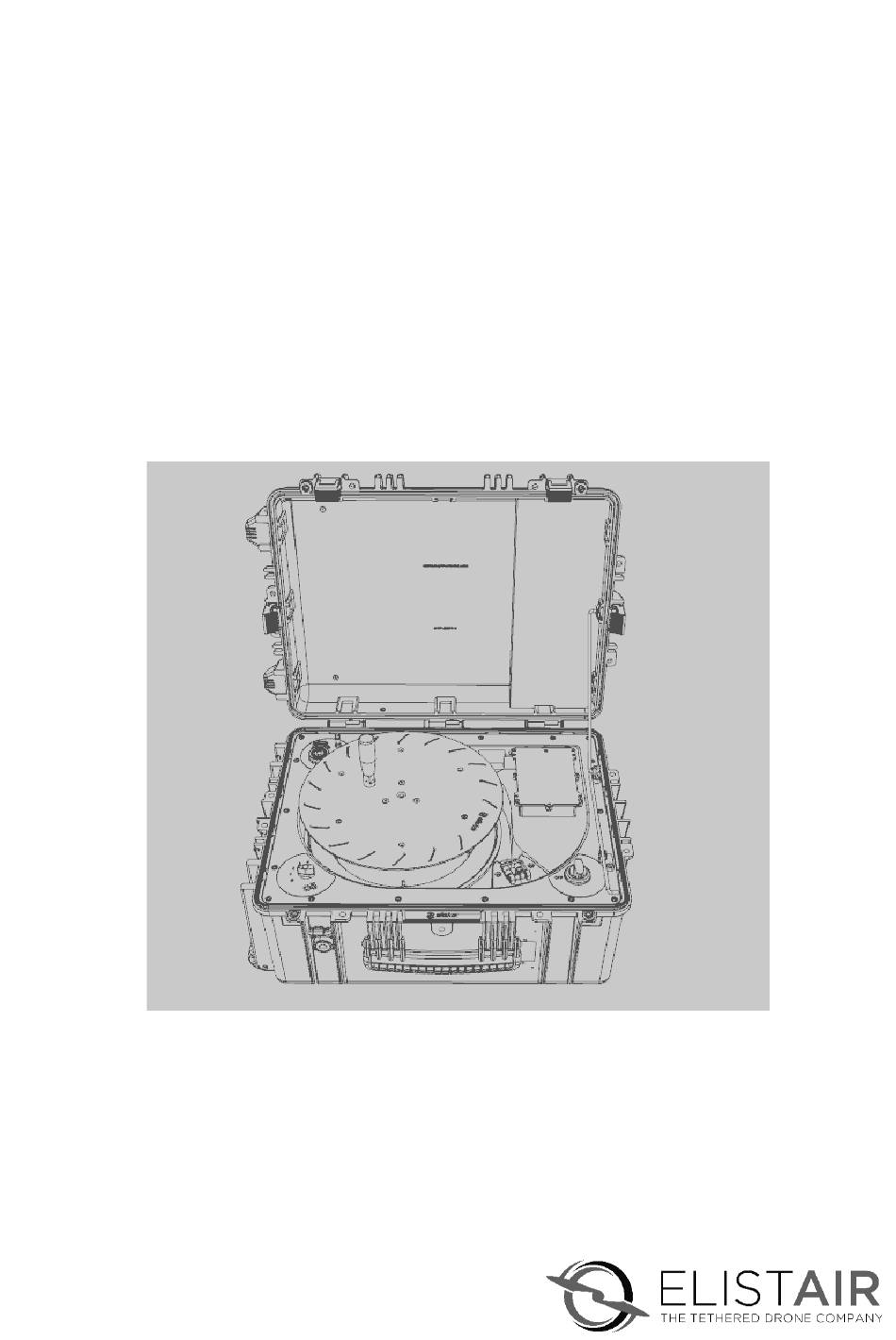

  • Page 1 LIGH -T User Manual V4.1...

  • Page 2: Table Of Contents

    Ligh-T User Interfaces .................................. 2 Air Module ..................................... 2 Using Ligh-T ....................................3 Check Your Drone Compatibility ..........................3 Download the Elistair T-Monitor App for Android ..................... 3 Prepare the Ligh-T ................................. 3 During and After Flight ..............................3 Specifications ....................................4 Disclaimer ......................................

  • Page 3: Ligh-T

    Ligh-T The Elistair Ligh-T is a compact and rugged tether station for drones, offering extended flight time to drone operators. The micro-tether provides a continuous power supply, secure and high-speed data transfer and physical security against fly away. Easily transportable and deployable on various types of terrain, the Ligh-T is compact, and can be operational in minutes.

  • Page 4: Ligh-T User Interfaces

    This manual uses the Elistair Standard Air Module Data (6S or 12S versions) as an example. For other Elistair Air Modules used with the Ligh-T, please refer to and carefully read the Air Module User Manual for complementary information.

  • Page 5: Using Ligh-T

    The messages are activated in case of power outage, cable limit reached and other incidents. To install the T-Monitor Android application, go to www.elistair.com/app.apk and download the app. The password is: Elistair. 3- Prepare the Ligh-T Position the Ligh-T horizontally on a flat surface.

  • Page 6: Specifications

    Specifications Ligh-T • Dimensions 627x475x292 mm (25x19x12 in) Weight 20 kg (44 lbs.) Built-in protection Fuse Power Supply Cable Type E Micro-Tether Management Dual-mode Winch: Manual with handle or Motorized Wi-Fi Connectivity Protocol 802.11 b/g/n, Frequency 2.4G-2.5G (2400M-2483.5M) Encryption WEP/TKIP/AES, Security WPA/WPA2. T-Monitor Android application (WIFI) Carriage 3 + telescopic handle and wheels...

  • Page 7: Disclaimer

    In using this product, you agree to this disclaimer and certify that you have understood all points completely. The manufacturer and seller assume no liability for any damages or injuries resulting from the use of this product. ELISTAIR is a registered trademark of ELISTAIR. This product and manual are copyrighted by ELISTAIR with all rights reserved. No part of this product shall be reproduced in any form without the prior written consent or authorization of ELISTAIR.

  • Page 8: Disclaimer And Warning

    A DISCLAIMER OF WARRANTIES AND YOU MAY HAVE OTHER RIGHTS THAT VARY FROM JURISDICTION TO JURISDICTION. Elistair accepts no liability for damage, injury or any legal responsibility incurred directly or indirectly from the use of this product. The user shall observe safe and lawful practices including, but not limited to, those set forth in these Safety Guidelines.

  • Page 9: Individual Parts

    Please note that the ventilation grid needs to be free of obstructions to ensure a proper airflow and cooling of the Air Module. A 3D model of the Air Module can be supplied by Elistair (.step file) for integration work.

  • Page 10: Setup Precautions

    Quick Maintenance Procedure Ligh-T Wind out and wind in the entire micro-tether and ensure that it is free from any slowdowns or snagging. At the same time carry out a visual check for damage to the micro-tether. Check that all parts on the Ligh-T are still secure and in good shape. Check for rust or wear on the station, especially externally.

  • Page 11: Appendix

    Appendix Buzzer Signals on Control Board Warning Type Power consumption 10.5g/m Power consumption 16 g/m Alert 1 Beep-Beep 950 W 1250 W Alarm Continuous Beep 1200 W 1500 W The alarm will also turn on to indicate that your power consumption has dropped under 200 W after the drone’s take- off.

  • Page 12: Technical Drawings

    Technical drawings...
  • Page 16 EUROPE AMERICAS Elistair Elistair, Inc 12 Chemin des Hirondelles 55 E 59th Street – 15th floor 69570 Dardilly, France 10022 New York, NY, USA Customer service desk: +1 347 305 0191 Customer service desk: +33 9 83 57 06 39 Dealer service desk: +1 415 315 9389 support@elistair.com...
