- Page 1 LIGH- User Manual V3.0 Last edition – 28.08.2018...
-
Page 2: About
ELISTAIR is a registered trademark of ELISTAIR. This product and manual are copyrighted by ELISTAIR with all rights reserved. No part of this product shall be reproduced in any form without the prior written consent or authorization of ELISTAIR. -
Page 3: Table Of Contents
Ligh-T User Manual Contents Disclaimer ..........................................0 About ............................................0 Contents ..........................................1 General Description ......................................2 Overall Presentation ...................................... 2 General Specifications ....................................3 Power Specifications ......................................4 Main Interfaces ........................................4 Ground Station ........................................5 Ground Station User Interface .................................. 6 Micro-Tether ......................................... -
Page 4: General Description
Ligh-T User Manual General Description Overall Presentation Ligh-T is a rugged tethering station for multirotor drones. This compact and robust solution enables the transmission of power from an external ground power supply unit to the drone through the micro- tether. The aramid core of the micro-tether ensures the drone remains attached to the base station providing a safe phase of flight. -
Page 5: General Specifications
Ligh-T User Manual General Specifications Air Module Ground Station Weight 700g Dimensions 475 x 415 x 211 mm Dimensions 168x108x54mm Weight 12kg Output voltage 23-25 VDC Micro-Tether Manual with handle Management Power Drone AS150 Red Female connectors XT150 Black Female 220-250VAC, Power Input 50-60 Hz, 3kW min. -
Page 6: Power Specifications
Ligh-T User Manual Power Specifications The Ligh-T station is available in different configurations depending on the drone that is to be connected: 16g/m micro-tether or 10.5g/m micro-tether, at a length of 60m (200ft). Micro-tethers 10.5g/m 16g/m Tether strength 1000N 1500N Tether total weight 630g 950g... -
Page 7: Ground Station

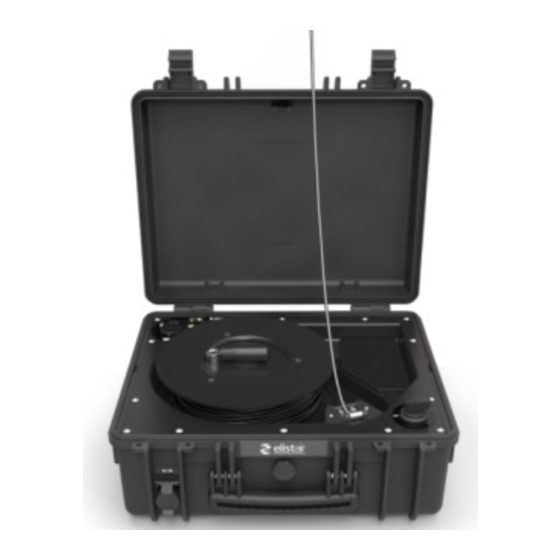

Ligh-T User Manual Ground Station The ground station is a ruggedized case with two main functions. Firstly, it adapts the power signal from an external power supply unit for the micro-tether and secondly it ensures an Ethernet communication between the drone and the ground station. Non-conducting and crushproof, the Ligh-T case is tailored for demanding field operations. -
Page 8: Ground Station User Interface
Ligh-T User Manual Ground Station User Interface The ground station user interface includes a control board with 4 elements: 1. Power Socket: The power socket is located on the back of the station. It allows the station to be connected to 230V 50Hz. In case of an emergency, unplugging the cable will cut the power supply to the station. -
Page 9: Air Module
Please note that the length of drone and battery cables is around 15 cm. Please note that the ventilation grid needs to be free of obstructions to ensure proper airflow and cooling of the air module. A 3D model of the air module can be supplied by Elistair (.step file) for integration work. - Page 10 Ligh-T User Manual Mechanical interface All content is confidential. All rights reserved. 8...
-
Page 11: Precautions Of Use
3. Do not try to disconnect the tether from the Ligh-T. This operation can only be done by a member of the Elistair maintenance team. 4. Regularly inspect the Ligh-T with routine visual checks as described in the maintenance part of this User Manual. -
Page 12: Flight Precautions
Ligh-T User Manual Flight Precautions 16. Ensure that all parts of Ligh-T are in good conditions before each flight. Do not fly with broken or damaged parts. 17. Make sure that all Ligh-T output signals are in proper working order before use. 18. -
Page 13: Setup
55°C 65°C system too high If you encounter any problems you cannot resolve, contact your dealer or ELISTAIR customer service. Setup Pre-Flight Check List Ensure that all parts of the Ligh-T are in a good condition before each flight. Do not fly with broken or damaged parts. -
Page 14: Maintenance
If you notice any issue during the inspection of your Ligh-T, contact your dealer or ELISTAIR customer service. Support At ELISTAIR, we rank customer satisfaction as our top priority and we will provide you with the highest level of after-sales support. For any technical assistance you might need, get in touch with our maintenance engineers at:... - Page 15 Ligh-T User Manual All content is confidential. All rights reserved. 13...
