Ideal-Standard Waverley U470301 Installation

WAVERLEY
High Level WC Suite

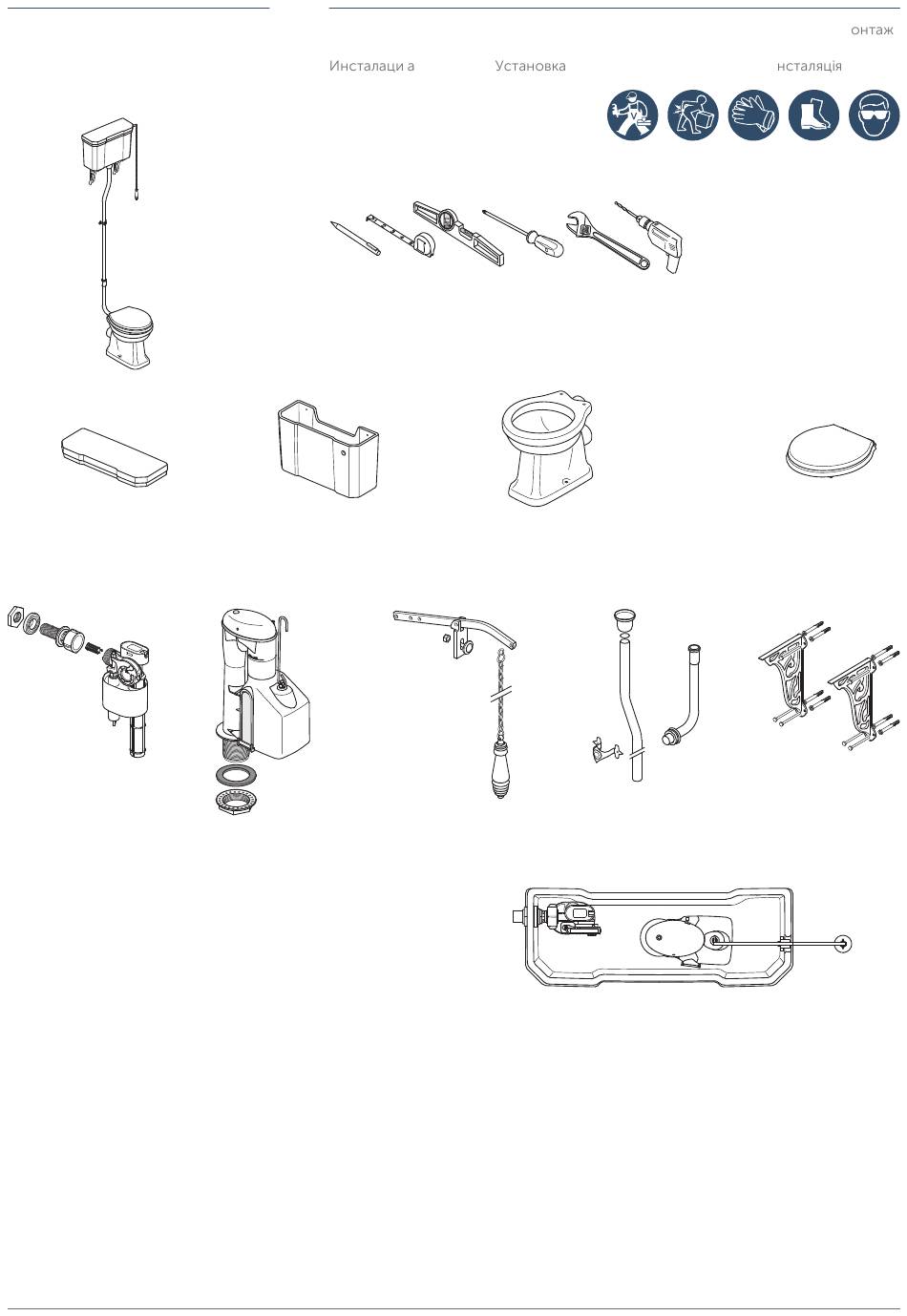

Parts Supplied
Cistern Lid
Fixings Packs Supplied
Inlet Valve
Before Starting
• Check the pack and make sure you have all the parts listed. If
not, contact the vendor who will be able to help you.
• When you are ready to start, make sure that you have the right
tools to hand, plenty of space and clean, dry area for assembly.
• Ensure the water feed and waste connection points are
positioned appropriately for the installation.
• Caution: Care should always be taken when drilling into walls
and floors to avoid any sunken wires or pipes.
• Operating water pressure for inlet valve 0.2 Bar - 8.0 Bar.
• Please note: Although these instructions are comprehensive,
it is always recommended that a technically competent installer
should undertake installation.
• Servicing valve: The Water Regulations have requirement to fit
a servicing valve adjacent to the cistern. (Not supplied).
Warning
Do not or drop any chlorine or chermical related components
into the cistern or WC. Use of such products will:
(a) Result in damage to tank components, and may cause flood
and property damage.
(b) Void warranty.
Do not overtighten nuts or tank / bowl may crack.
Installation - Installazione - Installation - Montage - Instalación - Montering - M
Montáž - Paigaldamine - Εγκατασταση - Beszerelés - Montavimas - Montāža - Instalare
Tools/Materials Required
(not supplied)
Parts Required (not supplied)
• Brass Screws and Fixing Plugs to secure the cistern to the wall
• Brass Screws and Fixing Plugs to secure the pan to the floor
Cistern
Syphon Fulcrum arm assembly
j - Montaż - - Montaža - Montáž - Montaj - I
Closet Bowl
Pull chain
Cistern Assembly and Installation
1. Fit the syphon. Check the angle is positioned correctly,
towards the fulcrum lever arm asembly location. Ensure the
seal is inside the cistern and tighten syphon back nut. The
syphon is factory set to 6L.
2. Fit the fulcrum lever arm assembly. Hook the syphon c-link
through the lever arm hole and secure the fulcrum lever arm
assembly in position with the fixing bolt.
3. Fit the inlet valve. Ensure the seal is inside the cistern and
tighten inlet valve back nut, making sure the inlet valve is not in
contact with the cistern wall. Recommended torque for back
nut is 4~6 N.M. (Newton Meters). Please see separate inlet valve
instructions.
Flushpipe set
Seat and Cover
Wall brackets
1
