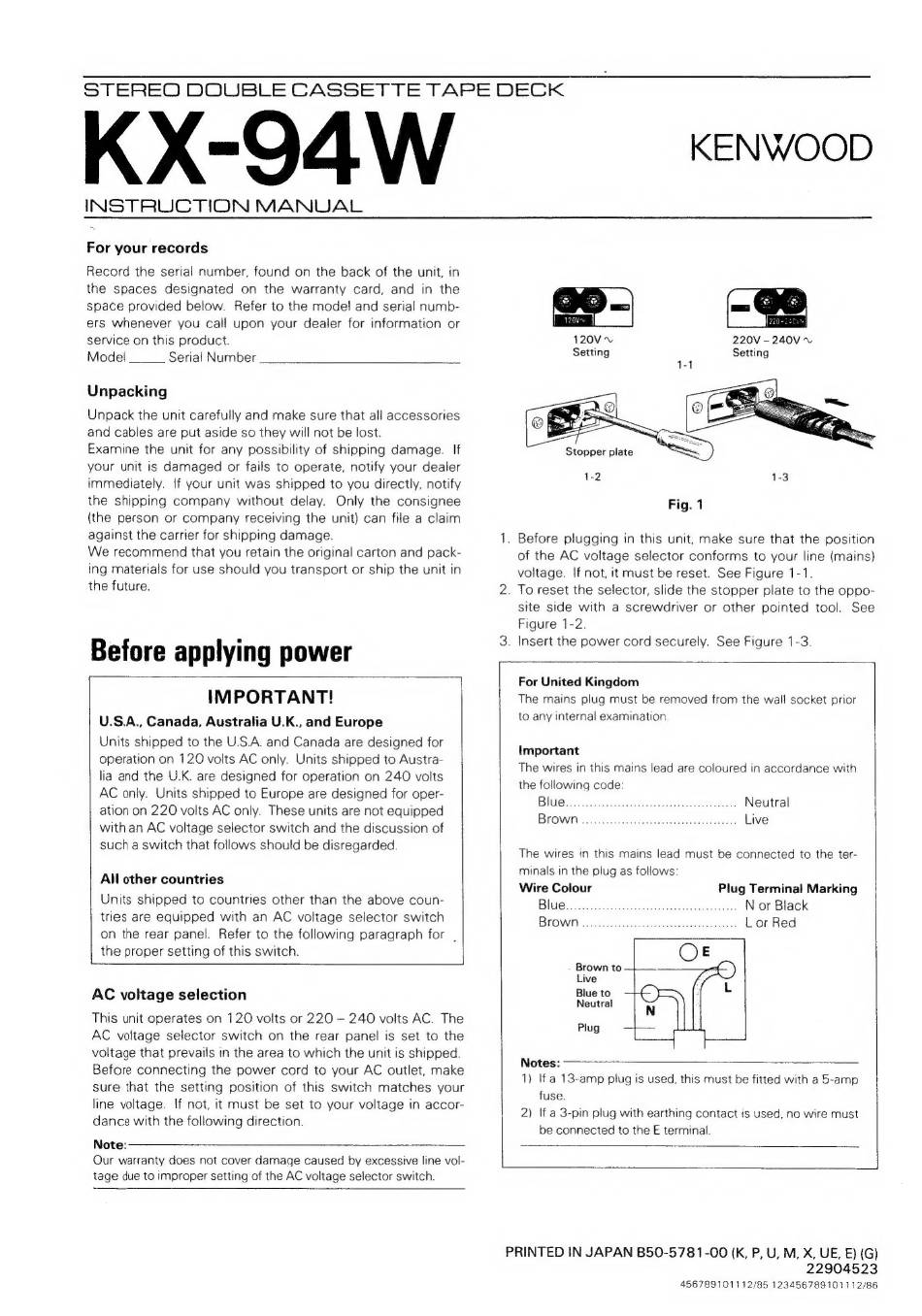

Kenwood KX-94W Instruction Manual

STEREO DOUBLE CASSETTE TAPE DECK
KX-94W
INSTRUCTION MANUAL
For your records
Record the serial number, found on the back of the unit, in
the spaces designated on the warranty card, and in the
space provided below. Refer to the model and serial numb-
ers whenever you call upon your dealer for information or
service on this product.
Model Serial Number
Unpacking
Unpack the unit carefully and make sure that all accessories
and cables are put aside so they will not be lost.
Examine the unit for any possibility of shipping damage. If
your unit is damaged or fails to operate, notify your dealer
immediately. If your unit was shipped to you directly, notify
the shipping company without delay. Only the consignee
(the person or company receiving the unit) can file a claim
against the carrier for shipping damage.
We recommend that you retain the original carton and pack-
ing materials for use should you transport or ship the unit in
the future.
Before applying power
IMPORTANT!
U.S.A., Canada, Australia U.K., and Europe
Units shipped to the U.S.A. and Canada are designed for
operation on 120 volts AC only. Units shipped to Austra-
lia and the U.K. are designed for operation on 240 volts
AC only. Units shipped to Europe are designed for oper-
ation on 220 volts AC only. These units are not equipped
with an AC voltage selector switch and the discussion of
such a switch that follows should be disregarded.
All other countries
Units shipped to countries other than the above coun-
tries are equipped with an AC voltage selector switch
on the rear panel. Refer to the following paragraph for .
the proper setting of this switch.
AC voltage selection
This unit operates on 120 volts or 220 — 240 volts AC. The
AC voltage selector switch on the rear panel is set to the
voltage that prevails in the area to which the unit is shipped.
Before connecting the power cord to your AC outlet, make
sure that the setting position of this switch matches your
line voltage. If not, it must be set to your voltage in accor-
dance with the following direction.
Note:
Our warranty does not cover damage caused by excessive line vol-
tage due to improper setting of the AC voltage selector switch.
KENWOOD
120Vv 220V -240V ~~
Setting Setting
Stopper plate
1-2 1-3
Fig. 1
1. Before plugging in this unit, make sure that the position
of the AC voltage selector conforms to your line (mains)
voltage. If not, it must be reset. See Figure 1-1.
2. To reset the selector, slide the stopper plate to the oppo-
site side with a screwdriver or other pointed tool. See
Figure 1-2.
3. Insert the power cord securely. See Figure 1-3.
For United Kingdom
The mains plug must be removed from the wall socket prior
to any internal examination
Important
The wires in this mains lead are coloured in accordance with
the following code:
The wires in this mains lead must be connected to the ter-
minals in the plug as follows:
Wire Colour Plug Terminal Marking
BGG. ot sp ntycasttsty obnsaninan ule snediueate N or Black
BLOWIN aie detiaehs aeenongeagemraciong Selena cea L or Red
Brown to 7
Live ©)
Blue to
Neutral ©)
Plug
Notes:
1) Ifa 13-amp plug is used, this must be fitted with a 5-amp
fuse.
2) If a 3-pin plug with earthing contact is used, no wire must
be connected to the E terminal.
PRINTED IN JAPAN B50-5781-00 (K, P, U, M, X, UE, E} (G)
