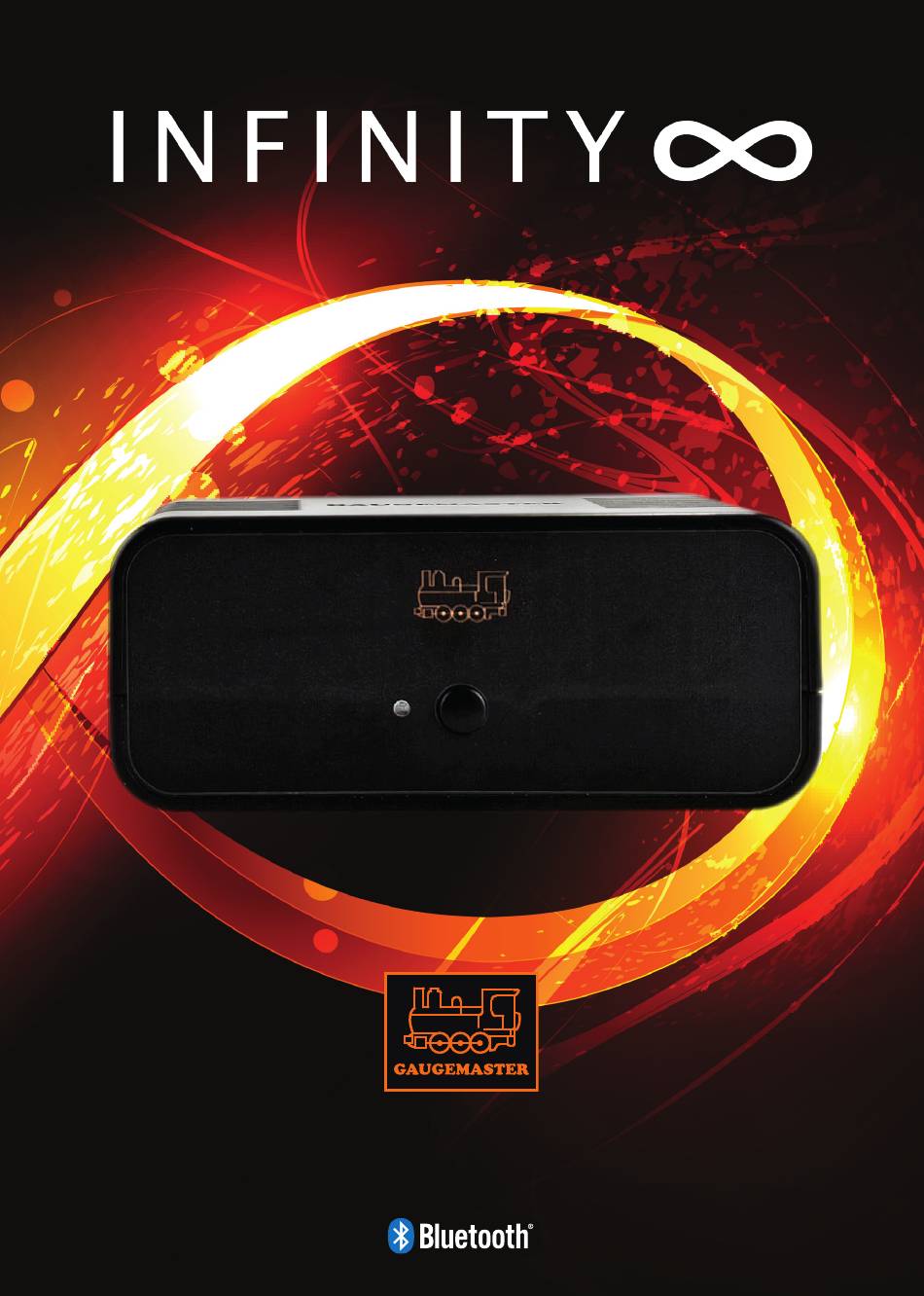

- Page 1 MODEL RAILWAY CONTROL [and beyond] Consort Digital Expansion Unit User Manual...
-
Page 2: System Specifications
∞ THE INFINITY DIGITAL RANGE Before we get started take a look through the full Gaugemaster Infinity Digital Range below: GMI-D01 Infinity Digital Sovereign Control Package GMI-D31 Infinity Digital Switch Accessory Decoder GMI-D11 Infinity Digital Consort Expansion/Booster GMI-D41 Infinity Digital Power Supply GMI-D21 Infinity Digital Remote Controller GMI-U01 Infinity Connect Lanyard Set ∞ SYSTEM SPECIFICATIONS POWER SUPPLY INPUT: 100-240v ~ 50/60Hz The power supply has a UK “Figure 8” IEC C7 cable that can be replaced with an EU or US compatible cable. POWER SUPPLY OUTPUT: 15.0v 4A DC Always user the correct power supply. An incorrect power supply can damage your system. There are no user serviceable parts. Do not attempt to repair. Not for outdoor use. Do not attempt to use if the cord is damaged. Adult use only. TRACK TERMINAL OUTPUT: 15v 3.2A max. USB PORT: USB-C Type C cable required (not supplied) The USB port is for updating the firmware in the Base Unit only and must never be connected to other devices. Details on how this is achieved will be available on our website along with any updates at: https://gaugemaster.info/InfinityUpdates BLUETOOTH INFORMATION: Low energy. ISM Band 2.402 to 2.480 GHz. 50m range ® (Will vary on surroundings). HANDSET BATTERIES: Requires 2 x AA/R6/UM-3 Batteries Please Note: Always store your system in warm dry conditions. Power supplies and Base Units are for indoor use only and never let any part of your system get wet. There are no user serviceable parts inside... - Page 3 ∞ INTRODUCING YOUR CONSORT Your Gaugemaster Infinity Sovereign system is easy to add to. This ensures your control system can grow with your layout and you don’t need to worry as your model railway becomes larger. The Gaugemaster Infinity Consort Expansion Units are a simple way to extend the operational remit. Each unit gives you two benefits. Firstly, they give you the ability to connect two additional Digital Remote Handsets to your Infinity environment, and secondly, they offer the ability to add a second power district to your layout. When you first connect up your Gaugemaster Infinity you will be creating one power district. Essentially one connection of power to one area. When expanding your system with an Infinity Consort unit, it adds another power district to your layout rather than just upping the power. This new district is simply a section of your layout isolated from the other. This could be a new area, or half of your existing layout. The Consort is then connected to this section, giving you another area of power to draw from, without any disruption to layout operation. Front View - System Status LED GREEN = Connected to a handset and working. GREEN (FLASHING) = Powered up but not connected to a Main Unit. RED = Stop button or Stop key has been pressed. - Centre Button, used for pairing (held down) or as an Emergency Stop - press once to activate and again to release. Rear View - USB Port used for firmware updates.‡ - DCC Sniffer Input Port*‡ - Main Track Power Output* (15v 3.2A max) - Expansion Port “IN” for use with Infinity expansion units† - Expansion Port “OUT” for use with Infinity expansion units† - Programming Track Output‡ - Infinity Power Supply Input *Green Plugs provided for easy connections. †Expansion Units available separately. ‡ These outputs are non-functional when this unit is connected to a Sovereign or another Consort Unit. ∞ The Main Track Output This output powers the new power district on your layout. The track feed wires or bus (a pair of cables...
- Page 4 ∞ Expansion Unit Overload Protection In the event the main track is overloaded on either unit, the light on the affected Base Unit will flash RED. Find the source of the problem and rectify immediately, once this is done the system will continue where it left off. Connecting Your Consort Expansion Unit Connecting your Consort expansion units couldn’t be easier! Simply plug the power supply into your new Consort Expansion unit (remembering to turn the power on at the wall!), and then, on your Sovereign Base Unit, connect one end of the Expansion Cable into the “OUT” port and the other end into the “IN” port of your Infinity Consort Expansion Base Unit. Main Unit Expansion Unit All the lights on the Base Units will now show a steady green and pressing the centre button on either of the Base Units will stop all activity on all the Base Units (represented by a constant red light and your handset displaying a message accordingly). You can now connect the “Main Track” output to the new area it will be powering. PRO TIP - When connecting new sections - make sure the new section is isolated from the original section with rail breaks or isolating rail joiners on both rails. Locations are marked in purple below. Main Unit Expansion Unit This is a very basic example of how you can create a layout with two power districts. You can also add up to four Consort units in succession to add additional power districts as required.
-
Page 5: Troubleshooting
IMPORTANT! When connecting your new expansion Base Unit, you MUST isolate the relevant track sections from each other AND ensure that the polarity from one section to the next remains the same. Please Note: The sniffer port and programming track will only operate from the main Base Unit and the Amp reading on the handset is fixed to the main unit but additional units’ amp consumption can be seen in the “About” section. Warning: Do not attempt to common return between Base Units ∞ TROUBLESHOOTING There is a regularly updated FAQs page on our website which can be found at: www.gaugemaster.info/InfinityFAQ Your dealer will also be a font of knowledge and we are working hard to build their knowledge as the system establishes itself so they will also be able to help. And to be fair, none of us need much of an excuse to visit our local model railway shop, do we? Of course, full technical support also exists here at Gaugemaster and we will always do our very best to help you. BY EMAIL - infinitysupport@gaugemaster.co.uk BY PHONE (English Language) - +44 (0) 1903 884 321 IN PERSON - Gaugemaster, Gaugemaster House, Ford Road, Arundel, West Sussex, BN18 0BN Should you encounter an issue you would like help with, please do get in touch. You’ll be asked for details about the problem and also to advise us which version of the Infinity software you are running. To obtain... -
Page 6: Warranty
∞ WARRANTY Your Standard Warranty This warranty applies to the following units: GMI-A01 Infinity Analogue SOLO Model Railway Control Package GMI-A02 Infinity Analogue DUO Model Railway Control Package GMI-A11 Infinity Analogue ACOLYTE Single Expansion Unit GMI-A12 Infinity Analogue ACOLYTE Dual Expansion Unit GMI-A21 Infinity Analogue REMOTE Model Railway Controller The Gaugemaster Infinity warranty (hereinafter referred to as “The Warranty”) on this product is valid for a period of 12 months from the date of purchase of brand-new stock from an official Gaugemaster supplier. This warranty is offered by Gaugemaster Controls Ltd. (hereinafter referred to as “Gaugemaster”). How to claim under The Warranty. Warranty claims are made directly with Gaugemaster, and this does not affect your statutory rights as a consumer. Please contact us on +44 (0) 1903 884321 if you are unsure on how to claim against the warranty. Items for inspection should be sent to the following address, with a note containing your address, contact details and a description of the problem you have been experiencing: Infinity Service Gaugemaster Controls Ltd, Gaugemaster House, Ford Road, Arundel, West Sussex, BN18 0BN United Kingdom. Items arriving to the consumer with missing parts, shipping damage, or damaged packaging are not covered and, understandably, can only be claimed against the supplier of the unit. Terms and Conditions of The Warranty. - Page 7 5. Items will be inspected prior to repairs being undertaken. If there are issues found to be outside of the warranty, customers will be advised and possible charges highlighted prior to the repair or replacement being undertaken, with the option to have the item returned at the customers expense without the work commencing. 6. The warranty period does not extend when repairs are made or replacement parts are issued unless it is deemed necessary by Gaugemaster to issue a completely new product in full, in which case a new warranty period is initiated. 7. Costs of postage. a. The cost of postage of any warranty repair sent to Gaugemaster or any of our approved dealers is the responsibility of the consumer and will not be refunded by Gaugemaster. b. Gaugemaster will cover postage costs of returning the item to the customer to a mainland UK address for all warranty repairs. Any postage costs for returns outside of this territory may be charged at cost. c. Any return found to be outside of the warranty will be returned with the postage charged at cost. d. Any import duties incurred by Gaugemaster when the unit is returned to us will not be covered by Gaugemaster and maybe applied or added to the cost of repair at our discretion. e. Any export duties incurred by Gaugemaster when the unit is returned to the consumer will not be covered by Gaugemaster and maybe invoiced following the repair. f. Gaugemaster recommend items are returned to us using methods that include appropriate insurance and any item lost in transit to us is not the responsibility of Gaugemaster and will not be replaced. g. Gaugemaster will post repairs back using the most suitable, cost-effective method for the location. 8. Gaugemaster are not responsible for any data loss within the units including but not limited to user settings arising from the updating or repairing of the system. 9. A repair service is available for any units found to be defective outside of the warranty, and these may be returned to Gaugemaster once approval has been sought. Any items in this case must first be approved by a member of the Gaugemaster team and will be chargeable. Extended Warranty If you register your Infinity system online your Infinity is protected for an additional TWO YEARS. This FREE extended warranty is subject to the conditions of the standard warranty, but gives you longer protection on any of the items registered, just make sure you register your unit within 30 DAYS from the point of purchase and retain your proof of purchase for reference. To register your new Gaugemaster Infinity Unit WITHIN 30 DAYS of purchase, visit: www.gaugemaster.info/InfinityWarranty Instruction Version: 2.00 Published: October 2024...
- Page 8 This product is not a toy and contains small parts which may harm or choke a child. Not recommended for children under 14 years old unless supervised by an adult. Gaugemaster House, Ford Road, Arundel, West Sussex, BN18 0BN, United Kingdom +44 (0) 1903 884321 The Bluetooth®...
