Quick Start Guide
Three Axis Gaussmeter Model: GM09-3
A three-axis gaussmeter featuring touch-screen interface and rechargeable Li-ion battery compatible with the extensive
range of Hirst Hall sensor probes. Built-in "App" modes ensure standard tests and measurements can be carried out with
ease and minimal effort. Data-logging features allow the retrieval of data using a simple USB interface, no additional
software is needed as the GM09-3 appears as a USB mass storage device.

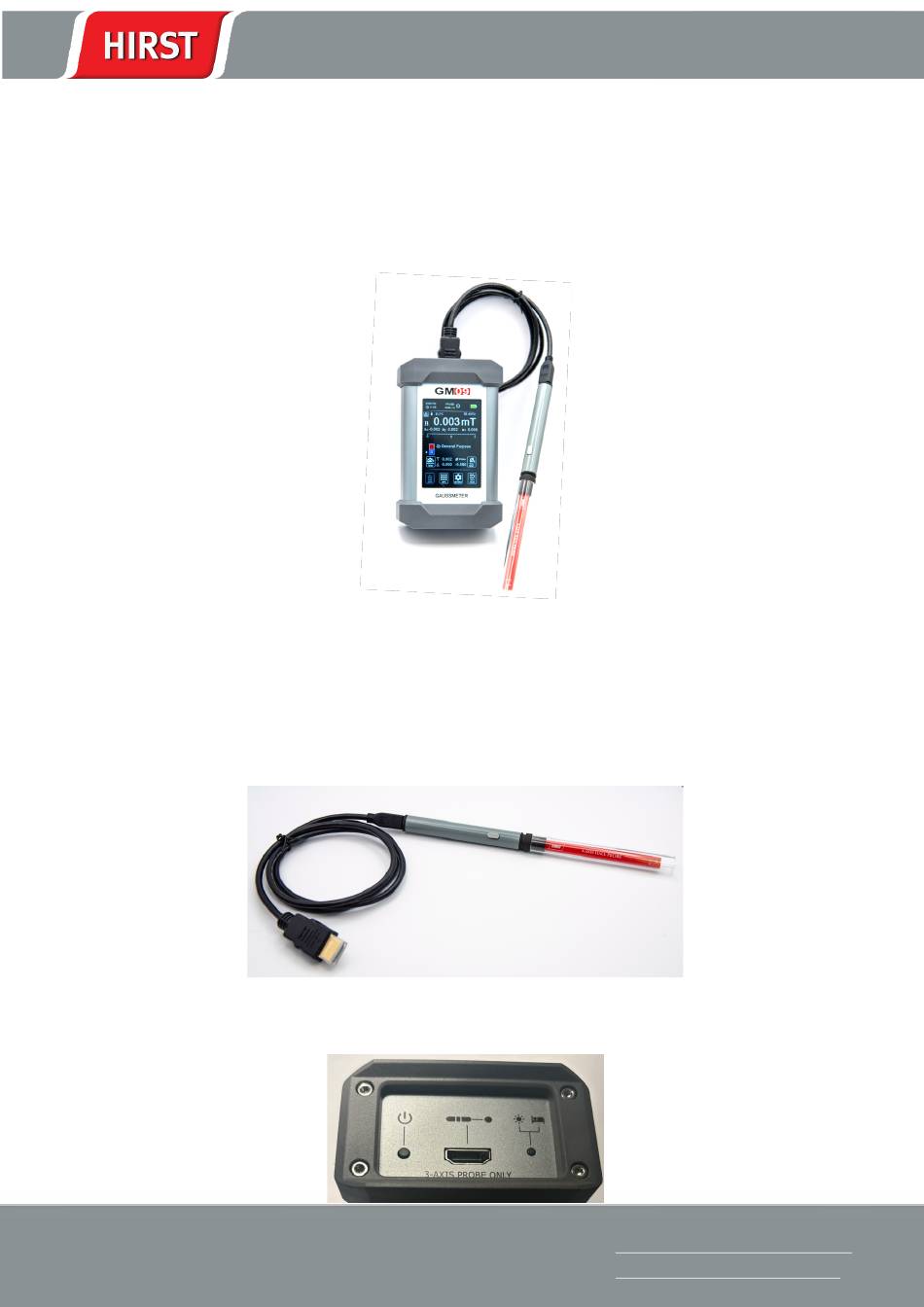

How to use the GM09-3
The GM09 Handheld Gaussmeter and 3 axis probe is used to measure Magnetic Flux Density or Magnetic Field Strength.
There are two key parts to the GM09-3:
1.
The Probe that senses the Magnetic Field and produces an electrical signal which uses a 3 axis Hall sensor element.
There is a data capture / hold button on the probe as shown below.
2. The GM09 Instrument itself, that then processes these electrical signals to display measurements that the user can read
off the display or capture.
Hirst Magnetic Instruments Ltd,
Tesla House, Tregoniggie Industrial Estate,
Falmouth, Cornwall, TR11 4SN

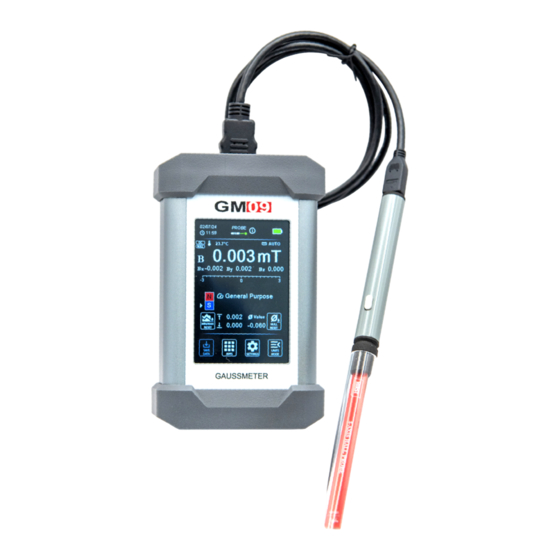

GM09-3, three axis gaussmeter with touch screen display
T: +44(0)1326 372734
sales@hirst-magnetics.com
www.hirst-magnetics.com
Advertisement
Related Manuals for HIRST GM09-3
Summary of Contents for HIRST GM09-3
- Page 1 A three-axis gaussmeter featuring touch-screen interface and rechargeable Li-ion battery compatible with the extensive range of Hirst Hall sensor probes. Built-in “App” modes ensure standard tests and measurements can be carried out with ease and minimal effort. Data-logging features allow the retrieval of data using a simple USB interface, no additional software is needed as the GM09-3 appears as a USB mass storage device.
- Page 2 Start up sequence Ensure the probe is connected to the GM09-3 before powering on the gaussmeter. To power on the GM09 - press and hold the Power On/Off button. Once the start-up sequence is completed, the GM09 will display the main measurement screen, on first start up this will be the General purpose gaussmeter mode.
- Page 3 Applications To make using the GM09 as easy as possible it contains a number of Applications modes to set the GM09 up for specific measurement tasks Application modes include : Magnet testing - pass/ fail within user defined bands with polarity. Magnetic Field testing –...
- Page 4 Accessories and options The GM09-3 gaussmeter uses only the 3 axis standard Hirst gaussmeter probe and is not compatible with the range of Hirst single axis probes. Warranty and Calibration Supplied calibrated with 1 year warranty. A calibration required is every year to maintain the highest levels of performance The GM09-3 is calibrated to standards traceable to the National Physical Laboratories (London UK).
