Quick Start Guide

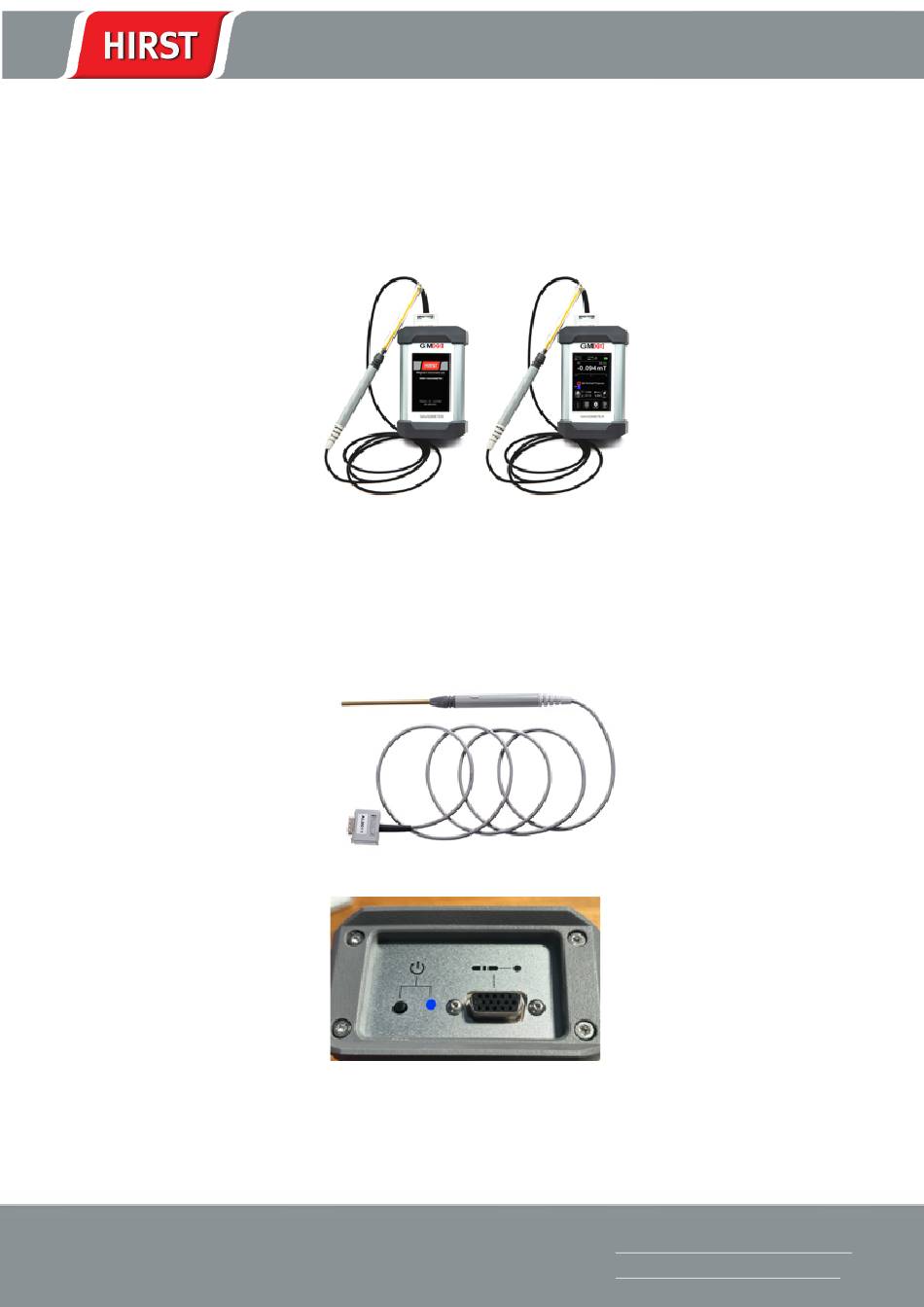

Single Axis Gaussmeter Model: GM09-1
A single-axis gaussmeter featuring touch-screen interface and rechargeable Li-ion battery compatible with the extensive
range of Hirst Hall sensor probes. Built-in "App" modes ensure standard tests and measurements can be carried out with
ease and minimal effort. Data-logging features allow the retrieval of data using a simple USB interface, no additional
software is needed as the GM09 appears as a USB mass storage device.
How to use the GM09
The GM09 Handheld Gaussmeter and Probe is used to measure Magnetic Flux Density or Magnetic Field Strength.
There are two key parts to the GM09:
1.
The Probe that senses the Magnetic Field and produces an electrical signal which uses a Hall effect element.
2. The GM09 Instrument itself, that then processes these electrical signals to display measurements that the user can read
off the display or capture.
Above is the top of the GM09 showing the Power On/Off button, an LED indicator (solid Blue when the unit is on and not
illuminated when the GM09 is turned off) and the Hall Probe Connector. Plug the probe into the connector above and
power on the GM09 by pressing the button for >1 second. The Blue power on indicator LED slowly flashes when the unit is
in Sleep mode (to save power), simply touch the screen to turn the GM09 back on.
Hirst Magnetic Instruments Ltd,
Tesla House, Tregoniggie Industrial Estate,
Falmouth, Cornwall, TR11 4SN
GM09, Single axis gaussmeter with touch screen display
T: +44(0)1326 372734
sales@hirst-magnetics.com
www.hirst-magnetics.com
Advertisement
Table of Contents
Related Manuals for HIRST GM09-1
Summary of Contents for HIRST GM09-1
- Page 1 A single-axis gaussmeter featuring touch-screen interface and rechargeable Li-ion battery compatible with the extensive range of Hirst Hall sensor probes. Built-in “App” modes ensure standard tests and measurements can be carried out with ease and minimal effort. Data-logging features allow the retrieval of data using a simple USB interface, no additional software is needed as the GM09 appears as a USB mass storage device.
- Page 2 GM09 using a smart phone or tablet. Below are some of the basic screens of the GM09 General measurement screen Measurement units, range and mode Hirst Magnetic Instruments Ltd, T: +44(0)1326 372734 Tesla House, Tregoniggie Industrial Estate, sales@hirst-magnetics.com Falmouth, Cornwall, TR11 4SN www.hirst-magnetics.com...
- Page 3 Once the settings are saved the GM09 is set up for the Application in this case Magnet Testing, to save data press the probe button or the Save Data button on the GM09 display. Hirst Magnetic Instruments Ltd, T: +44(0)1326 372734 Tesla House, Tregoniggie Industrial Estate, sales@hirst-magnetics.com...
- Page 4 The GM09 is equipped with rechargeable Li-ion battery with a 3500mAh USB-C chargeable (computer or mains charger provided) battery life >4-hour use with sleep mode and auto power-off. The GM09-1 is supplied with a USB-A to USB-C cable to allow connection to computers for either data transfer or charging. The GM09-1 is not supplied with a mains charger but many third-party chargers can be used.
- Page 5 Hirst manufacture precision hand-held gaussmeters, large industrial magnetiser machines, as well as production line equipment for characterising high performance magnetic materials. Hirst Magnetic Instruments ltd reserves the right to make changes to any specifications or performance implied in this product brochure without notice – please refer to www.hirst-magnetics.com...
