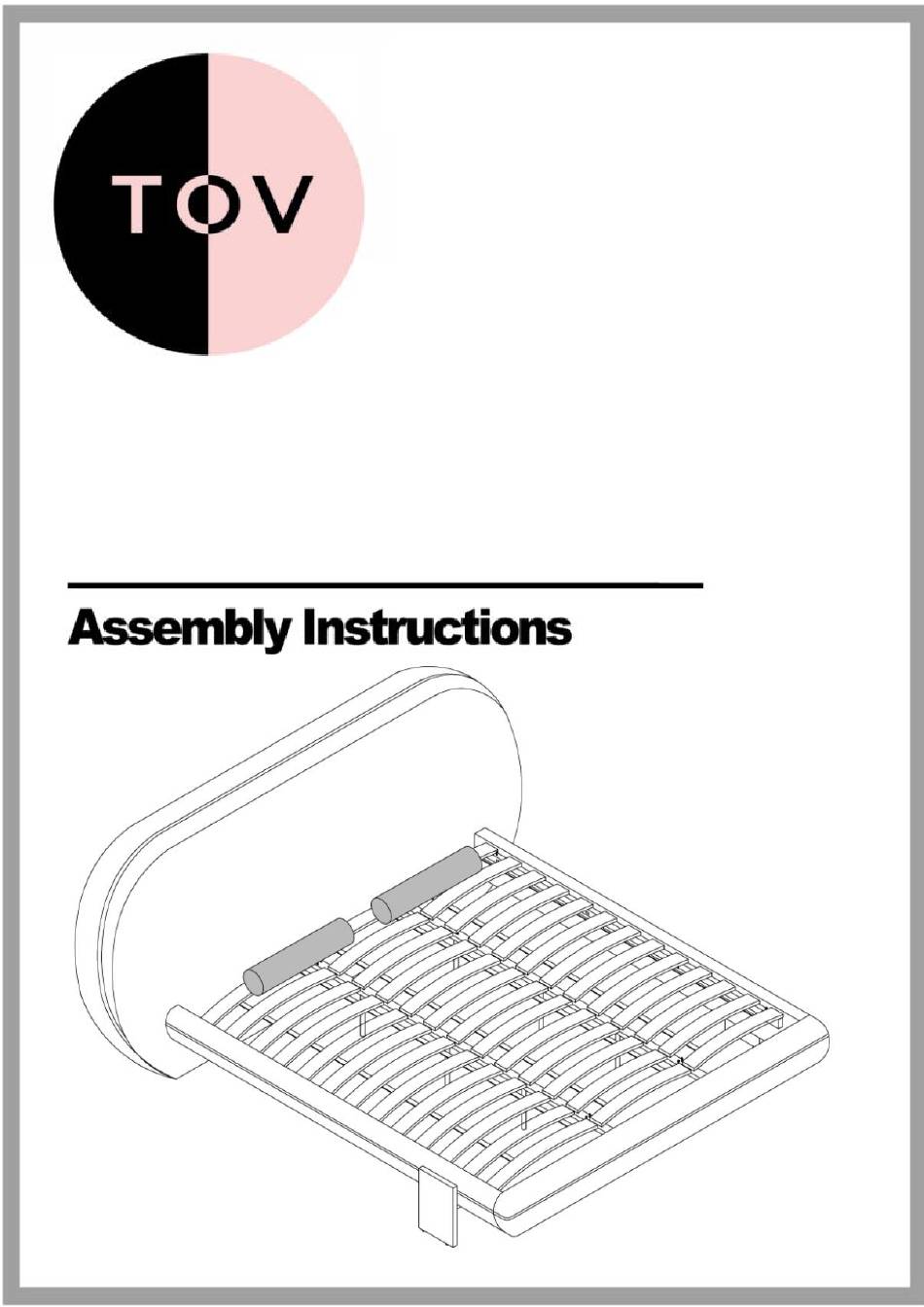

- Page 1 OPHELIA KING BED OPHELIA...
-
Page 2: Parts List
PARTS LIST Hardware included in side rails carton to attach bed feet and center support system. LABEL PICTURE DESCRIPTION HEADBOARD FOOTBOARD SIDE RAILS RIGHT SIDE RAILS LEFT WASHER Φ8mm BOLT Φ8*30mm BED LEG BOLT Φ6*40mm ALLEN KEY... - Page 3 CENTER SUPPORT LEG H=23.8CM WASHER Φ6mm BOLT Φ6*25mm BOLT Φ8*45mm SLAT CENTER SUPPORT RAIL PILLOW...
-
Page 4: Assembly Steps
ASSEMBLY STEPS STEP 1 > Retrieve Bed legs from parts’ carton packed in side rails carton. Attach Bed legs (G) to the side rails (C)&(D) using Bolt (M) and Washer (E), Tighten with Allen key (I). STEP 2 > Attach side rails to headboard using Bolt (F) and Washer (E).First twist the screw in,then slot the brackets over the bolts,Tighten the bolts with Allen key (I) . - Page 5 STEP 3 > Attach steel center support legs (J) to the center support rail (O) using Allen key (I), Bolt (H) and Washer (K). STEP 4 > Attach center support rail (O) to the Headboard and footboard using Allen key (I), Bolt (F) and Washer (E).Please line up the holes in the center support rail (O) and refit the bolts &...
- Page 6 STEP 5 > Attach Bolt (L) to the holes in the end of support rails using Allen key (I).(*Please note that the bolt only needs to be twisted half in and leave half out .) STEP 6 > Move/place bed into final position in bedroom. Attach wooden slat support system to full length steel support cleats.
