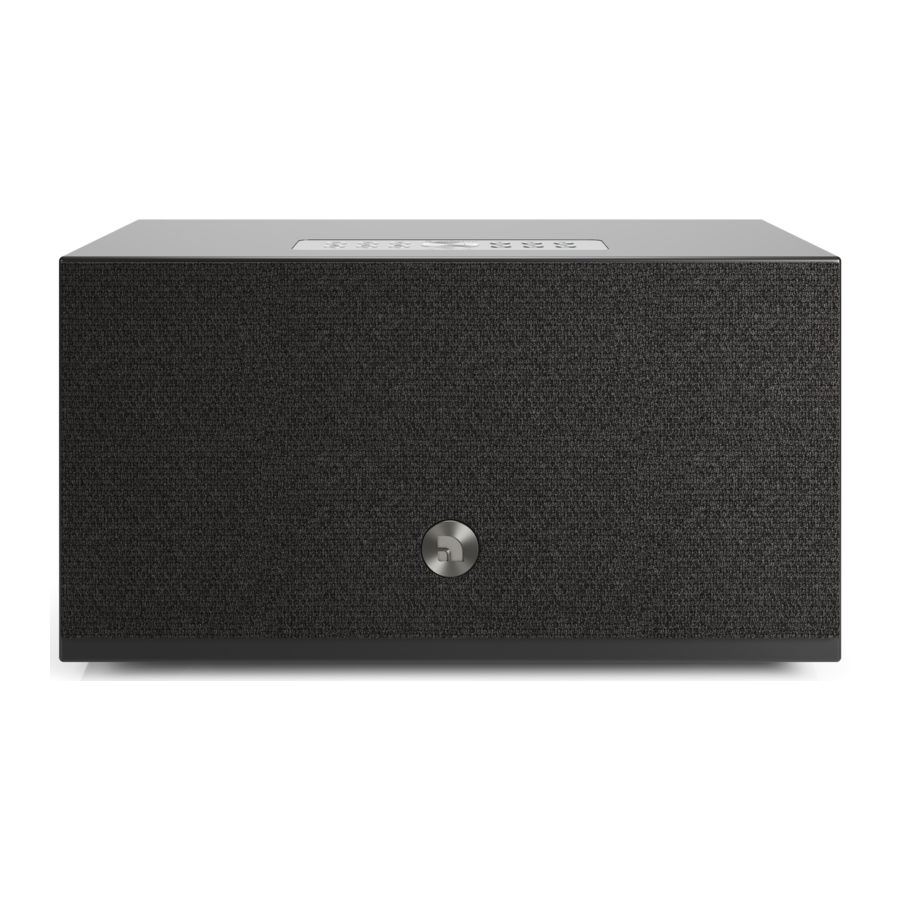

Audio Pro C10 MkII Manual

WELCOME TO WIRELESS HIFI

Audio Pro wireless HiFi products lets you enjoy your favourite audio in a multiroom setup everywhere around your home.
Our new generation of products uses
Audio Pro wireless technology, Google Cast, AirPlay 2, Spotify Connect and Tidal Connect.
By utilizing your WiFi network & smartphone apps you can explore and play audio from streaming services and your own music library.
If you don't have a WiFi network, you can use Bluetooth or connect your audio equipment via cable.
The legendary Audio Pro sound quality is included.

CONTROLS

KEY REQUIREMENTS

NETWORK

• Your network must have a high-speed internet connection, as the Audio Pro system is designed to utilise free, online software updates.
• Audio Pro speakers communicate via a 2.4 GHz / 5 GHz home network with support for 802.11 b/g/n/ac wireless technology.

ROUTER

• High-speed DSL/cable modem, or fibre-tothe-home broadband connection for proper playback of internet-based music services.
• Different routers provide different levels of performance. Please use a good wireless router to achieve the best possible performance.

CONNECTING TO THE NETWORK

YOU NEED THIS
Wireless router with internet connection.

iOS or Android device connected to your network.

Character set UTF-8 for password is supported. (Not åäö or special characters).

CONNECT TO POWER

MAKING A PRESET

1. ON THE SPEAKER

2. IN THE APP

RESTREAMING

Connected devices sound can be played to more speakers wirelessly. Choose master speaker in group to play.

Choose the connected input source.

SELECT SOURCE IN APP / ON SPEAKER

PLAYING FROM SPOTIFY

Use your phone, tablet or computer as a remote control for Spotify. Go to spotify.com/connect to learn how.

AIRPLAY / CHROMECAST

Tap AirPlay, and choose a speaker.

BLUETOOTH PAIR

PLAYING FROM CONNECTED DEVICES

1. Connect using a cable.

2.


SPECIFICATIONS

Type: Powered stereo speaker with bass reflex
Amplifier: Digital Class D, 2x20W + 40W
Tweeter: 2 x ¾" textile dome tweeter
Woofer: 1 x 5.25"
Frequency range: 45–22.000Hz
Crossover frequency: 2.500Hz
Dimensions HxWxD: 166 x 320 x 180 mm
Inputs: WiFi, Bluetooth 4.2, RCA
Outputs: Sub output
Wireless network compatibility: 802.11 b/g/n/ac, 2.4 GHz/5 GHz Supported audio formats: MP3, WMA, AAC, FLAC, Apple Lossless
Power consumption STBY/ON: 1.7 W/6.2 W (standby activated after >20 minutes idle)

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.

To reduce the risk of electric shock, do not remove covers or panels. No user-serviceable parts inside. Refer servicing to qualified service personnel.

This equipment is capable of delivering sound pressure levels in excess of 85 dB, which may cause permanent hearing damage.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this product near water.
6. Clean only with dry cloth.
7. Operating temperature (˚C) 5–40
   Humidity (%) no condensation 30–90
8. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
9. Minimum distances around the product for sufficient ventilation, 10 cm.
10. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.
11. Do not install near any heat sources such as radiators, heat registers, stoves, or other product (including amplifiers) that produce heat.
12. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the product.
13. Only use attachments /accessories specified by the manufacturer.
14. Unplug this product during lightning storms or when unused for long periods of time.
15. Refer all servicing to qualified service personnel. Servicing is required when the product has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the product, the product has been exposed to rain or moisture, does not operate normally, or has been dropped.
16. Damage Requiring Service Unplug the product from the wall outlet and refer servicing to qualified service personnel under thee following conditions:
    1. When the power-supply cord or plug is damaged,
    2. If liquid has been spilled, or objects have fallen into the product,
    3. If the product has been exposed to rain or water,
    4. If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation,
    5. If the product has been dropped or damaged in any way, and
    6. When the product exhibits a distinct change in performance this indicates a need for service.
17. Object and Liquid Entry Never push objects of any kind into the product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The product shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the product. No naked flame sources such as lighted candles etc., should never be placed on the product.
18. Make sure that there is adequate ventilation if you install the product in confined spaces, such as bookshelves or racks. Leave a distance of 20 cm above and on both sides of the product and 10 cm behind it. The back end of a shelf or board closest to the top of the product should be pushed forward to give a gap of about 10 cm behind. In this way an exuding channel is formed where heated air can flow up.
19. The power supply and power cord for this product is intended for indoor use only.
20. Use only the supplied power cord/adapter.

(AC symbol, Alternating current)

(Class II product - Double Insulated) The mains plug is used as the disconnect device, the disconnect device shall remain readily operable. The socket-outlet shall be installed near the equipment and shall be easily accessible.
