MG M5XWTU Instruction Manual

INSTRUCTION MANUAL
MULTI POWER TRANSDUCER
(self-powered, PC programmable, support harmonic distortion)
BEFORE USE ....
Thank you for choosing us. Before use, please check con-
tents of the package you received as outlined below.
If you have any problems or questions with the product,
please contact our sales office or representatives.
■ PACKAGE INCLUDES:
Signal conditioner ...............................................................(1)
■ MODEL NO.
Confirm Model No. marking on the product to be exactly
what you ordered.
■ INSTRUCTION MANUAL
This manual describes necessary points of caution when
you use this product, including installation, connection and
basic maintenance procedures.
The M5XWTU is programmable using the PC Configurator
Software. For detailed information on the PC configuration,
refer to the PMCFG users manual. The PMCFG PC Con-
figurator Software is downloadable at our web site.
Refer to EM-2768-B for the use of Modbus.
POINTS OF CAUTION
■ AUXILIARY POWER
• M5XWTU does not have input terminals for auxiliary
power. The power for operation is generated from the
voltage input terminals P1 – P2, with consuming 3 VA
between these terminals.
■ GENERAL PRECAUTIONS
• Before you remove the unit or mount it, turn off the input
signal for safety.
■ ENVIRONMENT
• Indoor use.
• When heavy dust or metal particles are present in the
air, install the unit inside proper housing with sufficient
ventilation.
• Do not install the unit where it is subjected to continuous
vibration. Do not subject the unit to physical impact.
• Environmental temperature must be within -20 to +65°C
(-4 to +149°F) with relative humidity within 30 to 90%
RH in order to ensure adequate life span and operation.
■ WIRING
• Do not install cables close to noise sources (relay drive
cable, high frequency line, etc.).
• Do not bind these cables together with those in which
noises are present. Do not install them in the same duct.
• Install lightning surge protectors for those wires connect-
ed to remote locations.
MG CO., LTD. www.mgco.jp
5-2-55 Minamitsumori, Nishinari-ku, Osaka 557-0063 JAPAN
MODEL
■ AND ....
• The unit is designed to function as soon as power is sup-
plied, however, a warm up for 10 minutes is required for
satisfying complete performance described in the data
sheet.

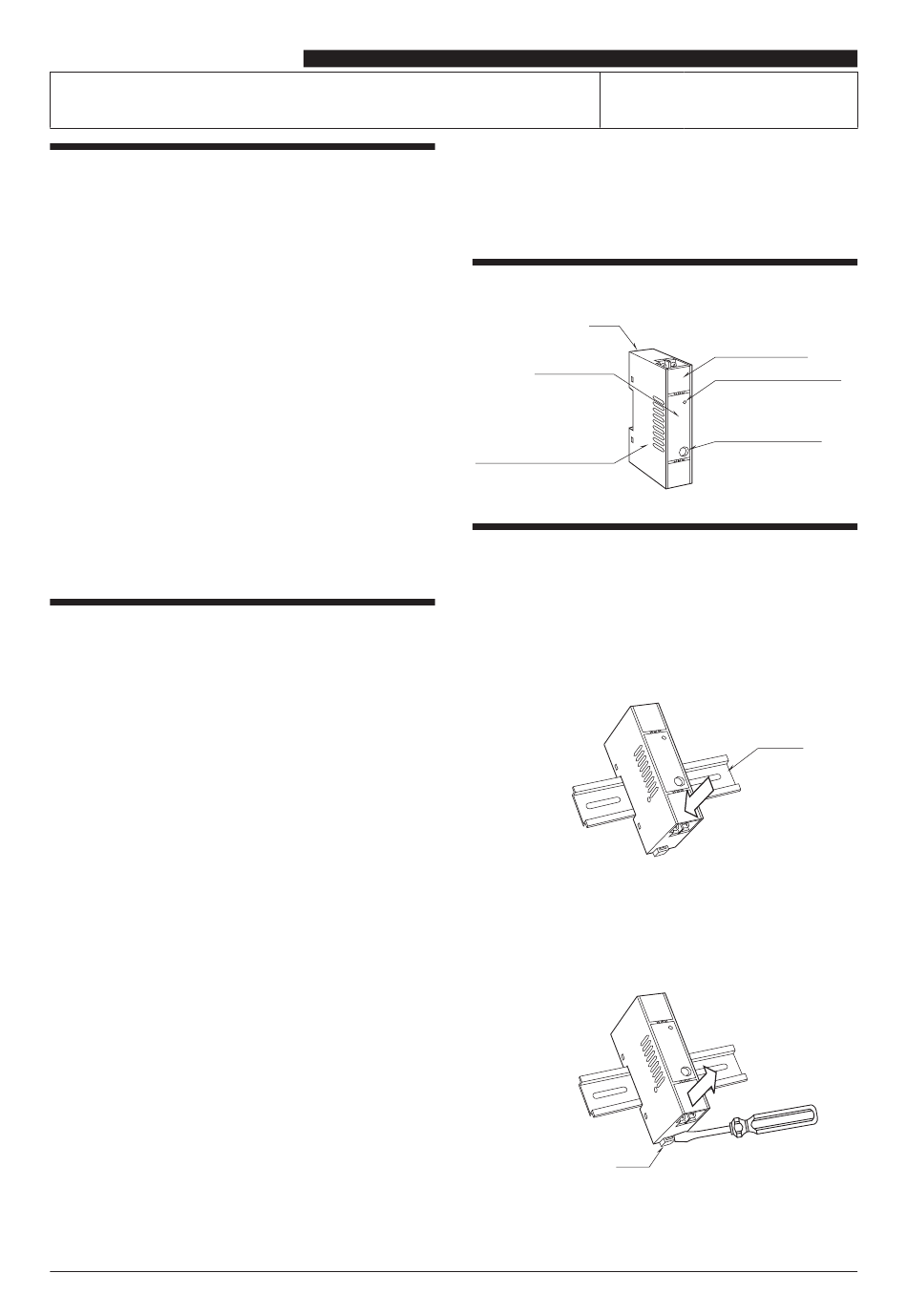

COMPONENT IDENTIFICATION
Body
Specification
DIP SW
Refer to external views
INSTALLATION
Set the unit so that its DIN rail adapter is at the bottom.
■ MOUNTING THE UNIT ON A DIN RAIL
A) Hang the upper hook at the rear side of unit on the DIN
rail.
B) Push in the lower in keeping pressing the unit to the DIN
rail.
A
■ REMOVING THE UNIT
A) Pull down the DIN rail adaptor using a minus screwdriv-
er.
B) Pull out the lower part of the unit.
C) Remove the upper part from the DIN rail.
C
Slider
M5XWTU
Terminal Cover
Power Indicator LED
Configurator Jack
DIN rail
B
B
A
EM-2768-A Rev.6 P. 1 / 4
