ASSEMBLY INSTRUCTIONS

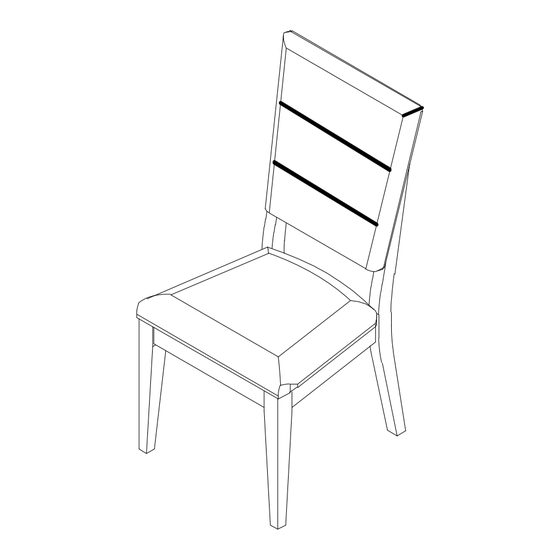

ITEM #: D285-22 UPHOLSTERED SIDE CHAIR
Thank you for purchasing this product. Be sure to check all packing material carefully for small
parts that may have come loose inside the carton during shipment.
Before You Assemble: Please read all instructions carefully before beginning assembly.
It is recommended that 2 people work together during assembly to prevent personal injury and to
ensure that heavy or cumbersome parts are not damaged during the process.
CAUTION: For your safety, this product requires two people to lift.
TOOLS REQUIRED (NOT PROVIDED):
PHILLIPS SCREWDRIVER
PARTS LIST:
NO DESCRIPTION
BACK FRAME
A
B
SEAT FRAME
C
LEGS
HARDWARE PACKAGE: D285-22-HDWR
NO DESCRIPTION
Allen key
1
2 Wood Dowel
Short Bolt
3
4
Spring Washer
5
Flat Washer
Long Bolt
6
Medium Bolt
7
8
Spring Washer
9
Flat Washer
Page 1 of 1
SKETCH
SKETCH SIZE
4*59*25mm
Ø10*30mm
Ø1/4*40mm
Ø1/4
Ø1/4*19mm
Ø5/16*75mm
Ø5/16*50mm
Ø5/16
Ø5/16*19mm
STEP 1 Place the back frame (A) face up on a
soft surface such as a carpet to protect against
scratches. Attach the seat frame (B) to back
frame by using allen key (1), Wood dowel (2)
short and long bolts (3&6), spring washer (4&8)
and flat washer (5&9).
A
QTY
1PC
1PC
3
2PCS 4
5
QTY
1 pcs
2 pcs
1 pcs
STEP 2 Attach the legs (C) to the seat frame(B) using
allen key (1), medium bolt (7), spring washer (8) and
1 pcs
flat washer (9).
1 pcs
4 pcs
4 pcs
8 pcs
8 pcs
9
8
B
1
6
8
9
2
1
7
MADE IN VIETNAM
C
