Emerald Home Furnishings GHST845-DB5-3A Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing materials carefully for
small parts that may have come loose inside the carton during shipment.
Before You Start Assembly : Please read all instructions carefully before beginning the assembly
process. It is recommended that 2 people work together during assembly to prevent personal injury
and to ensure that heavy or cumbersome parts are not damaged during the process.
CAUTION : For your safety, this product requires two people to lift.
PARTS LIST
No. DESCRIPTION
A Back Panel
B Left Arm
Right Arm
C
D Back Rail
E Front Rail
Slat Roll (6 pcs)
F
Slat Roll (7 pcs)
G
Wood Legs
H
STEP 1
ASSEMBLY INSTRUCTIONS
GHST845-DB5-3A / GHST847-DB5-3A

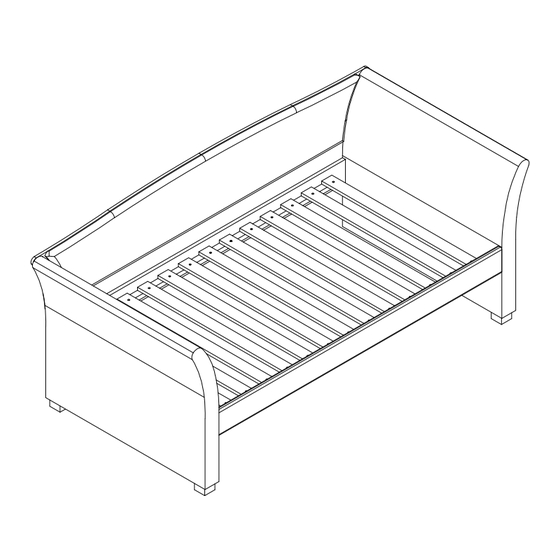

DAYBED BACK PANEL, ARMS, RAILS & SLATS
6
H
MADE IN VIETNAM
HARDWARE LIST
QTY
No.
1PC 1 5/16" x 1 3/4 " Allen Head Bolt
5/16" Spring Washer
1PC 2
1PC 3 5/16" Flat Washer
1PC
4 4mm Allen Wrench
1PC 5 M4 x 1 1/4'' Screw
1PC 6 Plastic Washer
1PC
4PCS
B & C
6
DESCRIPTION
B & C
H
PAGE 1 OF 2
QTY
4PCS
4PCS
4PCS
1PC
26PCS
4PCS
