Hitachi airHome MultiPro RAM-G85N5HBE Installation Manual

INSTALLATION
● Flare nut must use a torque wrench without fail. Tighten with the specifi ed tightening
MANUAL
torque. If the fl are nut is tightened too much, after a long period of time, the fl are nut
breaks, Gas leakage, stagnation, touching fi re, rarely cause ignition.
● Sharp bending of the pipe use the polyethylene rod, bend not crushed the pipe. Gas
leakage from the crushed part, stagnation, touching fi re, rarely cause ignition.
Home
● Please request your sales agent or qualifi ed technician to install your unit. Water
leakage, short circuit or fi re may occur if you do the installation work yourself.
MultiPro
● Please observe the instructions stated in the installation manual during the process of
installation. Improper installation may cause water leakage, electric shock and fi re.
● A brazed, welded, or mechanical connection shall be made before opening the valves to
permit refrigerant to fl ow between the refrigerating system parts. A vacuum valve shall
SPLIT UNIT AIR CONDITIONER be provided to evacuate the interconnecting pipe and/or any uncharged refrigerating
system part.
OUTDOOR UNIT
● Mechanical connectors used indoors shall comply with ISO 14903. When mechanical
RAM-G85N5HBE
connectors are reused indoors, sealing parts shall be renewed. When fl ared joints are
reused indoors, the fl are part shall be re-fabricated.
EN INSTRUCTION MANUAL ● Refrigerant tubing shall be protected or enclosed to avoid damage.
● Make sure that the units are mounted at locations which are able to provide full support
to the weight of the units. If not, the units may collapse and impose danger.
● Observe the rules and regulations of the electrical installation and the methods described
FOR SERVICE
in the installation manual when dealing with the electrical work. Use power cables
PERSONNEL ONLY
approved by the authorities of your country.
● Be sure to use the specifi ed wire for connecting the indoor and outdoor units. Please
ensure that the connections are tight after the conductors of the wire are inserted into
the terminals. Improper insertion and loose contact may cause over-heating and fi re.
● Please use the specifi ed components for installation work. Otherwise, the units may
collapse or water leakage, electric shock and fi re may occur.
●
Carefully read through the procedures of
● Be sure to use the specifi ed piping set for R32. Otherwise, this may result in broken
proper installation before starting installation
copper pipes or faults.
work.
● The sales agent should inform customers
● When installing or removing an air conditioner, only specifi ed refrigerant (R32) shall be
regarding the correct operation of installation.
allowed, do not allow air or moisture to remain in the refrigeration cycle. Otherwise,
pressure in the refrigeration cycle may become abnormally high so that a rupture may
be caused.
Tools Needed For Installation Work
● Be sure to ventilate fully if a refrigerant gas leak while at work. If the refrigerant gas
( mark is tool exclusive use for R32)
comes into contact with fi re, a poisonous gas may occur. Be aware that refrigerants
● + – Screwdriver ● Measuring Tape
may not contain an odour.
● Knife ● Saw ● Pipe Cutter
● Hexagonal Wrench Key ( 4mm)
● After completion of installation work, check to make sure that there is no refrigeration
● Power Drill (ø 65mm ~ ø 80mm)
gas leakage. If the refrigerant gas leaks into the room, coming into contact with fi re
Vacuum Pump ● Pliers or Wrench
in the fan-driven heater, space heater, etc., a poisonous gas may occur.
● Torque Wrench Vacuum Pump Adaptor
Unauthorized modifi cations to the air conditioner may be dangerous. If a breakdown
●
● Flare Tool ● Gas Leakage Detector
occurs please call a qualifi ed air conditioner technician or electrician. Improper repairs
Manifold Valve Charge Hose
may result in water leakage, electric shock and fi re, etc.
● Reamer ● File
SAFETY PRECAUTION
● Read the safety precautions carefully before operating the unit.
● The contents of this section are vital to ensure safety. Please pay special attention to the following sign.
! WARNING ........ Incorrect methods of installation may cause death or serious injury.
! CAUTION ......... Improper installation may result in serious consequence.
Be sure that the unit operates in proper condition after installation. Explain to customer the proper way of operating
the unit as described in the user's guide.
< IA2657: A >
CAUTION
!
A circuit breaker or fuse must be installed. Without a circuit breaker or fuse the danger of electric shock exists.
●
The external switch shall be incorporated to completely disconnect from power supply. It should disconnect all
poles, and a contact separation of at least 3mm must be present.
Do not install the unit near a location where there is fl ammable gas. The outdoor unit may catch
●
fi re if fl ammable gas leaks around it.
Do not install the indoor unit in a machine shop or kitchen where vapor from oil or its mist fl ows to the indoor
●
unit. The oil will deposit on the heat exchanger, thereby reducing the indoor unit performance and may deform
and in the worst case, break the plastic parts of the indoor unit.
Please ensure smooth fl ow of water when installing the drain hose.
●
Piping shall be suitable supported with a maximum spacing of 1m between the supports.
●
!
Do not use means to accelerate the defrosting process or to clean, other than those recommended by the
●
manufacturer. Any unfi t method or using incompatible material may cause product damage, burst and serious
injury.
The appliance/pipe-work shall be stored in a well ventilated room with indoor fl oor area larger than A
●
to Table 1] and without any continuously operating ignition source. Keep away from open fl ames, any operating
gas appliances or any operating electric heater. Else, it may explode and cause injury or death.
The appliance/pipe-work shall be installed, and/or operated in a room with fl oor area larger than A
●
Table 1] and keep away from ignition sources, such as heat/spark/open fl ame or hazardous areas such as gas
appliances, gas cooking, reticulated gas supply systems or electric cooking appliances, etc.
Do not pierce or burn as the appliance/pipe-work is pressurized. Do not expose the appliance/pipe-work to heat,
●
fl ame, sparks, or other sources of ignition. Else, it may explode and cause injury or death.
1. Proper place for installation
1.1 Outdoor unit
(1) Keep the space around the unit for maintenance and avoiding the effects of hindrance for normal ventilation of the
unit.
(2) The northern or eastern side of the building is better to install. At the installation on the southern or western side
unavoidably, some blind should be set up for the unit. (In this case, the blind must not obstruct the ventilation of
the unit.)
(3) You'd better not put the unit at a place where is full of dirt and at a place where is wet in the rain.
(4) Place as near as possible to the indoor unit.
(5) Install the unit in a stable place to minimize vibration or noise.
(6) After arranging the cords and pipes, secure them in place.
This appliance must be earthed.
●
WARNING
!
Power is supplied through outdoor unit, do not connect power source to indoor unit.
●
2. In the electrical installation a separator with a contact gap of more than 3mm has to be installed. During cleaning or
service the set has to be switched off with this separator.
< >
IA2657: A
WARNING
!
WARNING
min
The Choice of Mounting Site
WARNING
!
● The Outdoor unit must be mounted at a location which can support
heavy weight. Otherwise, noise and vibration will increase.
CAUTION
!
Do not expose the unit under direct sunshine or rain. Besides,
●
ventilation must be good and clear of obstruction.
● The air blown out of the unit should not point directly to animals
or plants.
The clearances of the unit from top, left, right and front are
●
specifi ed in fi gure below. At least 3 of the above sides must be
open air.
Be sure that the hot air blown out of the unit and noise do not
●
disturb the neighbourhood.
Do not install at a location where there is fl ammable gas, steam,
●
oil and smoke.
The location must be convenient for water drainage.
●
Place the Outdoor unit and its connecting cord at least 1m away
●
from the antenna or signal line of television, radio or telephone.
This is to avoid noise interference.
Do not install outdoor unit facing strong wind direction. It may
●
damage the fan motor.
● Do not install the outdoor unit in a place where small animals
may build their nests. If small animal goes inside the unit and
touches the electrical parts, failure of the unit, smoke or fi re may
be caused. Request your customer to keep the surrounding of
the unit is clean.
Table 1: Minimum Floor area of the room A
Piping Length
Outdoor
(m)
Model
Standard 35
RAM-G85N5HBE
Maximum 75
Gas leak sensor be setting as optional parts (SPX-RAFGLS)
WARNING
This symbol shows that this equipment
uses a fl ammable refrigerant.
If the refrigerant is leaked, together
with an external ignition source, there
is a possibility of ignition.
CAUTION
This symbol shows that the Operation
Instructions should be read carefully.
CAUTION
This symbol shows that a service
personnel should be handling this
equipment with reference to the
Installation Manual.
CAUTION
This symbol shows that there is
information included in the Operation
Manual and/or Installation Manual
Height difference
Height difference between indoor units should not be
more than 5m.
[Outdoor unit installation]
Mount the Outdoor unit on stable ground to prevent vibration and
●
increase of noise level.
Decide the location for piping after sorting out the different types
●
of pipe available.
When removing side plate, pull the handle after releasing the hook
●
by pulling it downward.
CONDENSED WATER DISPOSAL OF OUTDOOR UNIT
There are holes on the base of Outdoor unit for condensed water to exhaust.
●
In order to fl ow condensed water to the drain, the unit is installed on a stand or a block so that the unit is 100mm above the ground as shown
●
fi gure. Join the drain pipe to one hole.
At fi rst insert one portion of the hook to the base (Portion A), then pull the drain pipe in the direction shown by the arrow while inserting the
●
hook into the base. After installation, check whether the drain pipe cling to the base fi rmly.
[refer
min
BASE
[refer to
When Using and Installing In Cold Areas
When the air conditioner is used in low temperature and in snowy conditions, water from the heat exchanger may freeze on the base surface
to cause poor drainage. When using the air conditioner in such areas, do not install the bushings. Keep a minimum of 250mm between the
drain hole and the ground. When using the drain pipe, consult your sales agent.
For more details, refer to the installation Manual for Cold Areas.
CAUTION
!
Make sure to connect to two or more indoor units.
●
One unit of 1.5kW, 1.8kW, 2.5kW, 3.5kW, 4.2kW, 5.0kW or 6.0kW
(4.2kW, 5.0kW, 6.0kW unit: Optional fl are adaptor for piping is necessary.)
One unit of 1.5kW, 1.8kW, 2.5kW, 3.5kW, 4.2kW, 5.0kW or 6.0kW
(4.2kW, 5.0kW, 6.0kW unit: Optional fl are adaptor for piping is necessary.)
One unit of 1.5kW, 1.8kW, 2.5kW, 3.5kW, 4.2kW, 5.0kW or 6.0kW
(4.2kW, 5.0kW, 6.0kW unit: Optional fl are adaptor for piping is necessary.)
One unit of 1.5kW, 1.8kW, 2.5kW, 3.5kW, 4.2kW, 5.0kW, 6.0kW or 7.0kW
(1.5kW-3.5kW, 7.0kW unit: Optional fl are adaptor for piping is necessary.)
One unit of 1.5kW, 1.8kW, 2.5kW, 3.5kW, 4.2kW, 5.0kW, 6.0kW or 7.0kW
(1.5kW-3.5kW, 7.0kW unit: Optional fl are adaptor for piping is necessary.)
To the outdoor unit, up to fi ve indoor units can be connected until the total value of each units's capacity reaches
●
15.5 kW.
The pipe connection ports of the outdoor unit and connectable indoor units are shown above.
●
(Please note the following matters and obtain permission from customer before installation).
Names of Outdoor Components
No. Item
Bush
10
Drain Pipe
11

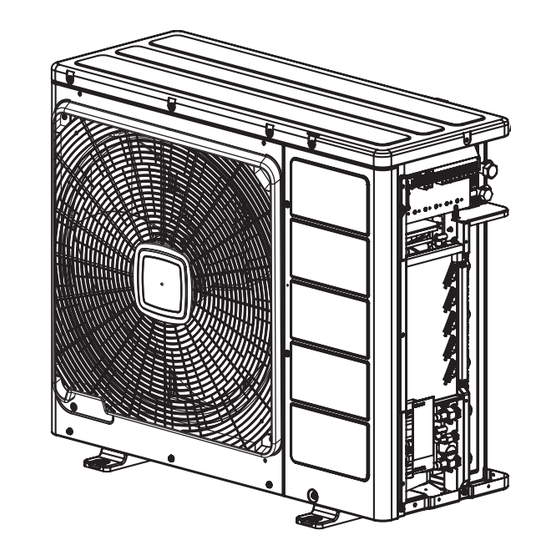

Figure showing the Installation of Outdoor Unit.
!
● This unit is chargeless up 35m pipe length.
Installation of pipe length less than minimum pipe length
●
requirement (3 meters) may generate an abnormal sound.
(m 2 )
min
Minimum Floor Area of the room A
Max refrigerant
charge amount
Wall-mounted Ceiling cassette-mounted units
(kg)
units Duct-mounted units
2.40 5.45 3.65 3.65
3.00 8.51 5.7 5.7
WARNING
!
BURST HAZARD
Do not allow air, etc. to
get into refrigerant cycle
(piping)
RISK OF EXPLOSION
Compressor must be
stopped before removing
refrigerant pipes.
All service valve must be
fully closed after pumping
down operation.
Piping length
(L1 + L2 + L3 + L4 + L5) = Maximum 75m
Minimum piping length for each indoor unit is 3m.
Maximum piping length for one indoor unit is 25m.
In case the pipe length is more than 35m, add refrigerant R32 at
15 gram per every meter exceeds
In case of only 2 indoor units connected, minimum pipe length is
13m for each unit.
DRAIN PIPE
BUSH
DRAIN PIPE
CAUTION
!
Do not use this valve. For factory use only.
Dimension of Mounting Stand
Qty
of the Outdoor unit
(unit : mm)
3
1
CAUTION
(m 2 )
min
Floor-standing units
With Without
SPX-RAFGLS
SPX-RAFGLS
3.51 49.02
4.39 76.60
Please face this side (suction side)
of the unit to the wall.
Please remove side cover
when connecting the piping
and connecting cord.
Pull downward
Flare adaptor for piping
The fl are adaptor for piping is required
depending on combination of indoor units.
ø9.52 (3/8") ➝ ø 12.7 (1/2")
●
Parts number TA261D-4 001
ø12.7(1/2") ➝ ø 9.52 (3/8")
●
Parts number TA261D-6 002
ø12.7(1/2") ➝ ø 15.88 (5/8")
●
Parts number TA261D-6 003
