System Integration Guide for
SimpliPHI® 6.6 Battery Backup
Packages

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SimpliPHI 6.6 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Briggs & Stratton SimpliPHI 6.6

Summary of Contents for Briggs & Stratton SimpliPHI 6.6

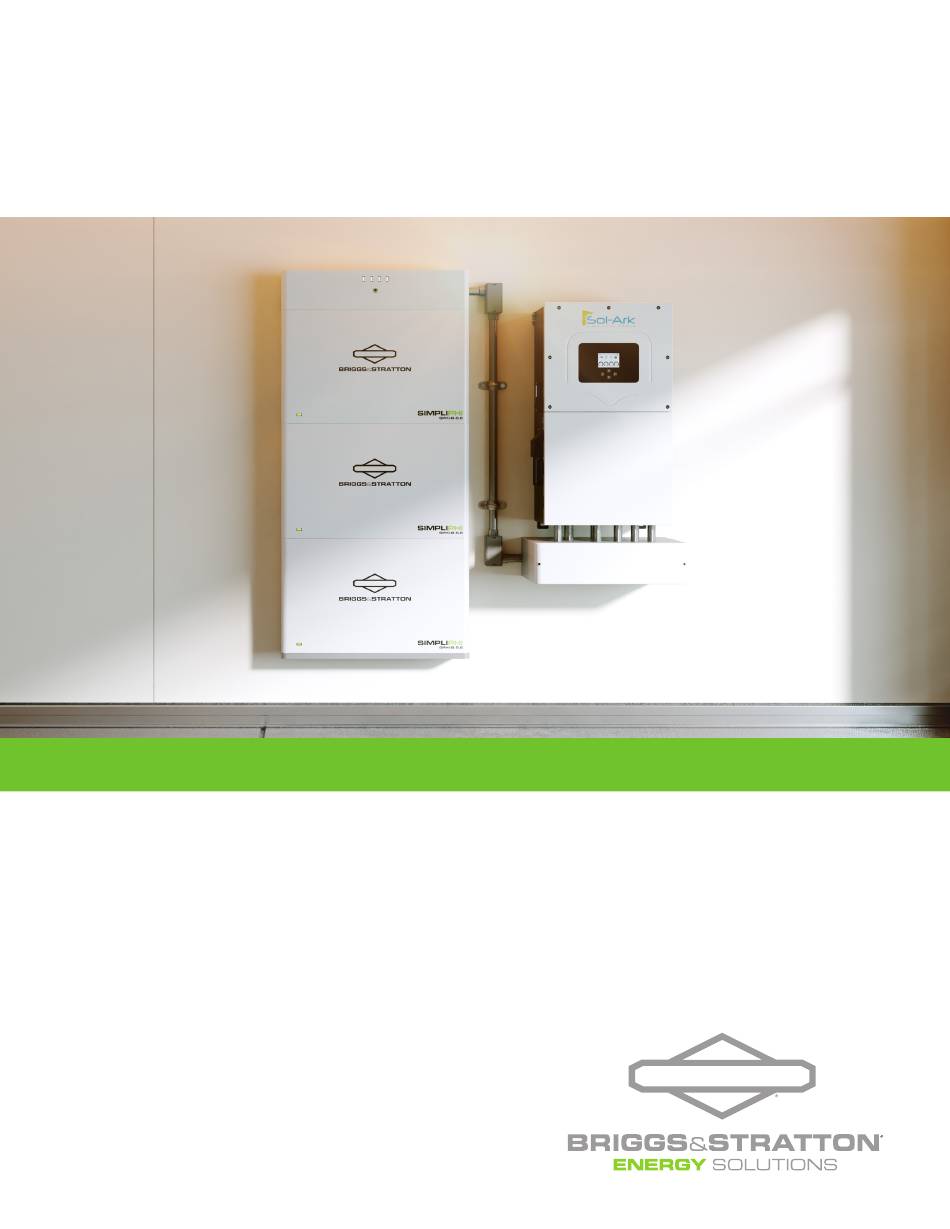

  • Page 1 System Integration Guide for SimpliPHI® 6.6 Battery Backup Packages...
  • Page 2 Last Modified 2024.10.4 This document is intentionally limited in scope so that it can serve as a quick reference guide. More detailed installation and technical information can be found in the linked references and manuals. We encourage installers to be familiar with the product manuals and to consult them as needed. The aim here is to consolidate the most relevant details and to provide instructions on how to appropriately configure the system components for battery backup applications.

  • Page 3: Table Of Contents

    Contents Section 1: Helpful Links and Resources ............... . . Section 2: Checklist of Tools and Common Hardware .

  • Page 4: Section 1: Helpful Links And Resources

    AC Coupling Guide 2. Sol-Ark Warranty Documents: 15K-2P-N-Warranty, 12K-2P-N Warranty, 8K-2P-N Warranty 3. Briggs & Stratton Battery and EnergyTrak Manuals: SimpliPHI 6.6 Battery, EnergyTrak 4. Briggs & Stratton Warranty Documents: Limited Warranty for ESS Products 5. Support: Technical Support Email: ESSTech@BASCO.com...

  • Page 5: Section 3: System Components

    Each SimpliPHI 6.6 Battery Backup Package consists of a 6.6 Battery Stack, EnergyTrak Gateway, and Sol-Ark Inverter. SimpliPHI 6.6 Battery Stack consist of a base unit (floor or wall mount), battery modules and a battery controller. Floor base OR Wall Base...

  • Page 6: Section 4: Installation Location And System Layout

    Section 4 Installation Location and System Layout It is highly advisable to carefully decide on a mounting location and system layout and discuss this layout with homeowners prior to arrival at the jobsite. Achieving a “clean” installation involves careful planning of not just where the battery backup system components are located, but also how conduit will be run to connect them.
  • Page 7 Minimum mounting clearances for inverter, and between battery stacks are shown in the figure below. "Another system" refers to an additional inverter. Sol-Ark 8K and 12K Spacing Sol-Ark 15K Spacing Minimum spacing between parallel battery stacks: 36" Care should be taken to consider space for conduit and cabling. If mounting the system to a wall that uses structural studs, it is helpful to use a stud finder and mark their locations.

  • Page 8: Section 5: Overview Of The Installation Process

    Section 5 Overview of the Installation Process After determining a system location, it can be helpful to create a wall layout using masking tape to mark equipment positions and mounting bracket locations. Installation of the battery backup system generally proceeds through the following stages: The inverter bracket and inverter are mounted to the wall 2.

  • Page 9: Section 7: Mounting The Battery

    (2) load bearing beams, studs, or a solid material, with appropriate fasteners. The wall mount base is designed to hold up to three SimpliPHI 6.6 Modules and one Controller with a combined weight of up to 435 pounds. Mark and pre-drill the holes for the fasteners.
  • Page 10 3. Installing the 6.6 Battery Modules Prior to stacking the battery modules on the base, remove all four of the rear shoulder screws on each module and set them aside to be used to secure the battery modules to the wall brackets. Use the folding handles to lift the battery module onto the base, using the alignment tabs to guide it into position.

  • Page 11: Section 8: Mounting The Energytrak Gateway

    Section 8 Mounting the EnergyTrak Gateway The EnergyTrak gateway enclosure comes with wall mounting tabs. Attach the tabs to the back of the enclosure using the provided stainless steel machine screws. Then mount the gateway on the wall using appropriate fasteners based on the type of mounting surface.

  • Page 12: Managed Power

    Managed Power Whole Home S i m p l i P H I ® 6 . 6 B a t t e r y B a c k u p P a c k a g e s S y s t e m I n t e g r a t i o n G u i d e...
  • Page 13 The 6.6 battery stack controller comes with two dongles, a black one (p/n 80134966) used for connecting it to the gateway and a blue one (p/n 80134942) used for connecting it to Sol-Ark inverters. The battery power cabling and the communications cables can be passed through a single 2”...
  • Page 14 Make sure to use the dongles that are included with the 6.6 controller if using the SimpliPHI 6.6 battery. (Only use the black dongle that comes included with the gateway if you are using AmpliPHI 3.8 or SimpliPHI 4.9 batteries.) Though it is optional, the use of a wire gutter beneath the Sol-Ark inverter can be helpful in simplifying the conduit and wiring process.
  • Page 15 This mobile training wall demonstrates the use of a wire gutter to simplify the process of wiring a Whole-Home battery backup package. On the wall, a 200A meter main and disconnect is shown in the top right and a 200A Load center is shown.
  • Page 16 A single penetration into the gateway is sufficient to run the power cabling, ethernet cable, and battery communications cable. The wiring diagram for the gateway is shown in the figure below and more details can be found in the ET manual linked in Section 1. The gateway power is provided by using 18-22 AWG twisted pair with the included ring terminals to connect the battery.
  • Page 17 S i m p l i P H I ® 6 . 6 B a t t e r y B a c k u p P a c k a g e s S y s t e m I n t e g r a t i o n G u i d e |...

  • Page 18: Section 10: Powering, Configuring, And Commissioning The Inverter

    Section 10 Powering, Configuring, and Commissioning the Inverter After completing all power and communications wiring the inverter needs to be programmed to communicate with the battery stack's controller. The default factory setting on the inverter is to disable the BMS Lithium Batt comms setting.

  • Page 19: Battery Programming

    Battery Programming Many battery settings will automatically populate, though some can still be adjusted. Closed loop communication dictates some of the battery settings in the inverter. The table below lists battery setting recommendations for battery backup. Gray tabs are settings that are set by closed loop communications: Settings →...

  • Page 20: Smart Loads Programming

    Settings → Batt Setup → Discharge Tab Shutdown Low Batt Restart Batt EmptyV 45.0V Batt Resistance 20mOhms / (# of 6.6 Modules) Batt Charge Efficiency BMS_Err_Stop Unchecked Upon reaching the shutdown setpoint, the inverter will stop supporting loads. Setting is also know as Low Battery Cut Out (LBCO) Upon reaching Low Batt setpoint, a low battery alarm will be triggered In a grid down situation in which batteries are charging from solar after a shutdown has been triggered, the loads will remain off until exceeding the Restart Batt SOC %.

  • Page 21: Section 11: Setting Up The Mysolark App And Plant

    Section 11 Setting Up the MySolArk App and Plant Once the inverter has been set up the MySolArk app can be set up. This app gives installers the ability to remotely monitor and remotely configure the inverter. It also gives the Sol-Ark team the ability to see the site details remotely in case a need arises to troubleshoot.
  • Page 22 Once logged in tap “Create Plant” (+) in the top right of the app: Scan the QR code on the Sol-Ark WI-FI dongle Enter the plant information 2. Establish an Internet Connection for the Plant by Entering the WIFI Password (if Not Hard-Wired) Follow the steps below to enter the site’s WI-FI information (This can also be done manually by using your smart phone to connect directly to the WI-FI dongle’s WI-FI direct network (EAP-##### network →...
  • Page 23 After the inverter has been successfully connected to the internet, the user should be able to see live telemetry. It usually takes about 5 minutes for this process to complete. S i m p l i P H I ® 6 . 6 B a t t e r y B a c k u p P a c k a g e s S y s t e m I n t e g r a t i o n G u i d e |...

  • Page 24: Section 12: Commissioning The Battery And Setting Up Energytrak

    Section 12 Commissioning the Battery and Setting Up EnergyTrak The last step in the process is to set up EnergyTrak and commission the battery stack. This will connect the battery system to the internet, giving the system access to remote firmware updates and providing the installer and homeowner with detailed battery information.
  • Page 25 3. Login to the App and Click the "Create New Site" Button 4. Power On the Gateway by Closing the Fuse Holder S i m p l i P H I ® 6 . 6 B a t t e r y B a c k u p P a c k a g e s S y s t e m I n t e g r a t i o n G u i d e |...
  • Page 26 5. Connect Mobile Device to Gateway & Gateway to Internet 6. Update Gateway Software (if App States it is Required) S i m p l i P H I ® 6 . 6 B a t t e r y B a c k u p P a c k a g e s S y s t e m I n t e g r a t i o n G u i d e...
  • Page 27 7. Confirm Installed Equipment is Detected on the “Equipment Details” Screen 8. Select "Inverter Manufacturer" S i m p l i P H I ® 6 . 6 B a t t e r y B a c k u p P a c k a g e s S y s t e m I n t e g r a t i o n G u i d e |...
  • Page 28 9. Add System Owner and Finalize Configuration After the gateway has been successfully connected to the internet and the site has been commissioned, the user should be able to see live telemetry within the EnergyTrak App. It usually takes about 60 minutes for this process to complete.

  • Page 29: Section 13: Monitoring The System With The Mysolark And Energytrak Apps

    Section 13 Monitoring the System With the MySolArk and EnergyTrak Apps The battery backup system can be monitored by the installer and the homeowner through the use of MySolArk and EnergyTrak Apps. Through the use of MySolArk a company can gain access to: •...
  • Page 30 BRIGGS & STRATTON POST OFFICE BOX 702 MILWAUKEE, WI 53201 USA Copyright © 2024 Briggs & Stratton. All rights reserved.
