ID5 DKHSGM
Desk kit with handset, gooseneck microphone and PTT button for an Intercom station of the Indoor
series.

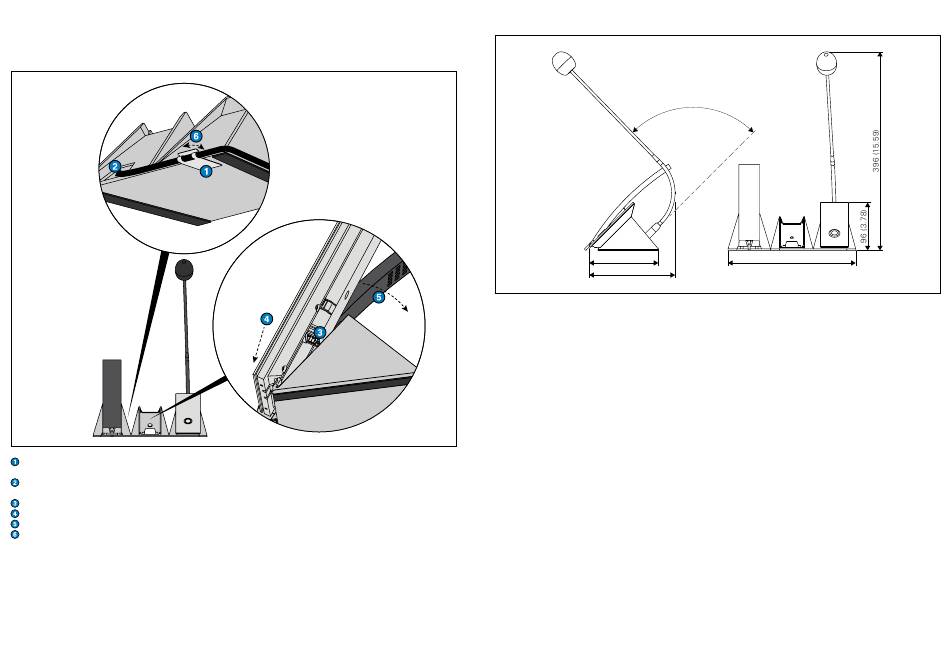

Mounting
Remove the protective film from the adhesive strip and attach the cable clip on the desk kit so that
the cut-out border is aligned with the housing (see illustration above).
Guide the required cables through the opening on the rear of the desk kit (Ethernet cable and
USB cables of the handset and the gooseneck microphone/PPT button).
Connect the cables to the Intercom station.
Place the Intercom station onto the desk kit, lower end first.
Press the Intercom station onto the desk kit until it snaps into place.
Bend open the cable clip, guide the USB cable from the handset through it, then close the cable clip
again to fix the USB cable in place.
Dimensions
Measuring units in mm (in), not to scale!
140 (5.51)
171 (6.73)
NOTE
To prevent overextension and avoid premature wear, the gooseneck must not be bent more than 90°.
max. 90°
255 (10.04)
