Commend EE 380AA Quick Start Manual

2-wire base station EE 380AA, EE 380AC
Connection
Subscriber
Modular socket 8/8
Intercom Server
(not included in extent of supply)
4
/
Plug RJ45 8/4
LS
PWR
B
A
PWR
LS
Extent of supply
• Connection cable 3 m (9.8 ft), pluggable at both sides
• Short reference and operating instructions
Direct dialling button test
Activate direct dialling button test:
• Press and hold button x and then press button 2 .
• All LED buttons are switched to red (EM 302 only) and the display shows "0<-00" .
Execute direct dialling button test:
• Press a direct dialling button.
• In the display, the pressed button and the respective module number are shown (e.g.: 1<-04...first
module, fourth button).
• Press the button again to change the colour to green, then blue and then OFF (cycle).
• The test is cancelled by pressing the button x or automatically after 10 seconds.

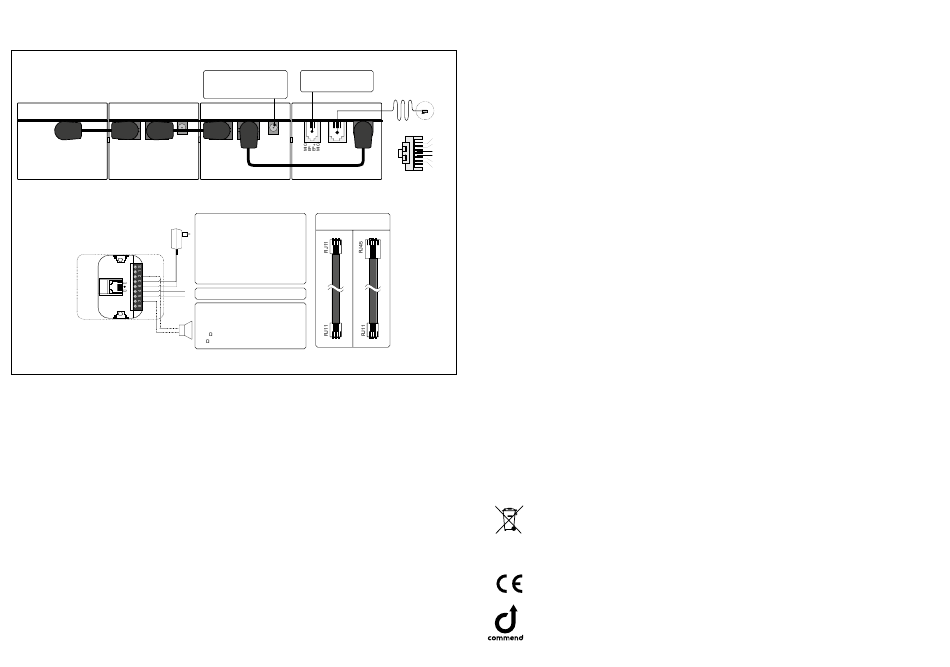

Connection of:
Connection of power supply
headset, headphones or
at the first module:
gooseneck microphone
12 – 24 VAC, 15 VA, or
15 – 35 VDC, 15 W
View from rear of housing
Optional: supply for greater line length
Plug wiring
via subscriber cable
(snapping hooks on bottom)
=> no supply of the modules!
CABD CABD
e.g. plug-in transformer
12 – 24 VAC, 15 VA
15 – 35 VDC, 15 W
In order to supply the EM 30x modules
via the subscriber cable the
EE 380A must be modified!
For detailed modification instructions
please visit www.commend.com
A
Subscriber Intercom Server
B
Attention: for connection of an external
loudspeaker a 6-way intercom cable
is required (Type: X-ASKERJ11)!
External loudspeaker:
50 with supply from Intercom Server
8 external power supply required
CABD CABD
Mounting instructions
• Do not place the device in areas where it may become wet or damp, and avoid particularly dusty,
humid or high-temperature environments.
• Before using the device, ensure all cables are connected correctly and are not damaged.
Safety instructions
• This device shall be installed or replaced by trained and qualified personnel only.
Subscriber
Modular socket 8/8 • Devices belonging to another earthing network must not be connected to the device's connectors.
Intercom Server
(not included in extent of supply)
• All connected circuits shall fulfill the following requirements:
4
/
• Safety Extra Low Voltage (SELV) and Limited Power Source (LPS) according to IEC/EN 60950-1 or
• ES1, PS2 circuits and Annex Q (Limited Power Source) according to IEC/EN/UL 62368-1
Plug RJ45 8/4
• The device is intended for appropriate installation in locations where possible high transient volt-
LS
age surges are not likely to occur.
PWR
B
• Only accessories that comply with the device's technical specifications shall be used.
A
PWR
• The DC power supply of the device must comply with the requirements for LPS (acc. to IEC/
LS
EN 60950-1) or PS2 (acc. to IEC/EN 62368-1) (max. 24 W). If one power supply (> 24 W) is used for
multiple devices, an overcurrent protective device must be installed in each device's supply line.
• Disconnect all cables for any maintenance.
• All changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
• There must be no direct connection to a cable outside of a building.
• When opening the station, ESD precautions must be observed.
• The station may only be opened by authorised service engineers.
Handling
Use the original packaging when transporting the device to prevent damage.
Disposal and recycling
Equipment with this symbol shall not be disposed of together with household or commercial
waste.
The directive 2012/19/EU on waste electrical and electronical equipment (WEEE) is applicable
in the European Union member states.
Manufacturer's reference
This device complies with the European directives listed below by fulfilling corresponding
standards:
• Electromagnetic compatibility (directive 2014/30/EU)
• The restriction of the use of certain hazardous substances in electrical and electronic
equipment (directive 2011/65/EU)
For technical data and configuration, see the respective data sheet.
Keep this description in safe custody.
Type: D-BZ-EE380AAC, Version: 1.1/0923
Optional: supply for greater line length
Plug wiring
via subscriber cable
(snapping hooks on bottom)
=> no supply of the modules!
CABD CABD
e.g. plug-in transformer
12 – 24 VAC, 15 VA
15 – 35 VDC, 15 W
In order to supply the EM 30x modules
via the subscriber cable the
EE 380A must be modified!
For detailed modification instructions
please visit www.commend.com
A
Subscriber Intercom Server
B
Attention: for connection of an external
loudspeaker a 6-way intercom cable
is required (Type: X-ASKERJ11)!
External loudspeaker:
50 with supply from Intercom Server
8 external power supply required CABD CABD
Commend International GmbH, Saalachstraße 51, A-5020 Salzburg – www.commend.com
