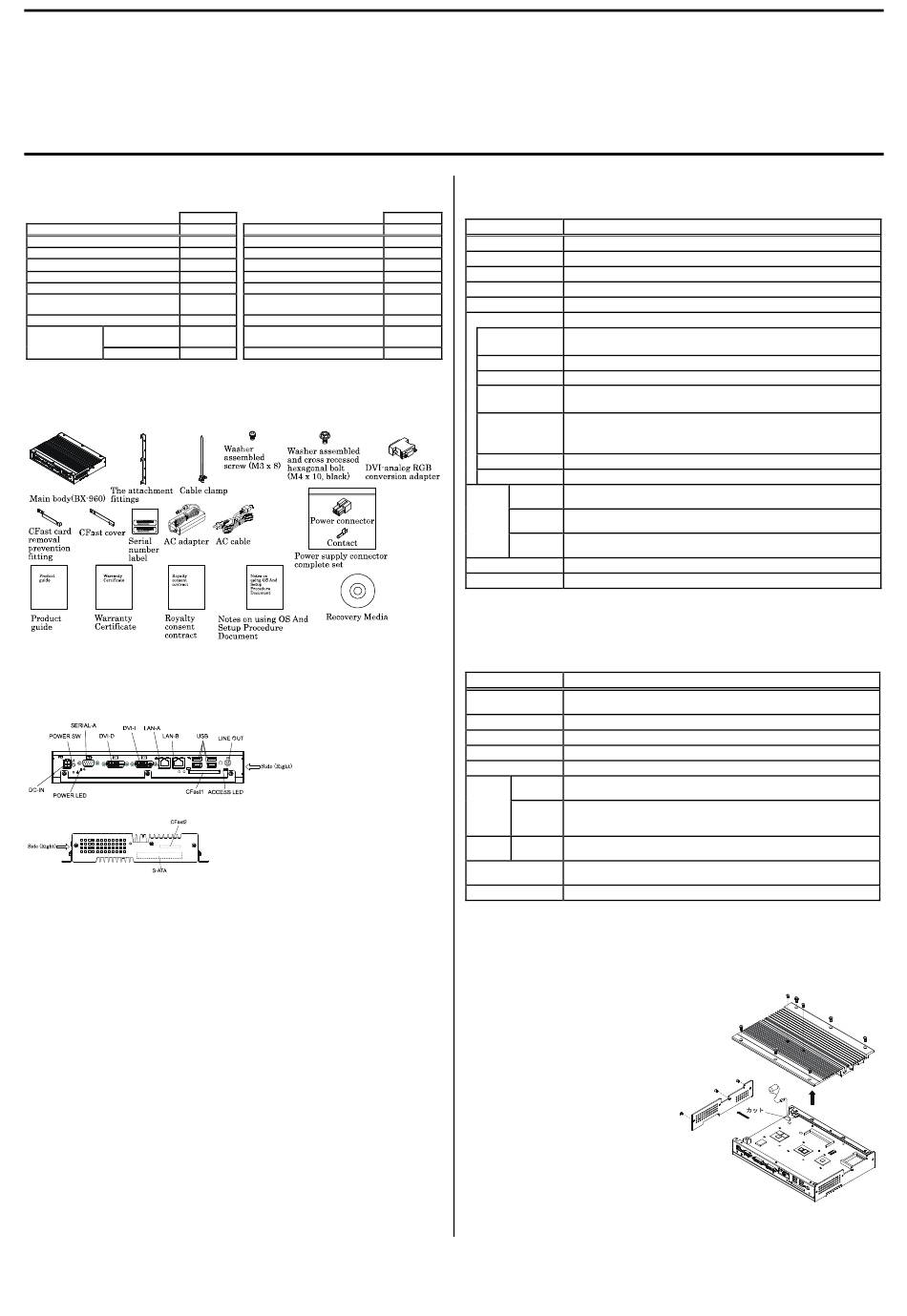

Contec DS-960D-DC7413 Product Manual

Please make sure to read "Precaution List" before using this product to use rightly.
Product Configuration List
DS-960
Name
The main body *1*2
The attachment fittings
CFast card removal prevention fitting
CFast cover
Washer assembled screw (M3 x 8)
Washer assembled and cross recessed
hexagonal bolt (M4 x 10, black)
Cable clamp
Power supply
Power connector
connector complete
set
Contact
*1 Please refer to user's manual of BX-960 from our website in order to know the specification of the main body.
Please refer to user's manual of "PC-SSD16GS-L" in order to know the specification of installed SSD.
*2
This manual is available from DS-960 special page in our website.
Please refer to user's manual of "ACAP12-06" in order to know the specification of an AC adapter.
*3
This manual is available from DS-960 special page in our website.
*4 Do not use this AC power cable with any devices except for an attached AC adaptor.
Inquiry
Contact your retailer
Component Name
Front View
Right Side View
Overview
This is STB for signage, working with dual-core CPU Intel® Core™ i7 processor and high-performance embedded
GPU.
ATI Radeon™ E2400 helps Full-HD movie to be played smoothly. It supports Full-HD output via dual screen. It has
128MB graphic memory. It supports DirectX 10 / Shader Model 4.0. Its UVD(Universal Video Decoder) accelerates
H.264 and VC-1 format movie.
CFast card can be installed as storage. The body is so compact and supports SATA interface which can transport data at
high speed. It enables you to read high-quality movie, store so big data and transport data at high bit rate.
Installed OS
POSReady7
How to Setup
<STEP1> Connect cables.
Connect the cable to the necessary external devices, such as a USB keyboard, a USB mouse and a display.
<STEP2> Turn on the power.
Follow these steps in order to power on. If you find any abnormality after turning on the power, turn it off
and check to see if the setup has been performed properly.
- Make sure that the AC power cable is not plugged into a wall outlet.
- Connect the AC power cable to the connector of AC adaptor.
- Connect the DC cable of AC adaptor to the DC power supply connector of DS-960.
- Plug the AC power cable into a wall outlet.
* This product supports +12VDC power ONLY. Use an attached AC adapter, or prepare other +12VDC
power supply.
<STEP3> OS wakes up.
POSReady7 wakes up automatically after power-in. Other special operation such as switch-on is not
necessary.
Digital Signage Player
(Fan-less, Core-i7 620UE, SSD, Dual DVI-D)
DS-960D-DC7413 Product Guide
CONTEC CO.,LTD.
Pcs. Name
1 AC adapter*3
2 AC cable *4
1 DVI-analog RGB conversion adapter
1 Product guide (this sheet)
7 Warranty Certificate
6 Serial number label
1 Royalty consent contract
Notes on using OS And Setup Procedure
1
Document
4 Recovery Media
Specification
Table1 Functional Specification
DS-960
Model
Pcs.
1
CPU Intel® Core™ i7 Processor 620UE 1.06GHz
1
Chipset Intel® QM57
1
BIOS Manufactured by Insyde
1
1
Memory 4GB, 204pin SO-DIMM socket x 2, PC3-6400(DDR3 800)DDR3 SDRAM
1
Graphic Controller ATI Radeon™ E2400
1 Interface
1 DVI-I x 1 (29-pin DVI-I connector), DVI-D x 1 (25pin DVI-D connector)
Display
DVI-analog RGB conversion adapter is attached
1
Audio HD Audio-compliant, Line-out x 1, 3.5 φ Stereo mini jack, Full-scale output level 1.2Vrms (Typ.)
CFast card slot
2-slots (CFast1 / CFast 2), CFast CARD (Type I) x 2, bootable
1-slot, slot-in system, Corresponding to serial ATA 2.0 standard port,
Serial ATA
SSD is installed (16GB, 1 partition)*1,
2 ports (RJ-45 connectors)
LAN *2
LAN-A: Intel 82577LM controller, LAN-B: Intel 82574L controller
1000BASE-T/100BASE-TX/10BASE-T, Wake On LAN support
USB 4 ports (TYPE-A connector x 4), USB 2.0-compliant
RS-232C 1 port (9-pin D-SUB connector [male]), Baudrate: 50 - 115,200bps
Rated input
12 VDC *3
voltage
Power Range of
10.8 - 13.2VDC
supply input voltage
Power
12V 5.0A (Max.)
consumption
Physical dimensions (mm) 270(W) x 194(D) x 44(H) (No protrusions)
Weight About 2.7kg
*1 The capacity of disk is a value when 1GB is calculated by 1 billion bytes. The capacity that can be recognized from
OS might be displayed fewer than an actual value.
If you use the 1000BASE-T, be careful of the operating temperature referring to "Environment Requirements"
*2
below.
*3 Use a power cable shorter than 3m.
Table2 Environment Requirements
Model
(1) Vertical installation (where left surface is at bottom): 0 - 45℃ (With 1000BASE-T: 0 - 40°C)
Operating temperature *4
(2) Installation other than above: 0 - 40℃(With 1000BASE-T: 0 - 35°C)
Storage temperature -10 - 60°C
Humidity 10 - 90%RH (No condensation)
Floating dust particles Not to be excessive
Corrosive gases None
AC line / ±1kV *5,
Line noise
Signal line / ±1kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
Line-noise
Static
resistance
Contact discharge / ±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level 2),
electricity
Atmospheric discharge / ±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
resistance
Vibration Sweep 10 - 57Hz/semi-amplitude 0.15 mm 57 - 500Hz/2.0G,
resistance resistance 40 min. each in x, y, and z directions (JIS C 60028-2-6-compliant, IEC 60068-2-6-compliant)
10G, half-sine shock for 11 ms in x, y, and z directions
Impact resistance
(JIS C 60068-2-27-compliant, IEC 60068-2-27-compliant)
Grounding Class D grounding (previous class 3 grounding), SG-FG / continuity
For more details on this, please refer to chapter 3, "Installation Requirements" of BX-960 user's manual. This
*4
manual is available from our web site.
*5 When an attached AC adapter is used.
Battery
Battery Specification
This product uses the following battery.
- Type : Lithium primary battery
- Model : BR-1/2AA
- Maker : Panasonic
- Nominal voltage : 3V
- Nominal capacity : 1000mAh
- Lithium content : 1g or less
Disposing the battery
Dispose the removed battery properly in accordance with
local requirements.
DS-960
DS-960
Removing the battery
Remove the battery according to the following figure.
