1.Features
1. Power supply : 12-24V adaptor or 15V1A solar board
2. Build with 18650 mah Lithium Battery
3. Built with motion sensor and microwave sensor
4. Build with 8Ω3W speaker
5. Support change sound file via USB disk
6. Work with a wireless remote control
7. Support to set up play mode on Wechat program ,such as loop play ,single play or timing play !
8. Water proof level : IPX5
9. Volume :8 Levels adjustable
2.Electronic Parameters
Working power
Working current
Audio file format
Sensor range
Voice level
Working temperature
Waterproof level
Playing time
https://www.waytronicmfg.com/
Shenzhen Waytronic Electronics Co., Ltd.

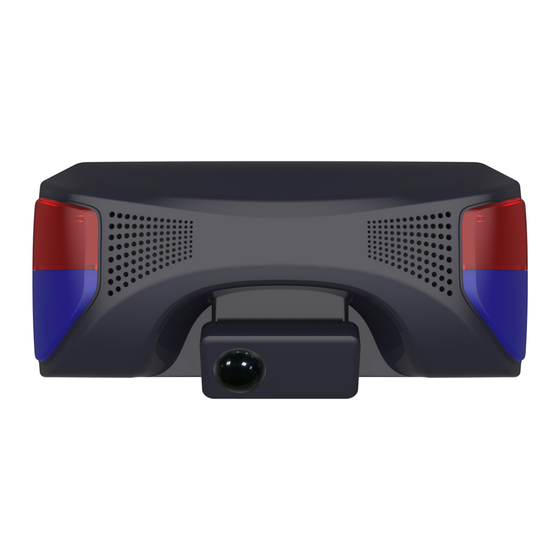

WT-WS2
Motion Sensor Speaker
Stand by mode
Speaker
info@waytronicMFG.com
V1.00
DC12V/2A
7.4V Lithium Battery
Play mode
MP3
8Ω/3W
≥4 meter
≥95dB
0～30℃
IPX5
>10 hours
Model Number No：WT-WS2
≤250UA
≤600mA
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Waytronic WT-WS2
Summary of Contents for Waytronic WT-WS2
- Page 1 Shenzhen Waytronic Electronics Co., Ltd. Model Number No：WT-WS2 WT-WS2 Motion Sensor Speaker V1.00 1.Features 1. Power supply : 12-24V adaptor or 15V1A solar board 2. Build with 18650 mah Lithium Battery 3. Built with motion sensor and microwave sensor 4. Build with 8Ω3W speaker 5.
-
Page 2: Function Guide
Turn off WT-WS2 first, Put MP3 format audio file in USB disk Insert USB disk to USB port Turn on WT-WS2, then it will play a sound ,and then blue indicate light flashes When blue light stop flash ,then done... - Page 3 Shenzhen Waytronic Electronics Co., Ltd. Model Number No：WT-WS2 4.1 Wechat Mini program instruction ： Turn on the Bluetooth and GPS on your phone, and open Wechat ,then slide down and find ‘kingsound ’mini program ,then search the device name ‘LE-WS2’, then enter the password ‘000000’.
- Page 4 4.6：How to change Bluetooth name and Password Press‘Mine ’ and then press ‘Parameters ’,then you are able to change Note：1：Can not change audio file on Mini Program 2：When you set up successfully , just close bluetooth ,then WT-WS2 will work as how you set. https://www.waytronicmfg.com/ info@waytronicMFG.com...
-
Page 5: Installation
WT-WS2 Hose Clamp 6.Attention WT-WS2 has a “no battery” version,Adapter is include in this version Suggestion of install height :1.8---2.5 meters Solar board is better face to South about 15-30 degree When you choose “Adapter” version, please notice waterproof 7.FAQ... -
Page 6: Battery Version
15W Solar board （optional ） Solar board stand （optional ） Indemnification SHENZHEN WAYTRONIC ELECTRONIC CO.,LTD. reserves the right to modify and use information without prior notice to customers. New product specifications will be subject to the latest version. https://www.waytronicmfg.com/ info@waytronicMFG.com...
