1. Features
➢
Support 8~320Kbps MP3 audio format, good sound quality.
➢
Voice changing is convenient, available to use U disk to copy audio file to the internal FLASH.
➢
Support built-in maximum 128M SPI Flash as a carrier of voice storage.
➢
With the function of direction recognition, switching modes freely between no direction recognition and
direction recognition.
➢
Voltage: DC12V.
➢
The off-delay time of relay can be set through config.txt file(0s~99s).
2. Application

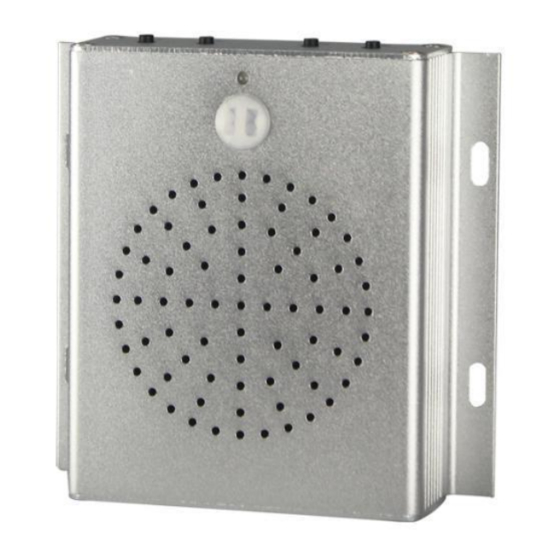

This product is a smart human body induction voice prompter device, with direction recognition, external
device control, external input control function. It can be used in the exhibition hall, corridor, public places,
supermarkets and other welcome or prompt occasions
3. Specification
➢
Working voltage:
➢
Standby current:
Shenzhen Waytronic Electronics Co., Ltd
KingSound
(Human Body Induction and Direction recognition)
DC12V
≤20mA
V2.03
.
1
KingSound V2.03
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Waytronic KingSound
Summary of Contents for Waytronic KingSound
- Page 1 Shenzhen Waytronic Electronics Co., Ltd KingSound V2.03 KingSound (Human Body Induction and Direction recognition) V2.03 1. Features ➢ Support 8~320Kbps MP3 audio format, good sound quality. ➢ Voice changing is convenient, available to use U disk to copy audio file to the internal FLASH.
-
Page 2: Function Panel
Shenzhen Waytronic Electronics Co., Ltd KingSound V2.03 Voice play power consumption: ≤2W ➢ ➢ Load: ≤600W(resistive load) ➢ FLASH capacity: Standard 32Mbit FLASH(customize 64~128Mbit) ➢ The human body induction angle: 30º~60º ➢ Direction recognition distance: ≤ 4 meters ➢ Working temperature: -20℃~35℃... - Page 3 Shenzhen Waytronic Electronics Co., Ltd KingSound V2.03 6. Operation instructions 6.1 Key-press operation Direction recognition mode No direction recognition mode Operation Function Indicator Function Indicator Red light on for 2 Switch to A Red light on for 2 Short press...
- Page 4 Shenzhen Waytronic Electronics Co., Ltd KingSound V2.03 Note: 1. When voice length is more than relay off-delay time, if the time is up, relay will switch off and voice will keep playing until finishing its play. 2. With power on, about one minutes later, it can play voice normally. In the process of powering up, do not align the probe with the heat source or human body, that is, when the red light is off, it can be used normally 3.
-
Page 5: Installation Instructions
Do not install in the place with temperature over 40℃ and large air flow or great temperature variation. Indemnification SHENZHEN WAYTRONIC ELECTRONIC CO.,LTD. reserves the right to modify and use information without prior notice to customers. New product specifications will be subject to the latest version.
