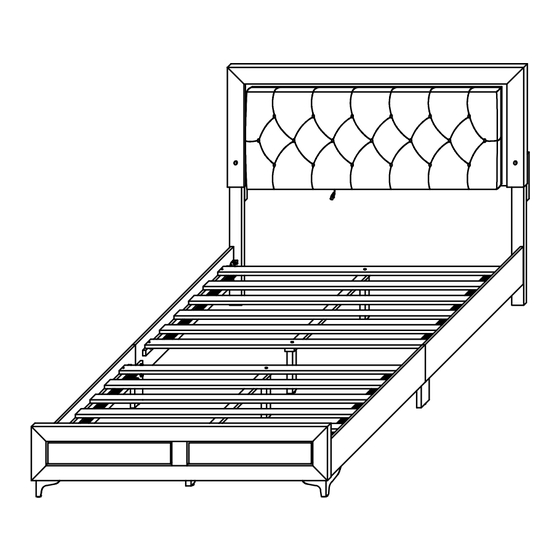

Acme Furniture Celia BD00644Q Assembly Instruction

ASSEMBLY INSTRUCTION FOR ACME FURNITURE
Thank you for purchasing this quality product. Be sure to check all packing material carefully for small
parts which may have come loose inside the carton during shipment. Separate, identify and count all
parts and hardware.Compare with the part list to be sure all parts are present. If any part(s) are
missing or damaged, please contact your local furniture dealer. For efficient and speedy service,
please indicate the model number and code letter of part(s) needed"
"DO NOT TIGHTEN SCREWS UNTIL COMPLETELY ASSEMBLED"
PLEASE READ INSTRUCTION BEFORE STARTING THE ASSEMBLY
HARDWARE LIST
ITEM DESCRIPTION
JCBC SCREW
A
B JCBC SCREW
C JCBC SCREW
JCBC SCREW
D
E JCBC SCREW
F SPRING WASHER
FLAT WASHER
G
SCREW
H
I L - KEY
J L - KEY
PLUG WITH
K
CONNECTOR WIRE
FOOTBOARD METAL
L
SUPPORT LEG
Attention
*** Some number parts listed on the instruction sheet may not be in parts bag as they may already be assembled. Carefully
check parts and packing materials prior to ordering replacements.
MODEL# BD00644Q
DRAWING SIZE
M8 x 16MM
M8 x 20MM
M8 x 25MM
M8 x 35MM
M6 x 50MM
M8 x 14MM
M8 x 22MM
M4 x 32MM
M4 x 65MM
M5 x 65MM
-
-
IMPORTANT:
QTY
ITEM DESCRIPTION
8 PCS
1 HEADBOARD
8 PCS
8 PCS HEADBOARD LEG(R)
2
6 PCS
HEADBOARD LEG(L)
3
4 PCS
4 FOOTBOARD
14 PCS
SIDE RAIL(i)
5
14 PCS
8 PCS
SIDE RAIL(ii)
6
1 PC
7 ROLL SLAT
1 PC
8 CENTRE SUPPORT RAIL
1 PC
9 CENTRE SUPPORT LEG
1 PC
SIDE RAIL SUPPORT LEG
10
PART LIST
DRAWING
QTY
1 PC
1 PC
1 PC
1 PC
2 PCS
2 PCS
2 SETS
2 PCS
4 PCS
2 PCS
Page 1 of 3
