SERVICE MANUAL
EN
83-2052 LENS (ONLY)
12
ITEM PART
NO.
NO.
DESCRIPTION
1
20-3699
SOC. HD. CAP SCREW,
●
10-24 x 1 IN. LONG
2
20-4456
LOCKNUT ....................................... 1
3
—
PIN,
1/8 IN. x 1/2 IN. LONG
♦
4
72-337
NUT, SWIVEL ................................. 1
5
73-50
NIPPLE D.M. .................................. 1
6
83-1355
GAUGE,
7
84-438
CONNECTOR .................................. 1
8
84-321
BONNET ........................................ 1
9
84-322
SCREW .......................................... 1
♦
10
84-323
WASHER ........................................ 1
♦
11
—
STEM ............................................. 1
♦
12
84-325
STEM ASSEMBLY ............................ 1
♦
13
84-326
FOLLOWER .................................... 1
♦
14
— †
DISC.............................................. 2
15
84-330 †
DIAPHRAGM................................... 1
Tighten all flange screws securely BEFORE installing regulator.
●
For remote control only. Not furnished. Please order separately.
77-2011-R9 (8/2024)
MODEL 84-411 FLUID REGULATOR
(5 – 100 PSI)
6
22
**
27
25
11
13
10
3
9
18
8
21
16
14
**
1
*
15
**

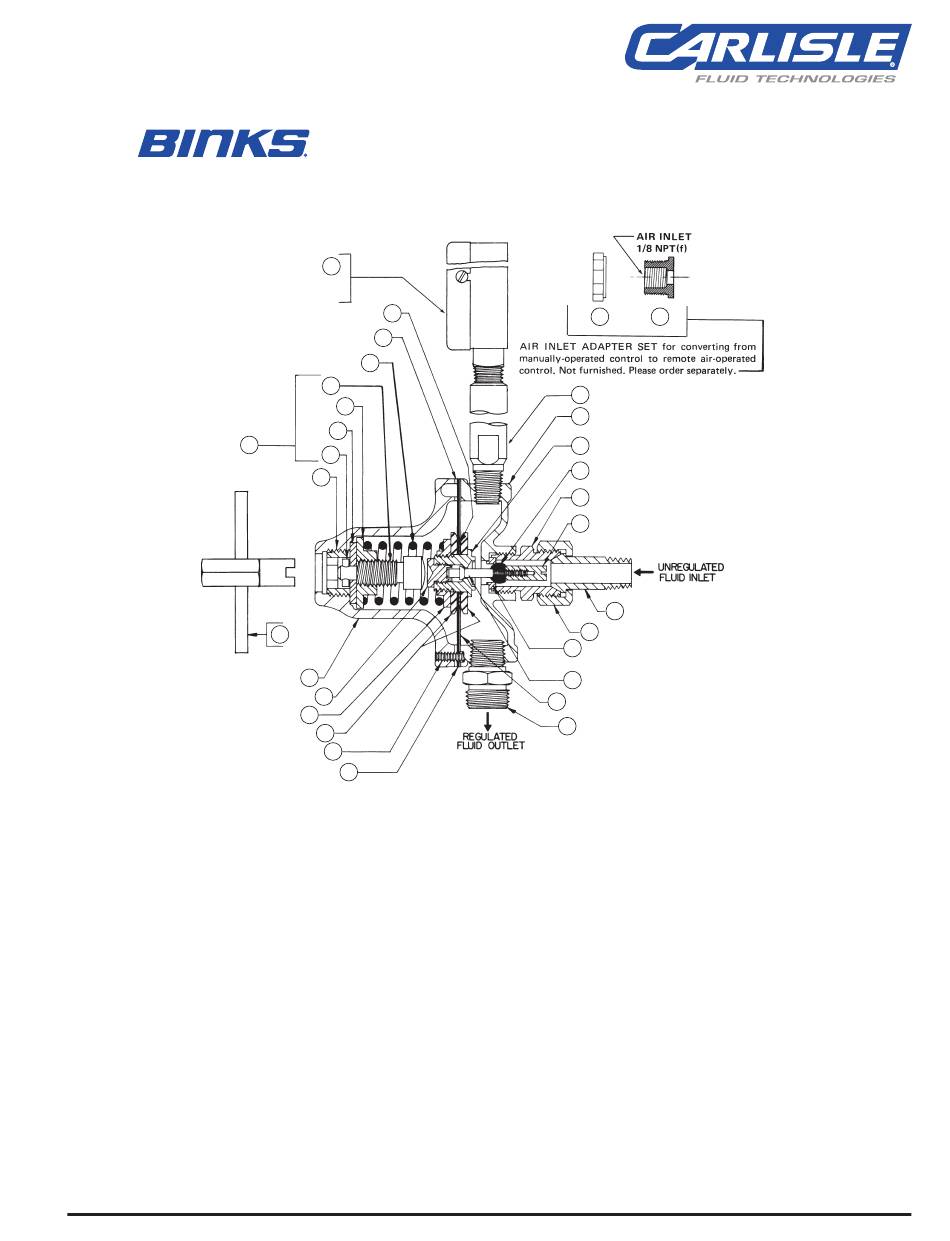

PARTS LIST
When ordering, please specify Part No.
QTY.
.......................... 6
................. 1
............................ 1
5–100 PSI
2
7
19
28
**
30
20
31
17
4
29
* Item to be torqued to
23
35–45 in-lbs
24
**
** Items to be torqued to
150–160 in-lbs
5
ITEM PART
NO.
NO.
DESCRIPTION
16
84-331
NUT............................................... 1
17
84-318
TAILPIECE ..................................... 1
18
84-340
KEY ............................................... 1
♦
19
84-344
BODY ............................................ 1
20
84-337
INLET ............................................ 1
21
84-354
SOCKET ......................................... 1
22
84-388-5 † GASKET ......................................... 1
23
84-395
ROD .............................................. 1
24
84-399 †
DIAPHRAGM................................... 1
25
84-452
SPRING ......................................... 1
♦
26
84-460
BODY ............................................ 1
27
84-463 †
GASKET ......................................... 1
28
84-467 †
RETAINER ...................................... 1
29
84-468 †
SEAT ............................................. 1
30
84-469 †
VALVE ............................................ 1
31
84-470
CAP ............................................... 1
Remove from regulator when converting from manual to remote control.
♦
†
Also available in Repair Kit 6-210. Please order separately.
1 / 4
26
www.carlisleft.com
QTY.
