SERVICE MANUAL
EN
29
DETAIL "A"
10
16
Tighten to 35 –45 inch-pounds.
ITEM
PART
NO.
NO.
DESCRIPTION
QTY.
1
20-3699◆ SOC. HD. CAP SCREW
2
20-4456
LOCKNUT
3
72-337
SWIVEL NUT............................... 1
4
73-50
D. M. NIPPLE .............................. 1
5
83-1636
GAUGE
6
83-2052
GAUGE LENS
7
84-438
CONNECTOR ............................... 1
8
84-321
BONNET ..................................... 1
9
84-322*
SCREW ....................................... 1
10
84-325*
STEM ASSEMBLY ......................... 1
11
84-328
DISC .......................................... 1
12
84-329
DIAPHRAGM ............................... 1
▲■
13
84-331
NUT ........................................... 1
14
84-335
VALVE ........................................ 1
▲
15
84-318
TAIL PIECE ................................. 1
16
84-340*
KEY ............................................ 1
77-1758-R14 (8/2024)

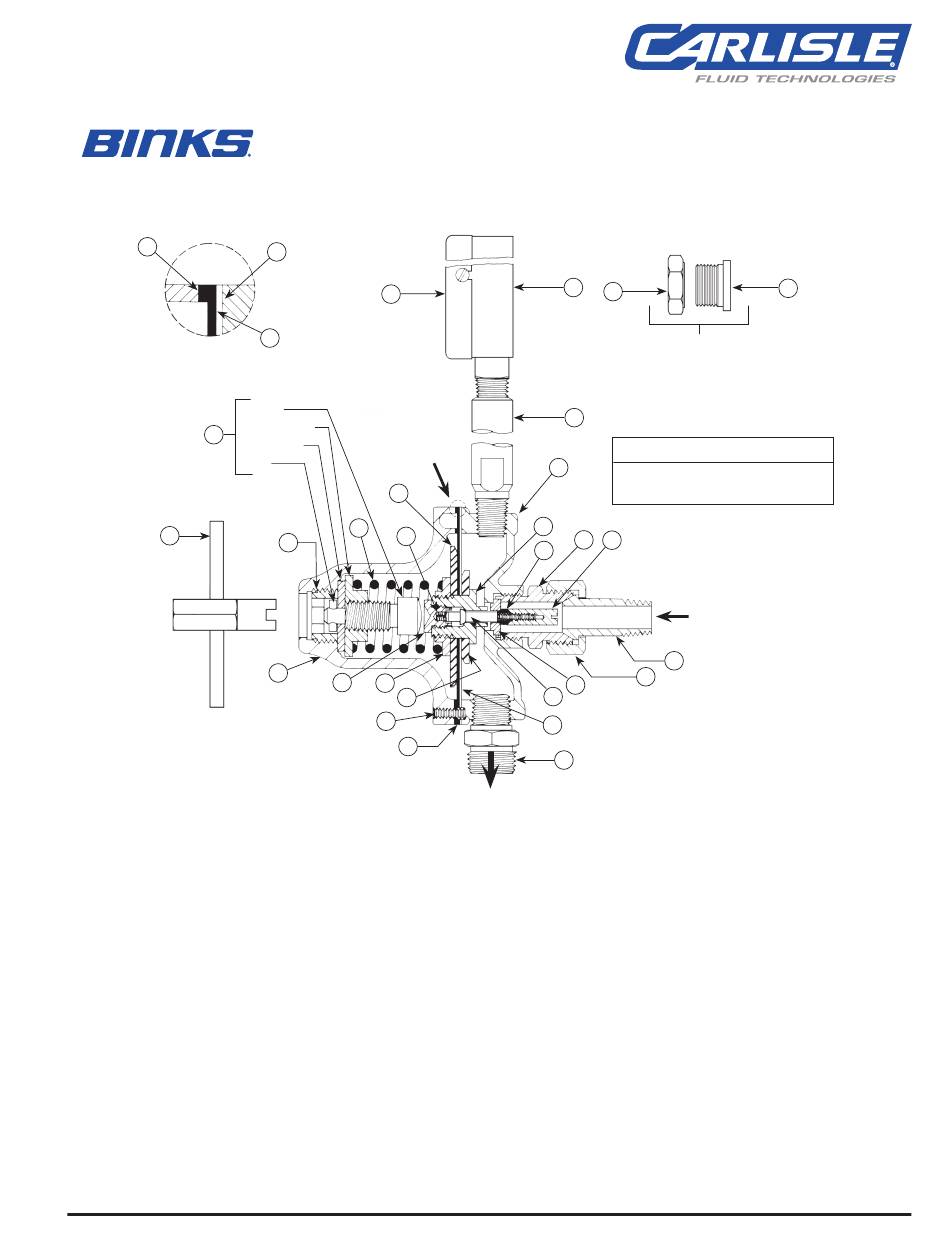

LOW PRESSURE DIAPHRAGM FLUID REGULATORS
WITH ZINC BODY
84-346 KEY OPERATED
26
6
12
STEM
See
FOLLOWER
Detail
WASHER
"A"
PIN
25
17
21
9
8
23
13
11
Item #1 screws:
1
12
PARTS LIST
When ordering, please specify Part No.
.... 6
10-24 x 1"
........................ 1
(84-415)
........................ 1
(0 - 15 PSI)
............. 1
(Replacement)
84-415 REMOTE CONTROL (OBSOLETE)
5
2
FOR MODEL 84-415
7
19
Pre-assemble items 11, 12, 13, 18,
18
20 22
14
3
27
24
26
4
REGULATED FLUID OUTLET
ITEM
PART
NO.
NO.
DESCRIPTION
QTY.
17
84-341*
SPRING ...................................... 1
▲
18
84-327
RETAINER .................................. 1
19
84-344
BODY ......................................... 1
20
84-337
INLET ......................................... 1
21
84-353
SPRING ...................................... 1
▲
22
84-355
CAP ............................................ 1
23
84-393
SOCKET ...................................... 1
24
84-395
ROD ........................................... 1
▲
25
84-398
DISC .......................................... 1
26
84-399
DIAPHRAGM ............................... 1
▲■
27
84-450
SEAT .......................................... 1
▲
28
84-460
BODY
29
84-463
GASKET ...................................... 1
▲■
* Parts used only on Model 84-346 Regulator.
◆ Before installing regulator, tighten all 6 flange screws securely.
▲ Part of Repair Kit No. 84-591.
■ Part of Seal Kit Part No. 84-592.
1 / 4
28
REGULATOR
NOTE
25 and 26 and tighten to
120 – 150 inch-pounds.
UNREGULATED
FLUID INLET
15
.............................. 1
(84-415)
