Dell XPS 17 9720 Manual

Set up your XPS 17 9720

warning NOTE: The images in this document may differ from your computer depending on the configuration you ordered.

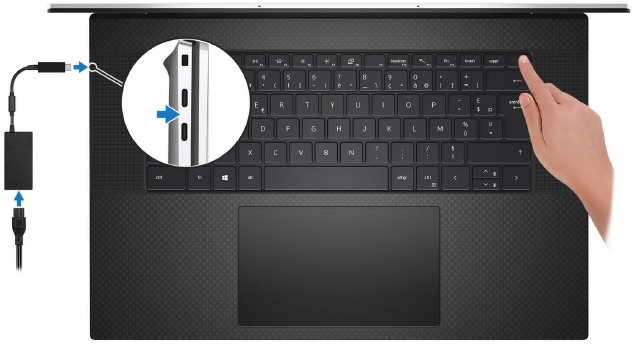

  1. Connect the power adapter and press the power button.
    Set up your XPS 17 9720
    warning NOTE: The battery may go into power-saving mode during shipment to conserve charge on the battery. Ensure that the power adapter is connected to your computer when it is turned on for the first time.
  2. Finish Windows setup.
    Follow the on-screen instructions to complete the setup. When setting up, Dell recommends that you:
    • Connect to a network for Windows updates.
      warning NOTE: If connecting to a secured wireless network, enter the password for the wireless network access when prompted.
    • If connected to the Internet, sign in with or create a Microsoft account. If not connected to the Internet, create an offline account.
    • On the Support and Protection screen, enter your contact details.
  3. Locate and use Dell apps from the Windows Start menu — Recommended.

Table 1. Locate Dell apps

Resources Description
My Dell
Centralized location for key Dell applications, help articles, and other important information about your computer. It also notifies you about the warranty status, recommended accessories, and software updates if available.

SupportAssist
SupportAssist proactively and predictively identifies hardware and software issues on your computer and automates the engagement process with Dell Technical support. It addresses performance and stabilization issues, prevents security threats, monitors, and detects hardware failures. For more information, see SupportAssist for Home PCs User's Guide at www.dell.com/serviceabilitytools. Click SupportAssist and then, click SupportAssist for Home PCs.

warning NOTE: In SupportAssist, click the warranty expiry date to renew or upgrade your warranty.

Dell Update
Updates your computer with critical fixes and latest device drivers as they become available. For more information on using Dell Update, search in the Knowledge Base Resource at www.dell.com/support.
Dell Digital Delivery
Download software applications, which are purchased but not preinstalled on your computer. For more information on using Dell Digital Delivery, search in the Knowledge Base Resource at www.dell.com/support.

Views of XPS 17 9720

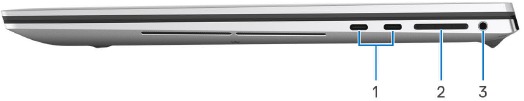

Views - Right

  1. Two Thunderbolt 4 Type-C ports with DisplayPort Alt Mode and Power Delivery
  2. SD-card slot
  3. Universal audio jack

Left

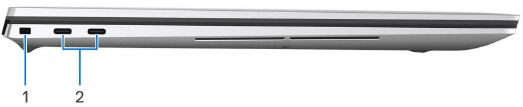

Views - Left

  1. Wedge-shaped lock slot
  2. Two Thunderbolt 4 Type-C ports with DisplayPort Alt Mode and Power Delivery

Top

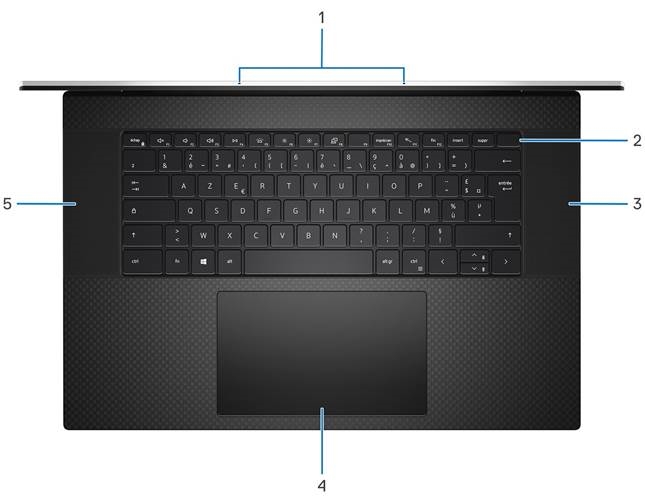

Views - Top

  1. Dual digital-array microphones
  2. Power button
  3. Right speaker
  4. Trackpad
  5. Left speaker

Display

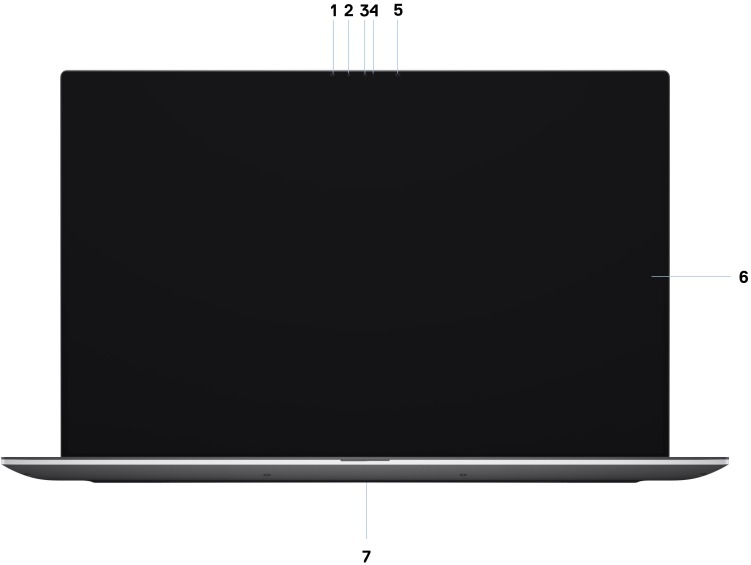

Views - Display

  1. IR LED
  2. Ambient Light Sensor (ALS)
  3. Camera (RGB/IR)
  4. Camera status light
  5. IR LED
  6. Display panel
  7. Power LED indicator

Bottom

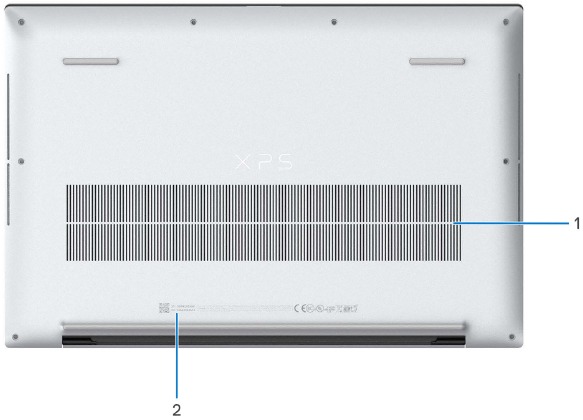

Views - Bottom

  1. Air vents
  2. Service tag label

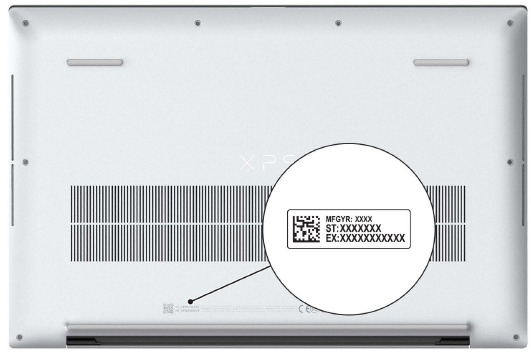

Service Tag

The service tag is a unique alphanumeric identifier that allows Dell service technicians to identify the hardware components in your computer and access warranty information.
Views - Service Tag

Battery charge and status light

The following table lists the battery charge and status light behavior of your XPS 17 9720.

Table 2. Battery charge and status light behavior

Power Source LED Behavior System Power State Battery Charge Level
AC Adapter Off S0 - S5 Fully Charged
AC Adapter Solid White S0 - S5 < Fully Charged
Battery Off S0 - S5 11-100%
Battery Solid Amber (590+/-3 nm) S0 - S5 < 10%
  • S0 (ON) - System is turned on.
  • S4 (Hibernate) - The system consumes the least power compared to all other sleep states. The system is almost at an OFF state, expect for a trickle power. The context data is written to hard drive.
  • S5 (OFF) - The system is in a shutdown state.

Specifications of XPS 17 9720

Dimensions and weight

The following table lists the height, width, depth, and weight of your XPS 17 9720.

Table 3. Dimensions and weight

Description Values
Height:
  • Front height
8.67 mm (0.34 in.)
  • Rear height
13.15 mm (0.51 in.)
Width 374.48 mm (14.74 in.)
Depth 248.08 mm (9.76 in.)

Weight

warning NOTE: The weight of your computer depends on the configuration ordered and manufacturing variability.

  • Minimum: 2.17 kg (4.79 lb)
  • Maximum: 2.57 kg (5.67 lb)

Processor

The following table lists the details of the processors supported by your XPS 17 9720.

Table 4. Processor

Description Option one Option two Option three
Processor type 12th Generation Intel Core i5-12500H 12th Generation Intel Core i7-12700H 12th Generation Intel Core i9-12900HK
Processor wattage 45 W 45 W 45 W
Processor core count 12 14 14
Processor thread count 16 20 20
Processor speed 2.50 Ghz to 4.50 GHz 2.30 GHz to 4.70 GHz 2.50 GHz to 5.00 GHz
Processor cache 18 MB 24 MB 24 MB
Integrated graphics Intel Iris Xe Graphics OR Intel
UHD Graphics
Intel Iris Xe Graphics OR Intel
UHD Graphics
Intel Iris Xe Graphics OR Intel
UHD Graphics

Chipset

The following table lists the details of the chipset supported by your XPS 17 9720.

Table 5. Chipset

Description Values
Chipset Intel Alder Lake H45
Processor 12th Generation Intel Core i5/i7/i9
DRAM bus width 64-bit
Flash EPROM 64 MB
PCIe bus Up to Gen 4.0

Operating system

Your XPS 17 9720 supports the following operating systems:

  • Windows 11 Home, 64-bit
  • Windows 11 Pro, 64-bit
  • Windows 11 Pro National Academic, 64-bit

Memory

The following table lists the memory specifications of your XPS 17 9720.

Table 6. Memory specifications

Description Values
Memory slots Two-SODIMM slots
Memory type Dual-channel DDR5
Memory speed 4800 MHz
Maximum memory configuration 64 GB
Minimum memory configuration 8 GB
Memory size per slot 8 GB, 16 GB, 32 GB
Memory configurations supported
  • 8 GB, 1 x 8 GB, DDR5, 4800 MHz, Non-ECC, single channel
  • 16 GB, 2 x 8 GB, DDR5, 4800 MHz, Non-ECC, dual channel
  • 32 GB, 2 x 16 GB, DDR5, 4800 MHz, Non-ECC, dual channel
  • 64 GB, 2 x 32 GB, DDR5, 4800 MHz, Non-ECC, dual channel

External ports

The following table lists the external ports on your XPS 17 9720.

Table 7. External ports

Description Values
USB ports Four Thunderbolt 4 (USB Type-C) with DisplayPort Alt Mode and Power Delivery
Audio port One universal audio jack
Video port/ports Via Thunderbolt 4 (USB Type-C) ports
Media-card reader One SD 4.0 card slot
Power-adapter port USB Type-C
Security-cable slot One Wedge-shaped lock slot

Internal slots

The following table lists the internal slots of your XPS 17 9720.

Table 8. Internal slots

Description Values
M.2
  • Two M.2 2230/2280 slot for solid-state drive
warning NOTE: To learn more about the features of different types of M.2 cards, search in the Knowledge Base Resource at www.dell.com/support.

Wireless module

The following table lists the Wireless Local Area Network (WLAN) module that is supported on your XPS 17 9720.

Table 9. Wireless module specifications

Description Values
Model number Intel Wi-Fi 6 AX211 (onboard)
Transfer rate Up to 2400 Mbps
Frequency bands supported 2.4 GHz/5 GHz
Wireless standards
  • Wi-Fi 802.11a/b/g
  • Wi-Fi 4 (WiFi 802.11n)
  • Wi-Fi 5 (WiFi 802.11ac)
  • Wi-Fi 6 (WiFi 802.11ax)
  • Wi-Fi 6E (WiFi 802.11ax) is supported only on certain configurations and in certain regions.
Encryption
  • 64-bit/128-bit WEP
  • AES-CCMP
Bluetooth wireless card
  • TKIP
Bluetooth 5.2
warning NOTE: The version of the Bluetooth wireless card may vary depending on the operating system that is installed on your computer.

Audio

The following table lists the audio specifications of your XPS 17 9720.

Table 10. Audio specifications

Description Values
Audio controller Realtek ALC711-CG
Stereo conversion Supported
Internal audio interface SoundWire
External audio interface Universal audio jack
Number of speakers
  • 2 x Woofers
  • 2 x Tweeters
Internal-speaker amplifier Realtek ALC1319D
External volume controls Keyboard shortcut controls
Speaker output:
  • Average speaker output
  • Woofer: 2 x 2 W
  • Tweeters: 2 x 2 W
  • Peak speaker output
  • Woofer: 2 x 2.5 W
  • Tweeters: 2 x 2.5 W
Subwoofer output Not supported
Microphone Dual-array microphones

Storage

This section lists the storage options on your XPS 17 9720.

Your computer supports the following configurations:

  • M.2 2230, solid-state drive
  • M.2 2280, solid-state drive

warning NOTE: This system supports two solid-state drives. Each slot supports a M.2 2230 or M.2 2280 solid-state drive.

The primary drive of your computer varies with the storage configuration.

Table 11. Storage specifications

Storage type Interface type Capacity
M.2 2230, Class 35 solid-state drive PCIe NVMe Gen3 x4 256 GB
M.2 2230, Class 35 solid-state drive PCIe NVMe Gen4 x4 256 GB
M.2 2280, Class 40 solid-state drive PCIe NVMe Gen4 x4

Up to 4 TB

warning NOTE: 4 TB SSD only supported on systems with discrete graphics.

Media-card reader

The following table lists the media cards supported by your XPS 17 9720.

Table 12. Media-card reader specifications

Description Values
Media-card type One SD 4.0 card slot
Media-cards supported
  • Secure Digital (SD)
  • Secure Digital High Capacity (SDHC)
  • Secure Digital Extended Capacity (SDXC)
warning NOTE: The maximum capacity supported by the media-card reader varies depending on the standard of the media card installed in your computer.

Keyboard

The following table lists the keyboard specifications of your XPS 17 9720.

Table 13. Keyboard specifications

Description Values
Keyboard type
  • Backlit
Keyboard layout QWERTY
Number of keys
  • United States and Canada: 79 keys
  • United Kingdom: 80 keys
  • Japan: 83 keys
Keyboard size X=19.05 mm key pitch
Y=18.05 mm key pitch
Keyboard shortcuts

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. To type the alternate character, press Shift and the desired key. To perform secondary functions, press Fn and the desired key.

warning NOTE: You can define the primary behavior of the function keys (F1–F12) changing Function Key Behavior in BIOS setup program.

Camera

The following table lists the camera specifications of your XPS 17 9720.

Table 14. Camera specifications

Description Values
Number of cameras One
Camera type RGB-Ir camera with dual digital-array microphones
Camera location Front camera
Camera sensor type CMOS RGB-Ir hybrid technology
Camera resolution:
  • Still image
0.90 megapixel
  • Video
1280 x 720 (HD) at 30 fps
Infrared camera resolution:
  • Still image
0.92 megapixel
  • Video
640 x 360 at 30 fps
Diagonal viewing angle:
  • Camera
78.5 degrees
  • Infrared camera
78.5 degrees

Touchpad

The following table lists the touchpad specifications of your XPS 17 9720.

Table 15. Touchpad specifications

Description Values
Touchpad resolution:
  • Horizontal
4655
  • Vertical
2731
Touchpad dimensions:
  • Horizontal
149.90 mm (5.90 in.)
  • Vertical
89 mm (3.50 in.)
Touchpad gestures For more information about touchpad gestures available on Windows, see the Microsoft knowledge base article at support.microsoft.com.

Power adapter

The following table lists the power adapter specifications of your XPS 17 9720.

Table 16. Power adapter specifications

Description Values
Type 130 W USB Type-C
Input voltage 100 VAC to 240 VAC
Input frequency 50 to 60 Hz
Input current (maximum) 1.80 A
Output current (continuous)
  • 20 V/6.5 A
  • 5.0 V/1 A
Rated output voltage
  • 20 VDC
  • 5 VDC
Temperature range:
  • Operating
0°C to 40°C (32°F to 104°F)
  • Storage
-40°C to 70°C (-40°F to 158°F)


Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Battery

The following table lists the battery specifications of your XPS 17 9720.

Table 17. Battery specifications

Description Values
Battery type 6-cell, 97 WHr ExpressCharge
Battery voltage 11.40 VDC
Battery weight (maximum) 0.385 kg (0.85 lb)
Battery dimensions:
  • Height
8.45 mm (0.33 in.)
  • Width
69.70 mm (2.74 in.)
  • Depth
330.65 mm (13.02 in.)
Temperature range:
  • Operating
  • Charge: 0°C to 50°C (32°F to 122°F)
  • Discharge: 0°C to 60°C (32°F to 140°F)
  • Storage
–40°C to 60°C (-4°F to 140°F)
Battery operating time Varies depending on operating conditions and can significantly reduce under certain power-intensive conditions.

Battery charging time (approximate)

warning NOTE: Control the charging time, duration, start and end time, and so on using the Dell Power Manager application. For more information on the Dell Power Manager see, Me and My Dell on www.dell.com.

  • Standard charge, 0°C to 50°C (32°F to 122°F): 4 hours
  • ExpressCharge, 0°C to 15°C (32°F to 59°F): 4 hours
  • ExpressCharge, 16°C to 45°C (60.80°F to 113°F): 2 hours
  • ExpressCharge, 46°C to 50°C (114.80°F to 122°F): 3 hours
warning NOTE: Control the charging time, duration, start and end time, and so on, using the Dell Power Manager application. For more information about the Dell Power Manager, see, Me and My Dell on Dell Site.
Coin-cell battery Not supported


Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

Display

The following table lists the display specifications of your XPS 17 9720.

Table 18. Display specifications

Description Option one Option two
Display type Full High Definition Plus (FHD+) Ultra High Definition Plus (UHD+)
Touch options No Yes, 10 finger touch
Display-panel technology Wide Viewing Angle (WVA) with Low Blue Light Wide Viewing Angle (WVA) with Low Blue Light
Display-panel dimensions (active area):
  • Height
366.34 mm (14.42 in.) 366.34 mm (14.42 in.)
  • Width
228.96 mm (9.01 in.) 228.96 mm (9.01 in.)
  • Diagonal
432.00 mm (17 in.) 432.00 mm (17 in.)
Display-panel native resolution 1920 x 1200 3840 x 2400
Luminance (typical) 500 nits 500 nits
Megapixels 2.3 9.2
Color gamut sRGB 100% min Adobe 100% min; DCI-P3 99% typ, 95% min
Pixels Per Inch (PPI) 133 266
Contrast ratio (min.) 1650:1 typical 1600:1 typical
Response time (max.) 35 ms 35 ms
Refresh rate 60 Hz 60 Hz
Horizontal view angle +/- 85 degrees typical +/- 85 degrees typical
Vertical view angle +/- 85 degrees typical +/- 85 degrees typical
Pixel pitch 0.1908 mm 0.0954 mm
Power consumption (maximum) 5.06 W 13.73 W
Anti-glare vs glossy finish Anti-glare Anti-reflective

Fingerprint reader

The following table lists the fingerprint-reader specifications of your XPS 17 9720.

warning NOTE: The fingerprint reader is located on the power button.

Table 19. Fingerprint reader specifications

Description Values
Fingerprint-reader sensor technology Capacitive
Fingerprint-reader sensor resolution 500 dpi
Fingerprint-reader sensor pixel size 108 x 88

Sensor

The following table lists the sensor of your XPS 17 9720.

Table 20. Sensor

Sensor support
Accelerometer (ST Micro LIS2DW12TR): on the base (system board)
ALS for Panel Backlight Control

GPU—Integrated

The following table lists the specifications of the integrated Graphics Processing Unit (GPU) supported by your XPS 17 9720.

Table 21. GPU—Integrated

Controller Memory size Processor
Intel UHD Graphics (Single-channel memory) Shared system memory 12th Generation Intel Core i5/i7/i9 processors
Intel Iris Xe Graphics (Dual-channel memory) Shared system memory 12th Generation Intel Core i5/i7/i9 processors

GPU—Discrete

The following table lists the specifications of the discrete Graphics Processing Unit (GPU) supported by your XPS 17 9720.

Table 22. GPU—Discrete

Controller Memory size Memory type
NVIDIA GeForce RTX 3050 4 GB GDDR6
NVIDIA GeForce RTX 3060 6 GB GDDR6

Multiple display support matrix

The following table lists the multiple display support matrix for your XPS 17 9720.

Table 23. Display support (up to 4K/60 Hz)

Graphics card Direct Graphics Controller Direct Output Mode Supported external displays with computer internal display on Supported external displays with computer internal display off
Intel UHD Graphics (Integrated graphics) N/A 3 4
Intel Iris Xe Graphics
(Integrated graphics)
N/A 3 4
NVIDIA GeForce RTX 3050 N/A 3 4
NVIDIA GeForce RTX 3060 Enabled 4 4

Table 24. Display support (up to 8K/60 Hz)

Graphics card Direct Graphics Controller Direct Output Mode Supported external displays with computer internal display on Supported external displays with computer internal display off
Intel UHD Graphics (Integrated graphics) N/A 1 2
Intel Iris Xe Graphics
(Integrated graphics)
N/A 1 2
NVIDIA GeForce RTX 3050 N/A 1 2
NVIDIA GeForce RTX 3060 N/A 1 2
NVIDIA GeForce RTX 3060 Enabled 2 2

Hardware security

The following table lists the hardware security of your XPS 17 9720.

Table 25. Hardware security

Hardware security
Trusted Platform Module (TPM) 2.0 FIPS 140-2 Certified
Chassis Intrusion Detection
1 wedge-shaped lock slot

Operating and storage environment

This table lists the operating and storage specifications of your XPS 17 9720.

Airborne contaminant level: G1 as defined by ISA-S71.04-1985

Table 26. Computer environment

Description Operating Storage
Temperature range 0°C to 35°C (32°F to 95°F) -40°C to 65°C (-40°F to 149°F)
Relative humidity (maximum) 10% to 90% (non-condensing) 0% to 95% (non-condensing)
Vibration (maximum)* 0.66 GRMS 1.30 GRMS
Shock (maximum) 110 G† 160 G†
Altitude range -15.2 m to 3048 m (-49.9 ft to 10000 ft) -15.2 m to 10668 m (-49.9 ft to 35000 ft)


Operating and storage temperature ranges may differ among components, so operating or storing the device outside these ranges may impact the performance of specific components.

* Measured using a random vibration spectrum that simulates user environment.
† Measured using a 2 ms half-sine pulse.

ComfortView Plus


Prolonged exposure to blue light from the display may lead to long-term effects such as eye strain, eye fatigue, or damage to the eyes.

Blue light is a color in the light spectrum which has a short wavelength and high energy. Chronic exposure to blue light, particularly from digital sources, may disrupt sleep patterns and cause long-term effects such as eye strain, eye fatigue, or damage to the eyes.

The display on this computer is designed to minimize blue light and complies with TÜV Rheinland's requirement for low blue light displays.

Low blue light mode is enabled at the factory, so no further configuration is necessary.

To reduce the risk of eye strain, it is also recommended that you:

  • Position the display at a comfortable viewing distance between 20 and 28 inches (50 and 70 cm) from your eyes.
  • Blink frequently to moisten your eyes, wet your eyes with water, or apply suitable eye drops.
  • Look away from your display, and gaze at a distant object at 20 ft (609.60 cm) away for at least 20 seconds during each break.
  • Take an extended break for 20 minutes every two hours.

Keyboard shortcuts of XPS 17 9720

warning NOTE: Keyboard characters may differ depending on the keyboard language configuration. Keys that are used for shortcuts remain the same across all language configurations.

Some keys on your keyboard have two symbols on them. These keys can be used to type alternate characters or to perform secondary functions. The symbol that is shown on the lower part of the key refers to the character that is typed out when the key is pressed. If you press shift and the key, the symbol that is shown on the upper part of the key is typed out. For example, if you press 2, 2 is typed out; if you press Shift + 2, @ is typed out.

The keys F1-F12 at the top row of the keyboard are function keys for multimedia control, as indicated by the icon at the bottom of the key. Press the function key to invoke the task represented by the icon. For example, pressing F1 mutes the audio (see the table below).

However, if the function keys F1-F12 are needed for specific software applications, multimedia functionality can be disabled by pressing fn + esc. Subsequently, multimedia control can be invoked by pressing fn and the respective function key. For example, mute audio by pressing fn + F1.

warning NOTE: You can also define the primary behavior of the function keys (F1-F12) by changing Function Key Behavior in BIOS setup program.

Table 27. List of keyboard shortcuts

Function key Re-defined key (for multi-media control) Behavior
F1 fn + F1 Mute audio
F2 fn + F2 Decrease volume
F3 fn + F3 Increase volume
F4 fn + F4 Play/Pause
F5 fn + F5

Click keyboard backlight

warning NOTE: Toggle to cycle the keyboard backlight status through off, low-backlight, and highbacklight

F6 fn + F6 Decrease brightness
F7 fn + F7 Increase brightness
F8 fn + F8 Switch to external display
F10 fn + F10 Print screen
F11 fn + F11 Home
F12 fn + F12 End

The fn key is also used with selected keys on the keyboard to invoke other secondary functions.

Table 28. List of keyboard shortcuts

Function key Behavior
fn + B Pause/Break
fn + S Toggle scroll lock
fn + R System request
fn + ctrl Open application menu
fn + esc Toggle fn-key lock
fn + left arrow Home
fn + right arrow End

Getting help and contacting Dell

Self-help resources

You can get information and help on Dell products and services using these self-help resources:

Table 29. Self-help resources

Self-help resources Resource location
Information about Dell products and services www.dell.com
My Dell app
Tips
Contact Support In Windows search, type Contact Support, and press Enter.
Online help for operating system www.dell.com/support/windows
Access top solutions, diagnostics, drivers and downloads, and learn more about your computer through videos, manuals and documents.

Your Dell computer is uniquely identified by a Service Tag or Express Service Code. To view relevant support resources for your Dell computer, enter the Service Tag or Express Service Code at www.dell.com/support.

For more information on how to find the Service Tag for your computer, see Locate the Service Tag on your computer.

Dell knowledge base articles for a variety of computer concerns
  1. Go to www.dell.com/support.
  2. On the menu bar at the top of the Support page, select Support > Knowledge Base.
  3. In the Search field on the Knowledge Base page, type the keyword, topic, or model number, and then click or tap the search icon to view the related articles.

Contacting Dell

To contact Dell for sales, technical support, or customer service issues, see www.dell.com/contactdell.

warning NOTE: Availability varies by country/region and product, and some services may not be available in your country/region.

warning NOTE: If you do not have an active Internet connection, you can find contact information about your purchase invoice, packing slip, bill, or Dell product catalog.

Notes, cautions, and warnings

warning NOTE: A NOTE indicates important information that helps you make better use of your product.


A CAUTION indicates either potential damage to hardware or loss of data and tells you how to avoid the problem.


A WARNING indicates a potential for property damage, personal injury, or death.

Documents / Resources

References

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Dell XPS 17 9720 Manual

Advertisement

Need help?

Need help?

Do you have a question about the XPS 17 9720 and is the answer not in the manual?

Questions and answers

Table of Contents
