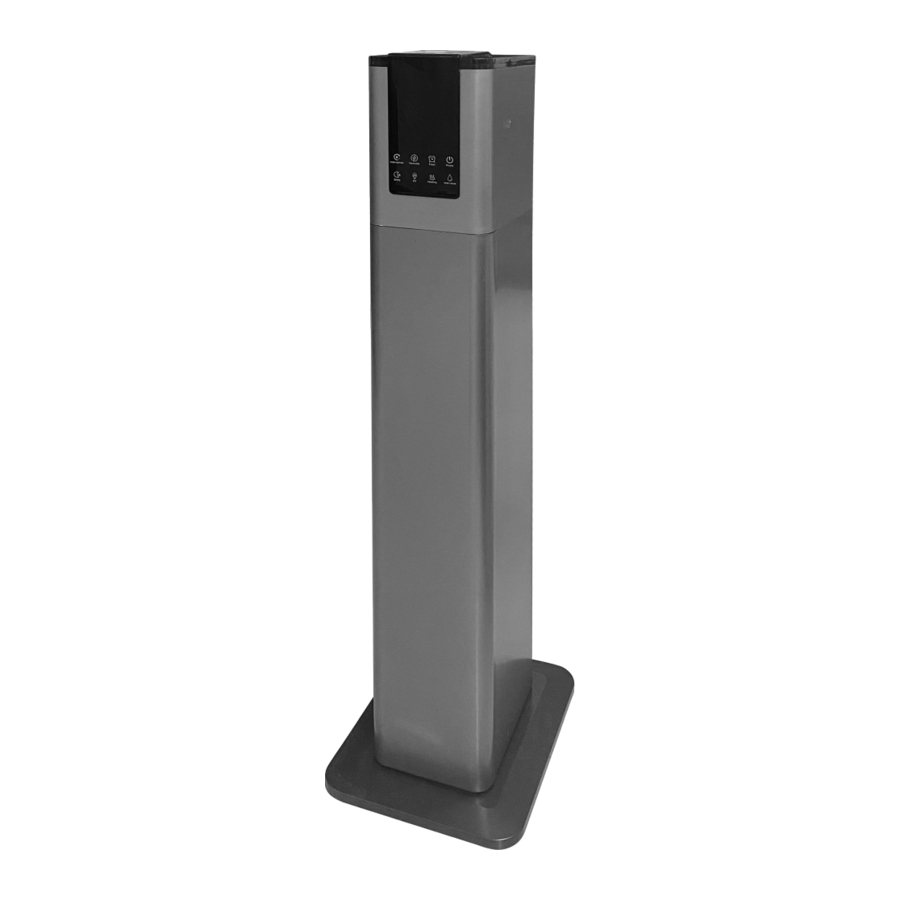

YOKEKON KC-MH-2301W Manual

Components

Placement

Place the humidifier on a level, dry surface that is free from any inclinations. Ensure that it is horizontally positioned at a distance of more than 50 cm from any furniture, walls, appliances, or other items.
Avoid using the humidifier in the following situations to prevent water leakage, signal jamming, damage, or injury:

• In direct sunlight.
• On an unstable platform.
• In high temperatures, humidity, or dust.
• Near heat sources like air conditioners, heaters, stoves, or any other objects that emit heat.
• Near precision instruments like mobile phones, computers, and other electronic devices.
• Near objects that emit radio waves such as radios.
• Under tables, curtains, carpets, bedding, or any other similar objects to avoid dampness.

Please follow these guidelines carefully to ensure the safe and proper operation of your humidifier. If you have any questions or concerns, please refer to the user manual or contact customer support.

Installation

1. Take the main body out of the packaging and remove the remote control and other accessories from the water tank.
2. Before using the remote control, remove the insulating plastic sheet.
3. Before use, please remove the packaging bag of the water pump and check if the water pipe is connected to both ends of the water pump and the main body's interface.
4. Place the main body on the water tank properly.

How to Use

• Before adding water, you must first remove the protective cover on the water pump.
• Make sure to disconnect the power before adding water.

1. Place the machine on a level surface. First, remove the protective cover on the water pump by lifting the machine head. Then, add water to the water tank. There are two ways to add water, as shown in the figures below (Fig. 1 and Fig. 2). Fill the water tank up to the "MAX" mark indicated.

2. Place the machine's base stably on the water tank, and after covering the small cap of the water inlet, plug the power cord of the machine into the socket. Before turning on the power, make sure that the voltage of the machine matches the voltage of the power source being used.
3. When the water level in the machine's water tank is too low, the machine will automatically stop the atomization function and stop working. At the same time, a corresponding water shortage prompt will appear. If you need to add water to the water tank, please unplug the power cord first.

Water Filling & Use of Essential Oil

• Add water slowly from the top without opening the lid.

• Remove the main body and add water to the water tank directly.


• Add water below 40°C to the water tank.
• Distilled water or RO water is recommended.
• Please do not exceed the maximum water mark.
• Please do not allow water to enter the mist outlet, or water may enter the inside and cause the machine to malfunction.
• Please do not add mineral water, plasma water or tap water that has not been used for a long time. If mold or impurities grow, it may cause health problems.
• When the water is insufficient, the machine will prompt water shortage and automatically shut down. Please refill with water and turn it on.
• Regarding water accumulation in the base: The humidifier uses ultrasonic vibration of the misting plate to disperse liquid water into a mist. The water tank is merely a transitional water storage tool, and all humidifiers' base reservoirs will accumulate water. Please use it with confidence.

• To use essential oil, pull out the essential oil box located on the left side of the machine head.
• Place a tissue or sponge underneath before adding essential oil.
• Drip a few drops of it on the cotton to enjoy the fragrance. (DO NOT put too much essential oil, otherwise, the humidifier will crack due to corrosion). Essential oil can only be used inside the essential oil box.
• Turn on the humidifier. The humidifier will automatically diffuse aroma when used.
• Do not put essential oil directly into the water tank or sink, as it may cause water leakage, deformation or failure.
• This humidifier uses a small heat-based aroma diffuser. The aroma is intended to be light.

Control Panel & Remote Control

	After the machine is connected to the power supply, the buzzer will emit a "beep" sound. Then, lightly touch this button, and the display screen will light up, indicating that the machine is in operation with the mist level set to maximum. To turn off the machine, lightly touch this button again.
	Lightly touch this button to select the interval mist mode with the following cycles: mist for 1 minute, stop for 2 minutes; mist for 1 minute, stop for 4 minutes; mist for 1 minute, stop for 6 minutes. To exit the interval mist mode, lightly touch the button again. The display will show the corresponding values: MIN 2-4-6.
	During the operation of the machine, lightly touch this button to activate the constant humidity function. Set the humidity range from 45% to 95% and then exit. Press the button to increase the humidity level by 5% increments. The current operation will be automatically set as the default after 3 seconds. The display will show the corresponding values. The function is initially turned off by default when the machine is powered on.
	During the operation of the machine, lightly touch this button to set the misting time range from 1 to 12 hours. The current operation will be automatically set as the default after 3 seconds. The display will show the corresponding values. The function is initially turned off by default when the machine is powered on.
	In the working state of the machine, lightly touch this button to activate the sleep function. The sleep mode icon will be dimly lit on the screen. Press any button to exit the sleep mode. The sleep mode is set to be off by default when turning on the machine.
	Press and hold the button for about 3 seconds to enable or disable the Child Lock function. The default setting is off when the machine is powered on.
	In the working state of the machine, lightly touch this button to turn the heating function on or off. The corresponding icon will light up or go out accordingly. The heating function is set to be off by default when turning on the machine.
	In the power-on state, press this button to cycle between low mist, medium mist, and high mist settings. The corresponding indicator on the display will light up accordingly.

• Before using the remote control, please remove the insulation plastic sheet.
• Point the infrared emitter of the remote control towards the humidifier's control panel.
• If there is water around the machine during use, it indicates that the room humidity is too high. Please adjust the mist level accordingly.

Maintenance

External

• Clean the external surface of the humidifier 1-2 times a week using a clean cloth to remove dust and dirt.
• If the dirt is stubborn, soak the cloth in a neutral detergent before wiping.
• Make sure the main body is completely dry before use.

Water Sink & tank

• Clean the water sink and tank 1-2 times a week as water can cause minerals and organic matter to accumulate, affecting the function of the humidifier.
• Use a soft cloth or brush to clean the internal surfaces of the sink and tank.
• For stubborn dirt, soak the cloth in white vinegar or baking soda before wiping.

Water Pump

If you notice sediment in the water pipe, you can clean it using a slim brush or contact our customer service to request a replacement. Follow these steps to clean or replace the water pipe:

1. Unplug the water pipe from the humidifier.
2. Clean the water pipe using a slim brush, or replace it if necessary.
3. Reinstall the water pipe by plugging it back into the humidifier.
4. If the water pipe is too long, you can cut it to a suitable length before reinstalling it.

Note:

• Always disconnect the power plug before performing any maintenance on the humidifier.
• Do not directly flush the whole machine with water as this can cause short circuit and failure.
• Use mild detergent and make sure to remove any residue to avoid harm to health.
• If the humidifier will not be used for more than 24 hours, pour out the water from the tank and sink to avoid mold or impurities that may be harmful to health.

FAQ

Q: Why does the humidifier emit mist even when the display is dark?
A: There may be a power issue or the electricity is not connected properly. Reconnect the power supply as a solution. If you are still having problems, please get in touch with our customer care team.

Q: Why is there no mist despite the display lighting up?
A:

1. The water level in the water sink may be excessively high. Drain some water from the water tank or upper sink area before replacing the cover.
2. Is the water pipe loose or disconnected? Please securely fit the water pipe back onto the water pump and the main body's interface.

Q: Why is there so little mist?
A: There could be several reasons, such as unclean water, a dirty atomizer plate, or a clogged air intake. Clean the atomizer plate, replace the water with clean water, and then check if the air inlet is blocked.

Q: Why is there unusual noise?
A: There could be too little water or the humidifier may be placed on an unstable surface. Place the humidifier on a solid and sturdy surface and fill the water tank with water.

Q: Why is there scale in the water sink or tank?
A: Tap water contains minerals that can adhere to objects. Clean the water sink and tank regularly.

Q: Why is there interference with the TV remote control signal?
A: Keep the humidifier 1m away from the TV or other objects that emit radio waves.

Q: Why is the floor wet or there is water around the humidifier?
A: The humidity may be too high or the humidifier may be placed in a non-ventilated place, causing the mist to not fully evaporate.

Q: Why is there white powder around the humidifier?
A: Tap water contains minerals that can adhere to objects. Clean the water tank regularly and keep precision instruments away from the humidifier to avoid damage.

Product Specifications

Safety Guide

• Do not disassemble or modify the machine.
• Do not subject the machine to strong impacts.
• Do not allow liquids such as water or (flammable) detergent to enter the air inlet and outlet to avoid electric shock or fire.
• Do not connect the machine to a socket that exceeds the rated voltage or use an extension cable, as this may cause fire or electric shock.
• Do not unplug the power plug with wet hands, as this may cause electric shock or injury.
• Do not block the outlet or add water to the mist outlet, as this may cause water leakage, deformation, or failure.
• Do not use acidic detergents in the main body, as they may produce toxic gas.
• Do not put essential oil into the main body or water tank, as this may cause water leakage, deformation, or failure.
• Do not turn or move the product if it's filled with water and under working condition.
• Do not remove the main motor when the product is in working condition.
• Do not hit the product with a hard object.
• Do not insert your fingers, water or other objects into the air inlet and outlet.
• Do not use this product near gas appliances, heating devices or stoves.
• Do place the humidifier 2 meters away from furniture and electronic devices.
• Do not use this product in a humid or hot environment such as a bathroom, toilet or kitchen.
• The water temperature inside the tank will heat up during the heater operation of the warm mist function. Please don't touch it directly as there is a risk of burns.

Attention

Please check that the plug and power cord are intact to avoid the risk of electric shock.

Do not immerse the product in water or any other liquids, and do not touch the machine with wet hands to prevent electrical leakage accidents.

Keep the power cord away from heat sources.

Ensure that the power source is properly grounded and the local voltage matches the voltage indicated on the product.

This product is for household use only; do not use it outdoors.

Avoid placing the product on a hot surface.

When discarding the product, it is recommended to cut off the power cord. Also, take similar precautions for any parts that may pose a danger, especially those that could be hazardous to children.

If the product malfunctions, please stop using it immediately and disconnect the power. Contact the after-sales team by email.

If the power cord or plug of the product is damaged or if the product has been dropped on the ground, do not continue using it. If the power cord is damaged, please contact the after-sales team for assistance.

Keep this product out of reach of children and individuals with impaired abilities. Children and individuals with impaired abilities should use this product under adult supervision.

Always disconnect the power before cleaning the product.

Do not modify the product, and nonprofessional repair personnel are prohibited from disassembling or repairing it, as it may result in fire, electric shock, or injury accidents.

Please feel free to contact us via E-mail: service@yokekon.com
