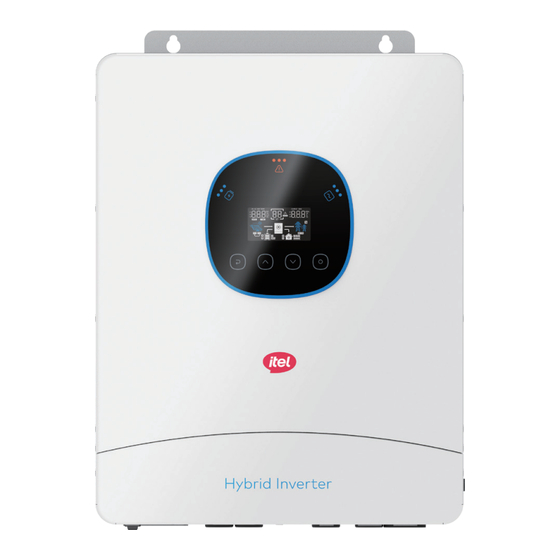

Itel ESS IPV-4K24U User Manual

Itel ESS IPV-4K24U User Manual

Hybrid inverter

Advertisement

Quick Links

USER GUIDE
Hybrid Inverter
IPV-4K24U
IPV-6K48U
itel ESS
Solar inverter
One-Stop Residential Energy
Storage Solution
ess.itel-life.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the ESS IPV-4K24U and is the answer not in the manual?

Questions and answers

Shaban
May 16, 2025

Tell me this fault battery error then solar and wapda light shutdown

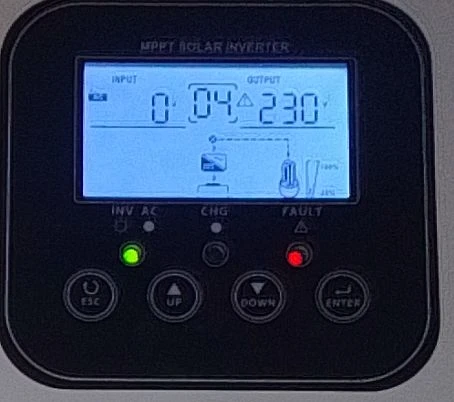

User image 6827aba246c60
1 comments:
Mr. Anderson
May 22, 2025

A fault battery error in the Itel ESS IPV-4K24U during solar and WAPDA light shutdown may be caused by one or more of the following:

1. Battery voltage too high – Check if the battery specifications and quantity meet the system requirements.
2. Communication loss with BMS – Ensure communication cables are properly connected.
3. Battery not allowed to discharge or charge – Verify BMS status and permissions.
4. Firmware mismatch – Confirm that all inverter firmware versions are the same.
5. Internal sensor failure – Example: DC/DC current sensor failure.

If the problem remains after checking these, contact the installer or repair center.

This answer is automatically generated

Summary of Contents for Itel ESS IPV-4K24U

  • Page 1 USER GUIDE Hybrid Inverter IPV-4K24U IPV-6K48U itel ESS Solar inverter One-Stop Residential Energy Storage Solution ess.itel-life.com...
  • Page 2 Contents ABOUT THISMANUAL ABOUT THIS MANUAL Purpose Purpose This manual describes the assembly, installation, operation, warning code and fault code of this Scope unitPlease read this manual carefully before installations and operations. Keep this manual for future Safety instructions reference. WARNING MARKS INTRODUCTION Scope...
  • Page 3 Itel hybrid inverter Itel hybrid inverter WARNING MARKS INTRODUCTION Mark Name Instruction Abbreviation Serious physical injury or even death may occur if not Danger Danger Physical injury or damage to the device may occur if not Warning Warning Electrostatic Forbid sensitive followed.
  • Page 4 Itel hybrid inverter Itel hybrid inverter PRODUCT OVERVIEW SPECIFICATIONS Line Mode Specifications Model IPV-4K24U IPV-6K48U 4000VA 6000VA Rated Output Power 4000W 6000W Nominal DC Input Voltage Input Voltage Waveform Sinusoidal (utility or generator) Nominal Input Voltage 230Vac Low Line Voltage Disconnect 90Vac 3V(For Home Appliances)170Vac 3V(For Computers) ±...
  • Page 5 Itel hybrid inverter Itel hybrid inverter Utility Charge Mode Specifications Inverter Mode Specifications Utility Charge Mode Specifications Model Model IPV-4K24U IPV-4K24U IPV-6K48U IPV-6K48U Model IPV-4K24U IPV-6K48U Nominal Input Voltage 4000VA 6000VA 230Vac Rated Output Power Nominal Input Voltage Input Voltage Range...
  • Page 6 Itel hybrid inverter Itel hybrid inverter INSTALLATION Safety Guidance Parallel communication Warning marks inform users of conditions which can cause serious physical Injury or death, or Expansion bolt x 3 WiFi module x 1 O-shaped terminal x 2 connector x 1pcs damage to the device.
  • Page 7 Itel hybrid inverter Itel hybrid inverter Connect the positive and negative battery wires to the following positions Open the duct paper window and and tighten the nuts loosen the nut Sealthe duct paper to prevent airleakage (Do not take out the nut, loosen it )
  • Page 8 Itel hybrid inverter Itel hybrid inverter 3. Insert AC input wires according to polarities indicated on terminal block and tighten the terminal 5. Make sure the wires are securely connected. screws. Be sure to connect PE protective conductor ( ) first.
  • Page 9 Itel hybrid inverter Itel hybrid inverter connectors. Then, connect positive pole (+) of connection cable to positive pole (+) of PV input Wiring System for Inverter connector. Connect negative pole (-) of connection cable to negative pole (-) of PV input connector 3.
  • Page 10 Itel hybrid inverter Itel hybrid inverter Dry Contact Signal Dual Output Description IPV-6K48U/IPV-4K24U only has one inverter output interface.However, it can achieve dual output function by controlling external Contactor through dry contact. Wiring...
  • Page 11 Itel hybrid inverter Itel hybrid inverter OPERATION LED Indicator Power ON/OFF Charging the battery, the LED light flash. Battery lf battery is full, the LED light will always-on. The battery is not charged, the LED light will go out. Utility Inverter running in utility mode, the LED will always-on.
  • Page 12 Itel hybrid inverter Itel hybrid inverter LCD operation flow chart Output Information OUTPUT BMS Indicate output voltage, output frequency, load percent, load in VA, load in Watt and discharging current. Battery Information Setting page Indicates battery level by 0-24% 25-49% 50-74%and75-100%.
  • Page 13 Itel hybrid inverter Itel hybrid inverter PV voltage / Output voltage PV power / Output voltage Battery voltage / Discharging current Date PV voltage is 360V, output voltage is 230V PV power is 3.00kW output voltage is 230V Battery voltage is 50.0V, discharging current...
  • Page 14 Itel hybrid inverter Itel hybrid inverter Default lf the battery type is lithium battery, Protocol 01. the set value will change to SOC. Setting range is from 10% to 100% Default 24V model If"self-defined”or “Lib” is selected in Max charging...
  • Page 15 Itel hybrid inverter Itel hybrid inverter Default Utility >> PV >> Battery Disable Utility provides power to the loads first. PV and battery will provide power to loads only when utility is not available. Over temperature If it is enabled, the inverter will auto restart function PV >>...
  • Page 16 Itel hybrid inverter Itel hybrid inverter Energy stored data Page Default In performance mode, the inverter will perform at its highest performance. The energy stored data will be switched by pressing "UP" or "DOWN" key. The selectable information is switched as below order:...
  • Page 17 Itel hybrid inverter Itel hybrid inverter BMS information Page Rated information Page The BMS information will be switched by pressing "UP" or "DOWN" key. The selectable information The rated information will be switched by pressing "UP" or "DOWN" key. The selectable information...
  • Page 18 Itel hybrid inverter Itel hybrid inverter Lithium Battery Communication 4.Power up lithium battery and inverter.Wait a moment, if the communication is built between them, LCD will show you "BMS" icon as below. It is allowed to connect lithium battery and build communication only which it has been configured .
  • Page 19 Itel hybrid inverter Itel hybrid inverter 3.Package Contents In parallel kit, you will find the following items in the package: Parallel communication cable x 1pcs Parallel communication connector x 1pcs 4.Wiring Connection This installation steps are only applied to 6K model.
  • Page 20 Itel hybrid inverter Itel hybrid inverter...
  • Page 21 Itel hybrid inverter Itel hybrid inverter 5.LCD Setting and Dispaly Setting Program Single When the units are used in parallel with single phase, please select“PAL”in program Parallel 20.lt is required to have at least three inverters or maximum twelve inverters to support three-phase equipment.
  • Page 22 Itel hybrid inverter Itel hybrid inverter NOTE:Master and slave units are randomly defined. Warning Code Table Step4: Switch on all AC breakers of Line wires in AC input. lt's better to have all inverters connect to utility at the same time.
  • Page 23 Itel hybrid inverter Itel hybrid inverter Restart the unit if the error happens again please return to Over current happen at PV Restart the unit if the error happens again please return to Output voltage is too high repair center.
